Photodiodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Wavelength | Color - Enhanced | Spectral Range | Diode Type | Responsivity @ nm | Response Time | Voltage - DC Reverse (Vr) (Max) | Current - Dark (Typ) | Active Area | Viewing Angle | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFBR-S4N66C013SENSOR PHOTODIODE 420NM 32UBGA |
220 |
|
- |
AFBR-S4N | 32-UBGA | Bulk | Obsolete | 420nm | Ultraviolet (UV) | 300nm ~ 900nm | - | - | - | 26.9 V | 1.3µA | 36mm² | - | -40°C ~ 85°C | - | - | Surface Mount |
|
02A6A-163-XMDBOARD MOUNT OPTICAL SENSOR |
300 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AFBR-S4K33C0147LSENSOR PHOTODIODE 430NM 12WFBGA |
104 |
|
Datasheet |
AFBR-S4K | 12-WFBGA, CSPBGA | Bulk | Obsolete | 430nm | - | - | Avalanche | - | - | 30.25 V | 207nA, 913nA, 1.8µA | 9mm² | - | -40°C ~ 60°C | - | - | Surface Mount |
|
|
02A4A-142-XMDBOARD MOUNT OPTICAL SENSOR |
83 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EOPD-525-0-2.25-1PHOTODIODE 525NM GAP TO39 FLAT L |
30 |
|
Datasheet |
EOPD-525 | TO-39-2 Metal Can | Bag | Active | 525nm | Green | 480nm ~ 560nm | Planar Diffusion | 0.08 A/W @ 525nm | - | - | 5pA | 5mm² | - | -40°C ~ 125°C | - | - | Through Hole |
|
|
FND-100GHSENSOR PHOTODIODE 850NM TO5 |
156 |
|
Datasheet |
FND-100 | TO-5 | Box | Active | 850nm | Ultraviolet (UV) | 400nm ~ 1150nm | PIN | 0.6 A/W @ 850nm | 1ns | 150 V | 10nA | 5.1mm² | - | -40°C ~ 125°C | - | - | Through Hole |
|
RD07SENSOR PHOTODIODE 900NM 3MM TO8 |
79 |
|
Datasheet |
- | TO-8 | Tray | Active | 900nm | - | - | - | 0.55 A/W @ 900nm | 1.5ns | - | 200pA | 7.1mm² | - | -40°C ~ 100°C | - | - | Through Hole |
|
PIN-005D-254FSENSOR PHOTODIODE 254NM TO5 |
41 |
|
Datasheet |
- | TO-5 Variant, 2 Leads, Lens Top Metal Can | Tray | Active | 254nm | Ultraviolet (UV) | - | Planar Diffusion | 0.025 A/W @ 550nm | 100ns | - | - | 5.7mm² | - | 0°C ~ 70°C | - | - | Through Hole |
|
RD15SENSOR PHOTODIODE 15MM RAD DET |
96 |
|
Datasheet |
- | - | Case | Active | - | - | - | - | - | - | - | - | - | - | -40°C ~ 100°C | - | - | - |
|
RD100ASENSOR PHOTODIODE 950NM 6NS |
32 |
|
Datasheet |
- | - | Case | Active | 950nm | - | - | - | 0.6 A/W @ 900nm | 6ns | - | 2nA | 100mm² | - | -20°C ~ 60°C | - | - | Through Hole |
|
A5C-35SENSOR PHOTODIODE ARRAY-35 ELEM |
83 |
|
Datasheet |
Multi-Element Array | Array - 35 Element | Case | Active | - | - | - | Planar Diffusion | 0.65 A/W @ 970nm | - | - | 50pA | 3.9mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|

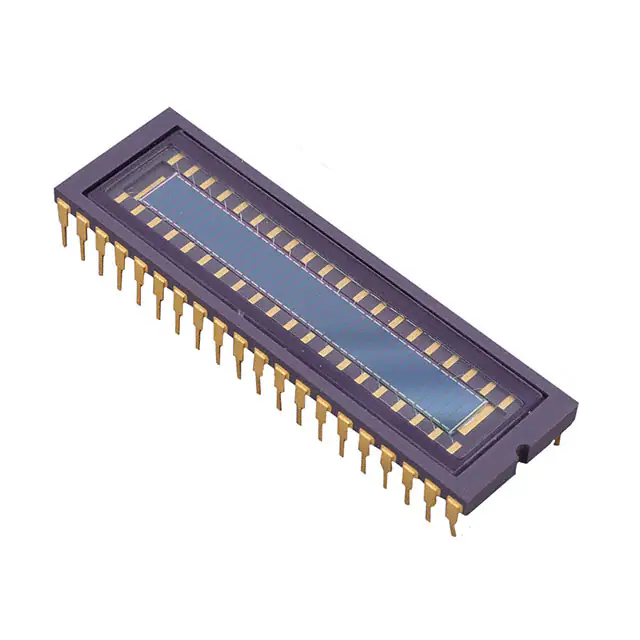

A5C-38SENSOR PHOTODIODE ARRAY-38 ELEM |
33 |
|
Datasheet |
Multi-Element Array | Array - 38 Element | Case | Active | - | - | - | Planar Diffusion | 0.65 A/W @ 970nm | - | - | 50pA | 3.9mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
PIN-4X4DSENSOR PHOTODIODE 850NM 48CLCC |
33 |
|
Datasheet |
4X4D | 48-CLCC | Tray | Active | 850nm | - | - | - | - | - | - | - | 1.96mm² | - | -20°C ~ 60°C | - | - | Surface Mount |
|
PIN-10AP-1SENSOR PHOTODIODE 100MM MODULE |
28 |
|
Datasheet |
- | Module | Canister | Active | - | - | - | - | - | - | - | - | - | - | 0°C ~ 70°C | - | - | Panel Mount |
|
A2V-76SENSOR PHOTODIODE 970NM ARR-76EL |
32 |
|
Datasheet |
Multi-Element Array | Array - 76 Element | Case | Active | 970nm | - | - | Planar Diffusion | 0.50 A/W @ 970nm | - | - | - | 1.8mm² | - | -30°C ~ 85°C | - | - | Through Hole |
|
SC-25DSENSOR PHOTODIODE 670NM RADIAL |
50 |
|
Datasheet |
- | Radial | Canister | Active | 670nm | - | - | - | 0.42 A/W @ 670nm | 5µs | - | 100nA | 350mm² | - | 0°C ~ 70°C | - | - | Through Hole |
|
QSE773E3R0SENSOR PHOTODIODE PIN |
82,480 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T1170P-SD-FSENSOR PHOTODIODE 920NM DIE |
200 |
|
Datasheet |
T1170P | Die | Sheet | Active | 920nm | - | 600nm ~ 1040nm | PIN | - | 100ns | 60 V | 1nA | 0.88mm² | 120° | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
T1110P6-SD-FSENSOR PHOTODIODE 940NM DIE |
200 |
|
Datasheet |
T1110P6 | Die | Tray | Active | 940nm | - | 430nm ~ 1100nm | PIN | - | 100ns | 60 V | 2nA | 7.5mm² | 120° | -40°C ~ 100°C (TA) | - | - | Surface Mount |
|
|
PD1sM TO-46 with UV-glass windowSENSOR PHOTODIODE 200-1100nm TO |
36 |
|
Datasheet |
- | TO-46-2 Metal Can | Bulk | Active | - | - | 170nm ~ 1100nm | - | 0.73 A/W @ 930nm | - | 10 V | 12pA | 1mm² | - | - | - | - | Through Hole |
