Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Actuator Type | Switch Function | Functions, Extra | Output | Voltage - Supply | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Resistance | Mounting Type | Termination Style | Operating Temperature | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60C22-M7-4-040CSWITCH JOYSTICK FLATTED 10MA 5V |
0 |
|
Datasheet |
60C | Bulk | Active | Joystick, 3 - Axis | Flatted (3.18mm Dia) | 360° Rotational, 4-Way Directional, Center Select | - | Digital (Schmitt Trigger) | 5VDC | 10mA (DC) | - | 5 V | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 85°C | Circular - 22.58mm Dia | - | - |
|
68B-625-4SWITCH JOYSTICK PADDLE HALL EFF |
21 |
|
Datasheet |
68B | Bulk | Active | Joystick, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 85°C | Rectangular - 35.81mm x 21.34mm | IP67 - Dust Tight, Waterproof | Red Actuator |
|
04J-AS-C01SWITCH NAV CONICAL 2A 115V |
9 |
|
Datasheet |
04J | Bulk | Active | Navigation Switch, 2 - Axis | Conical | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 2A (AC/DC) | 115 V | 28 V | Nickel | Gold | - | Panel Mount | Solder Lug | -55°C ~ 85°C | - | IP68 - Dust Tight, Waterproof | - |
|
04J-AS-T01SWITCH NAVIGATION CASTLE 2A 115V |
2 |
|
Datasheet |
04J | Bulk | Active | Navigation Switch, 2 - Axis | Castle | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 2A (AC/DC) | 115 V | 28 V | Nickel | Gold | - | Panel Mount | Solder Lug | -55°C ~ 85°C | - | IP68 - Dust Tight, Waterproof | - |
|

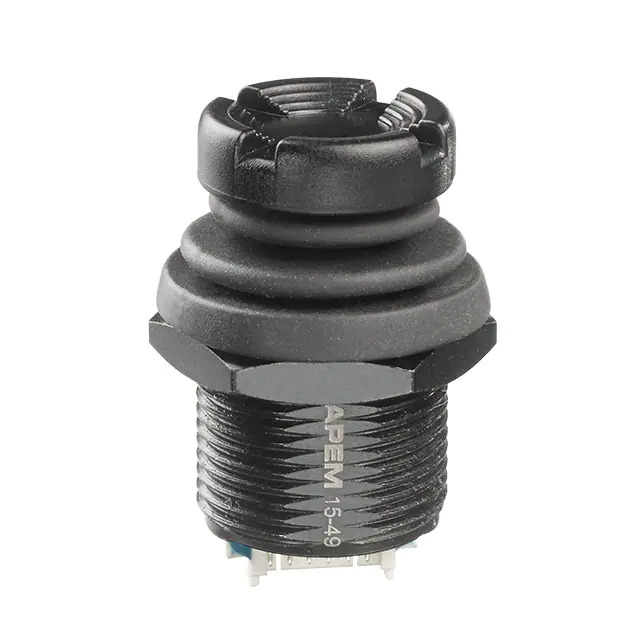

NVH1D1C0CP2SSWITCH THUMBSTCK CASTLE 50MA 12V |
17 |
|
Datasheet |
NV | Tray | Active | Thumbstick, 2 - Axis | Castle | 4-Way Directional | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | - | Panel Mount | Connector | -40°C ~ 65°C | Circular - 16.20mm Dia | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - |
|

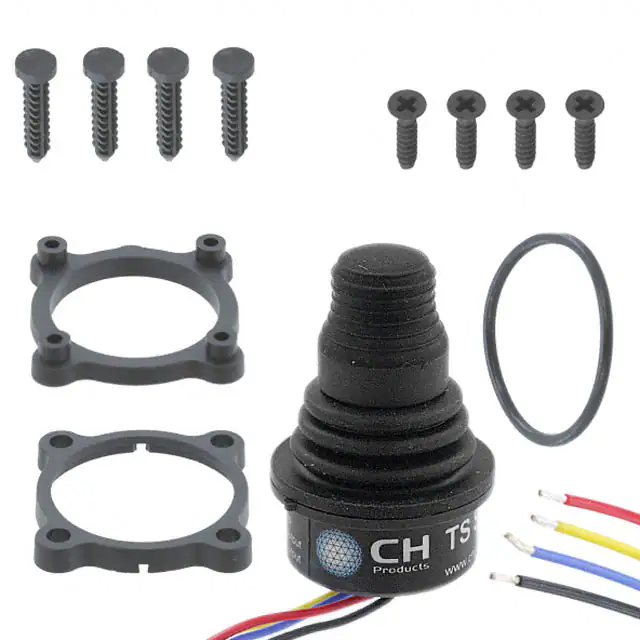

TS4A1S00ASWITCH THUMBSTCK FINGER TIP HALL |
17 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 2 - Axis | Finger Tip | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|

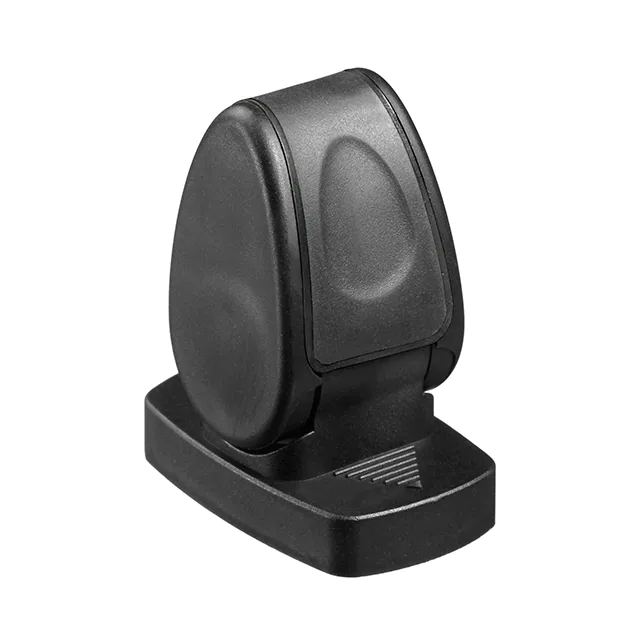

BL140A01BKBK0000SWITCH JOYSTICK PADDLE HALL |
20 |
|
Datasheet |
BL | Bulk | Active | Joystick, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -25°C ~ 70°C | Rectangular - 21.00mm x 7.00mm | IP67 - Dust Tight, Waterproof | - |
|

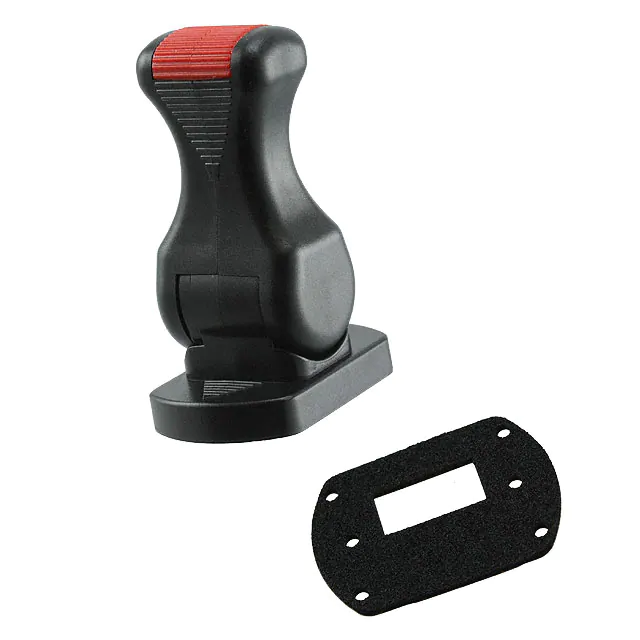

BF140A01RE0000SWITCH JOYSTICK PADDLE HALL |
10 |
|
Datasheet |
BF | Bulk | Active | Joystick, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -25°C ~ 70°C | Rectangular - 21.00mm x 10.00mm | IP67 - Dust Tight, Waterproof | Red Actuator |
|
HS6T24SASWITCH THMBSTK PUSHBTN 100MA 30V |
25 |
|
Datasheet |
HS | Bulk | Active | Thumbstick, 2 - Axis | Pushbutton | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 100mA (DC) | - | 30 V | - | Silver | - | Panel Mount | Wire Leads with Connector | -25°C ~ 80°C | Circular - 25.02mm Dia | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
4R182S1E5500SWITCH JOYSTICK ANALOG |
3 |
|
Datasheet |
4000 | Bulk | Active | Joystick, 1 - Axis | Joystick | 2-Way Directional | - | Analog (Resistive) | - | - | - | - | - | - | 5 kOhms | Panel Mount | Wire Leads | -20°C ~ 55°C | Circular - 23.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
HF50S10SWITCH JOYSTICK HALL EFFECT |
19 |
|
Datasheet |
HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP67 - Dust Tight, Waterproof | - |
|
HF55S10SWITCH JOYSTICK HALL EFFECT |
8 |
|
Datasheet |
HF | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 2 Pushbuttons | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP67 - Dust Tight, Waterproof | - |
|
3J2215-G2-C3AWSWITCH JOYSTICK DIGITAL |
12 |
|
Datasheet |
3J | Bulk | Active | Joystick, 3 - Axis | Joystick | 360° Directional, 360° Rotational, Center Select | 6 Pushbuttons | Digital (Mechanical Switch) | - | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 85°C | - | IP6K7 - Dustproof, Waterproof | - |
|
CJ-N3DP0013NSWITCH JOYSTICK HALL EFFECT |
17 |
|
Datasheet |
CJ | Bulk | Active | Joystick, 2 - Axis | Joystick | 4-Way Directional | 3 Pushbuttons, Deadman | Digital (Hall Effect Over USB Interface) | 5VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 70°C | Circular - 57.15mm Dia | IP67 - Dust Tight, Waterproof | - |
|
HG-44MIS000-U-2655SWITCH JOYSTICK HALL EFFECT |
13 |
|
Datasheet |
HG | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 360° Directional | 4 Pushbuttons, 4-Way Thumbstick, Index Trigger | Digital (Hall Effect Over USB Interface) | 5VDC | - | - | - | - | - | - | Panel Mount | Cable with Connector | -25°C ~ 70°C | Circular - 71.40mm Dia | IP65 - Dust Tight, Water Resistant | - |
|
|
2434804-1SWITCH NAVIGATION DGTL 50MA 12V |
225 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Navigation Switch, 2 - Axis | Plunger for Cap | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 50mA (DC) | - | 12 V | - | - | - | Surface Mount | J Lead | -40°C ~ 85°C | - | IP40 | - |
|
COM-16273SWITCH JOYSTICK ANALOG |
70 |
|
Datasheet |
- | Bulk | Active | Joystick, 2 - Axis | Joystick | 4-Way Directional, Center Select | - | Analog (Resistive) | - | - | - | - | - | - | 10 kOhms | Through Hole | PC Pin | -10°C ~ 70°C | - | - | - |
|
|
5001SWITCH NAV SCROLL WHEEL 1MA 10V |
98 |
|
- |
- | Bulk | Active | Navigation Switch, 2 - Axis | Scroll Wheel | 360° Rotational, 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 1mA (DC) | - | 10 V | - | - | 300 Ohms | Through Hole | PC Pin | 0°C ~ 40°C | - | - | - |
|
890003-0001SWITCH THUMBWHEEL ROCKER DIGITAL |
36 |
|
Datasheet |
SR3 | Box | Active | Thumbwheel, 1 - Axis | Rocker | 2-Way Directional | - | Digital (Mechanical Switch) | - | - | - | - | - | - | - | Panel Mount | Bare PCB | -35°C ~ 70°C | - | IP65 - Dust Tight, Water Resistant | Gray Actuator |
|

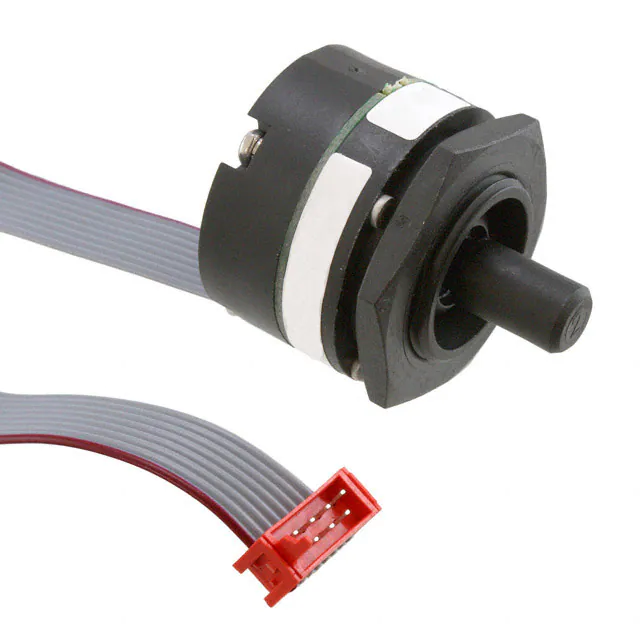

60A18-8-060CSWITCH JOYSTICK FLATTED 6" CBL |
10 |
|
Datasheet |
60A | Bulk | Active | Joystick, 3 - Axis | Flatted (6.35mm Dia) | 360° Rotational, 8-Way Directional, Center Select | - | Digital (Mechanical Switch, Pulse) | 5VDC | 10mA (DC) | - | 5 V | Silver (Ag) | Phosphor Bronze | - | Panel Mount | Cable with Connector | -40°C ~ 85°C | Circular - 17.25mm Dia | - | - |
