Navigation Switches, Joystick
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Actuator Type | Switch Function | Functions, Extra | Output | Voltage - Supply | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Contact Material | Contact Finish | Resistance | Mounting Type | Termination Style | Operating Temperature | Panel Cutout Dimensions | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8G5022C0106SWITCH THUMBWHEEL ROCKER HALL |
10 |
|
Datasheet |
AR5 | Box | Active | Thumbwheel, 1 - Axis | Rocker | 2-Way Directional | - | Analog (Hall Effect) | - | - | - | - | - | - | - | Panel Mount | - | -40°C ~ 85°C | Rectangular - 36.80mm x 22.80mm | IP67 - Dust Tight, Waterproof | - |
|

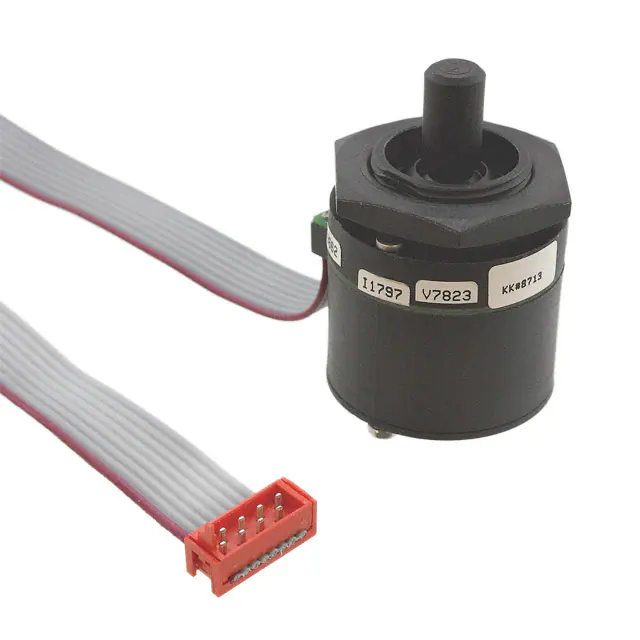

60AD18-8-M-060CSWITCH JOYSTICK FLATTED 10MA 5V |
22 |
|
Datasheet |
60AD | Bulk | Active | Joystick, 3 - Axis | Flatted (6.35mm Dia) | 360° Rotational, 8-Way Directional, Center Select | - | Digital (Mechanical Switch, Pulse) | 5VDC | 10mA (DC) | - | 5 V | - | - | - | Panel Mount | Cable with Connector | -40°C ~ 85°C | Circular - 17.25mm Dia | - | - |
.jpg)
|
HRS202B7SWITCH THUMBWHEEL HALL EFFECT |
18 |
|
Datasheet |
HR | Bulk | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads with Connector | -30°C ~ 70°C | - | IP68 - Dust Tight, Waterproof | - |
|

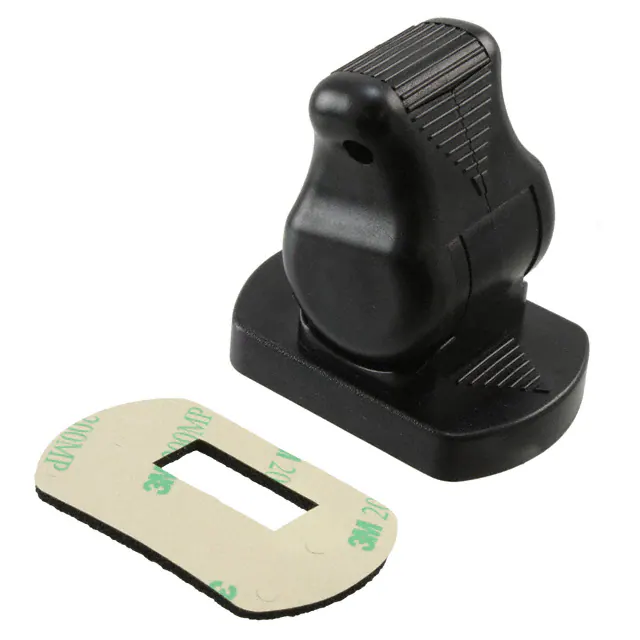

BD150D02BK1200SWITCH JOYSTICK PADDLE HALL |
16 |
|
Datasheet |
BD | Bulk | Active | Joystick, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -25°C ~ 70°C | Rectangular - 21.00mm x 10.00mm | IP67 - Dust Tight, Waterproof | Switching Points ± 12.5° |
|

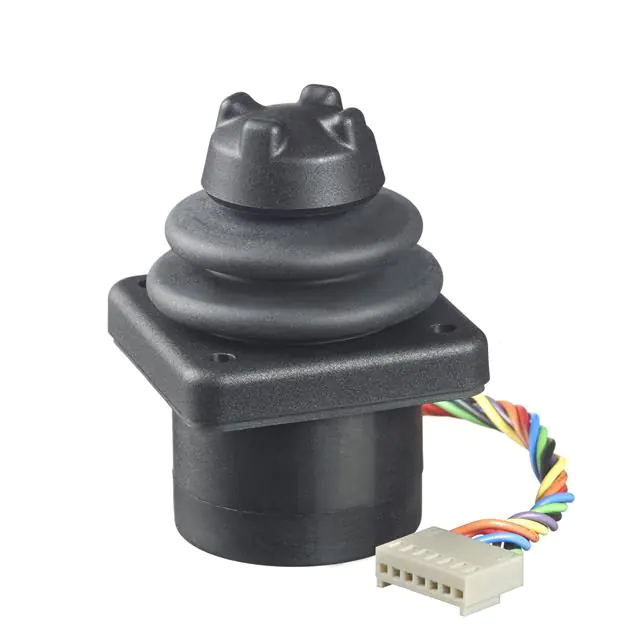

XS140SCA12A62000SWITCH THUMBSTICK CASTLE HALL |
23 |
|
Datasheet |
XS | Box | Active | Thumbstick, 2 - Axis | Castle | 4-Way Directional | - | Analog (Hall Effect) | 0 ~ 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads with Connector | -30°C ~ 85°C | Circular - 39.00mm Dia | IP66 - Dust Tight, Water Resistant | Black Actuator |
|

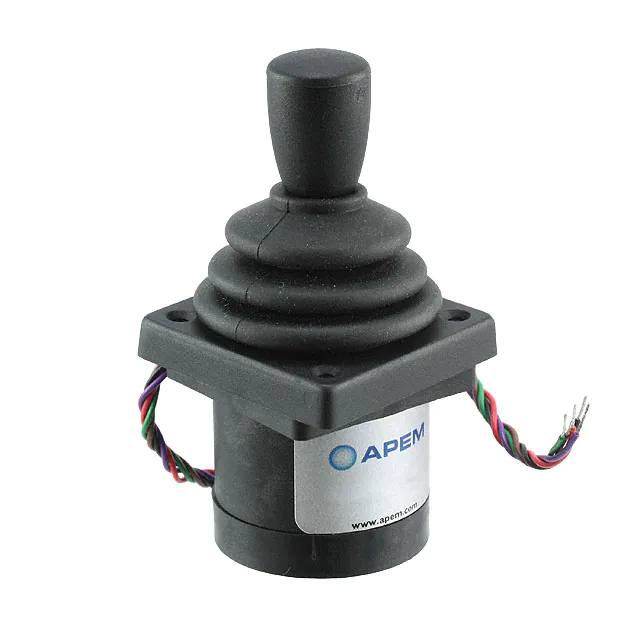

8BE2SE-65-249SWITCH JOYSTICK DGTL 1A 125V |
17 |
|
Datasheet |
8000 | Bulk | Active | Joystick, 2 - Axis | Joystick | 8-Way Directional | - | Digital (Mechanical Switch) | - | 1A (AC) | 125 V | - | - | Gold | - | Panel Mount | Wire Leads | -25°C ~ 80°C | Circular - 41.00mm Dia | IP65 - Dust Tight, Water Resistant | - |
|

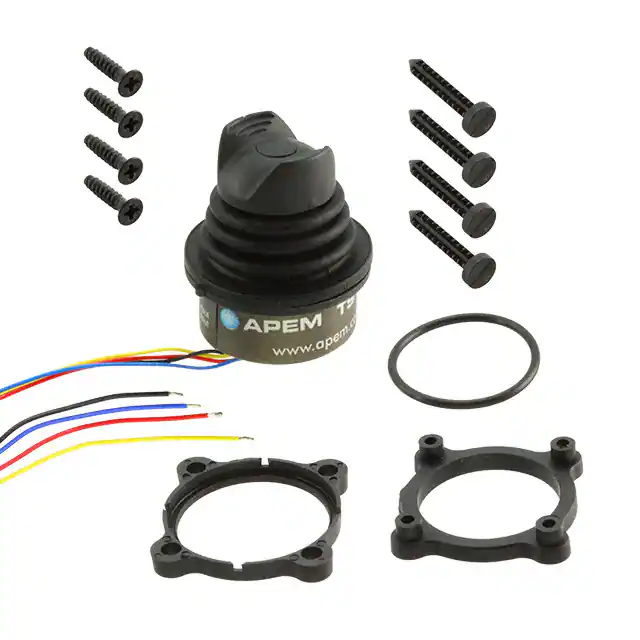

TSCA2S02ASWITCH THUMBSTCK WINGED HAT HALL |
5 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 2 - Axis | Winged Hat | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
M11L061P-XSWITCH JOYSTICK ANALOG |
11 |
|
Datasheet |
M | Bulk | Active | Joystick, 1 - Axis | Joystick | 2-Way Directional | - | Analog (Resistive) | - | - | - | - | - | - | 5 kOhms | Panel Mount | Solder Lug | -25°C ~ 70°C | Circular - 39.70mm Dia | - | - |
|
HF10P10SWITCH JOYSTICK BALL TIP HALL |
3 |
|
Datasheet |
HF | Bulk | Active | Joystick, 2 - Axis | Ball Tip | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 70°C | Circular - 41.28mm Dia | IP68 - Dust Tight, Waterproof | - |
|
TW01BLU11SWITCH THUMBWHEEL HALL EFFECT |
4 |
|
Datasheet |
TW | Bulk | Active | Thumbwheel, 1 - Axis | Thumbwheel | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -40°C ~ 85°C | Rectangular - 36.60mm x 16.30mm | IP67 - Dust Tight, Waterproof | Blue Actuator |
|

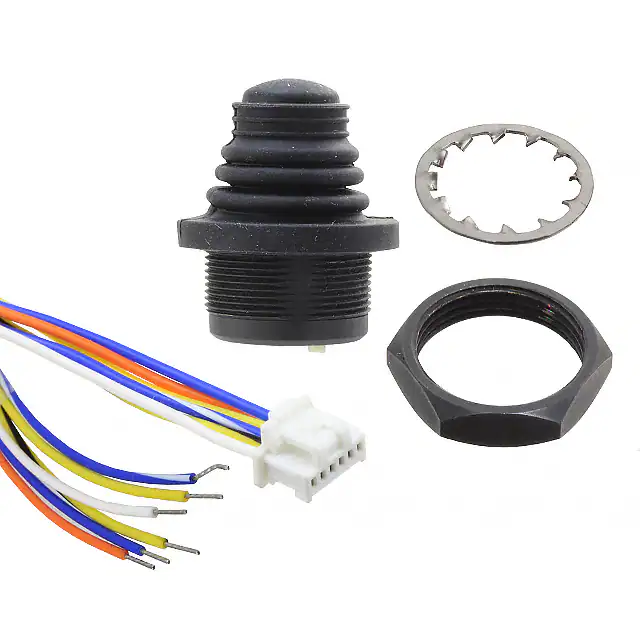

HS6T24GASWITCH THMBSTK PUSHBTN 10MA 30V |
18 |
|
Datasheet |
HS | Bulk | Active | Thumbstick, 2 - Axis | Pushbutton | 4-Way Directional, Center Select | - | Digital (Mechanical Switch) | - | 10mA (DC) | - | 30 V | - | Gold | - | Panel Mount | Wire Leads with Connector | -25°C ~ 80°C | Circular - 25.02mm Dia | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
JC31L0D0SWITCH JOYSTICK HALL EFFECT |
4 |
|
Datasheet |
JC | Bulk | Active | Joystick, 3 - Axis | Joystick | 2-Way Rotational, 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -25°C ~ 70°C | - | - | - |
|

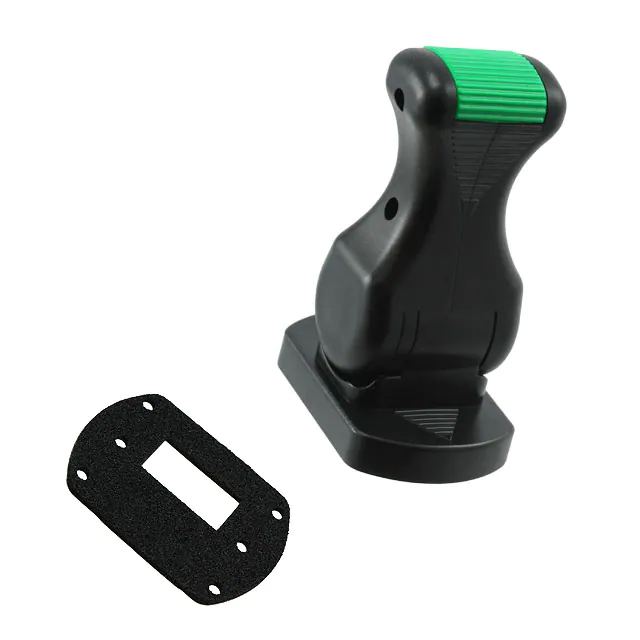

BF240SD3GR2500SWITCH JOYSTICK PADDLE HALL |
3 |
|
Datasheet |
BF | Bulk | Active | Joystick, 1 - Axis | Paddle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Connector | -25°C ~ 70°C | Rectangular - 21.00mm x 10.00mm | IP67 - Dust Tight, Waterproof | Green Actuator, Switching Points ± 25° |
|

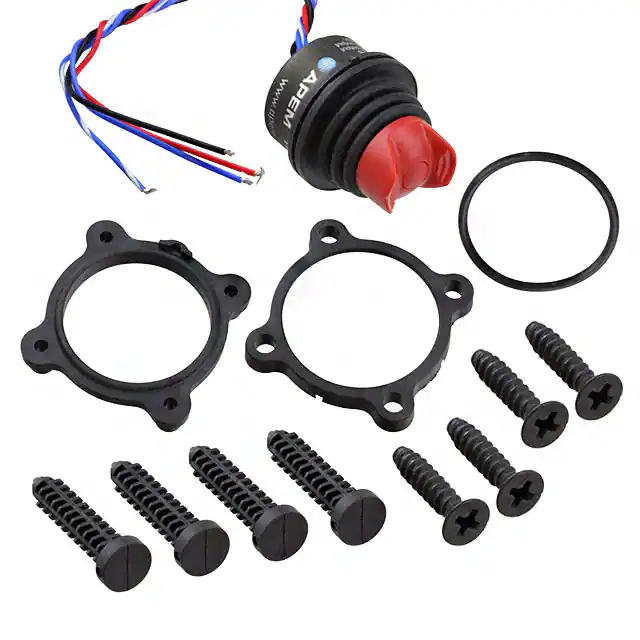

FR2A1U09A2ASWITCH THUMBSTCK WINGED HAT HALL |
7 |
|
Datasheet |
FR | Bulk | Active | Thumbstick, 1 - Axis | Winged Hat | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP68 - Dust Tight, Waterproof | Red Actuator |
|
TSEA1S00ASWITCH THUMBSTICK QUADCAVE HALL |
13 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 2 - Axis | Quadcave | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
TSFA1S00ASWITCH THUMBSTICK PUCK HALL |
9 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 2 - Axis | Puck | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
TS1A1U00ASWITCH THUMBSTICK CASTLE HALL |
24 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 1 - Axis | Castle | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|

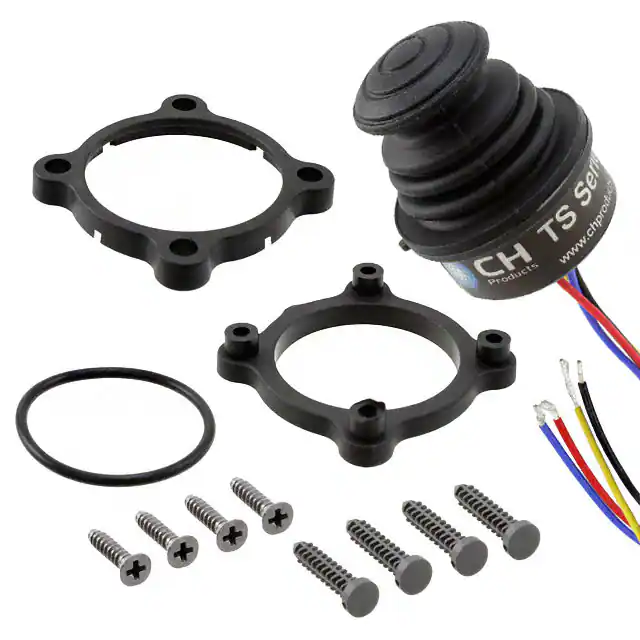

TS7A1S00ASWITCH THUMBSTICK MUSHROOM HALL |
15 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 2 - Axis | Mushroom Button | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|

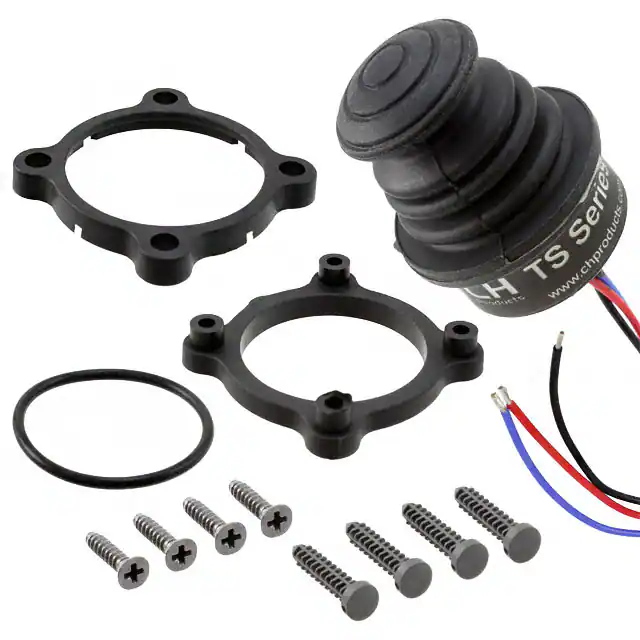

TS7A1U00ASWITCH THUMBSTICK MUSHROOM HALL |
13 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 1 - Axis | Mushroom Button | 2-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
|
TS5A1S00ASWITCH THUMBSTICK ROUND JOG HALL |
5 |
|
Datasheet |
TS | Bulk | Active | Thumbstick, 2 - Axis | Round Jog | 4-Way Directional | - | Analog (Hall Effect) | 5VDC | - | - | - | - | - | - | Panel Mount | Wire Leads | -40°C ~ 85°C | Circular - 25.65mm Dia | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - |
