Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TO-30453-000MIC ANALOG OMNI |
0 |
|
- |
TO | Tray | Active | - | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TO-30994-000MIC ANALOG OMNI |
0 |
|
- |
TO | Tray | Active | - | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WP-30113-PO3MICROPHONE |
0 |
|
Datasheet |
WP | Tray | Active | Boom | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -74dB ±3dB @ 94dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
WP22502-P16MICROPHONE ASSEMBLY |
0 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FG38-30490-C36MIC COND ANALOG OMNI |
0 |
|
- |
FG | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

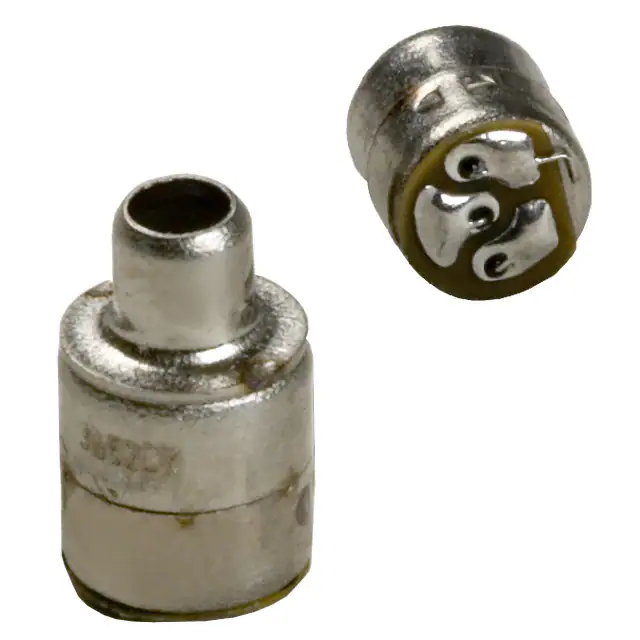

FG-23652-D65MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Datasheet |
FG | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 3 V | 50 µA | Top | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
FG-26107-D65MICROPHONE COND ANALOG OMNI |
0 |
|
Datasheet |
FG | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
TM-24546-C36MIC COND ANALOG OMNI -54.5DB |
0 |
|
Datasheet |
TM | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 6.4 kHz | -54.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.070" (1.77mm) | Square | - | - |
|
|
TM-23568-C56MIC ELECT OMNI -36DB SENS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TO38-31018-B20MIC COND ANALOG OMNI -64.5DB |
0 |
|
- |
TO | Tray | Active | Electret Condenser | Analog | Omnidirectional | 80 Hz ~ 10 kHz | -64.5dB ±3dB @ 74dB SPL | - | 4.4 kOhms | - | 0.9 V ~ 1.6 V | 29 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|
|
TO38-30702-B20MICROPHONE |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB-DW-30294-000MIC BOOM ANALOG NC -59DB 8MM D |
0 |
|
Datasheet |
FB-DW | Bulk | Obsolete | Boom | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -59dB +4dB, -3dB @ 74dB SPL | - | 2.2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.315" Dia (8.00mm) | 0.185" (4.70mm) | Circular | - | - |
|
|
TM-27830-C36MIC ELECT OMNI -39.5DB SENS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BJ-28411-000MICROPHONE MAG ANALOG NC -87DB |
0 |
|
Datasheet |
BJ | Bulk | Obsolete | Magnetic | Analog | Noise Cancelling | 300 Hz ~ 5 kHz | -87dB ±5dB @ 74dB SPL | - | 300 Ohms | - | - | - | Side | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.160" (4.06mm) | Rectangular | - | - |
|
|
BJ-21591-000MIC MAG ANLG -75DB 0.31"LX0.22"W |
0 |
|
Datasheet |
BJ | Bulk | Active | Magnetic | Analog | - | 300 Hz ~ 5 kHz | -75dB ±2.5dB @ 74dB SPL | - | 3.9 kOhms | - | - | - | Side | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) | 0.160" (4.06mm) | Rectangular | - | - |
|
EK-23024-P54MIC COND ANALOG OMNI -53DB |
0 |
|
Datasheet |
EK | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 5.5 kHz | -53dB ±2dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Wire Leads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
EM-31144-P58MICROPHONE COND ANALOG OMNI |
0 |
|
Datasheet |
EM | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | - | - | - | - | - | - | - | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.090" (2.28mm) | Square | - | - |
|
|
WP-23501-P17MIC COND ANALOG NC -54DB |
0 |
|
Datasheet |
WP | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 4 kHz | -54dB ±3dB @ 74dB SPL | - | 2.5 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Top | Waterproof | Wire Leads | - | - | Rectangular | - | - |
|
|
WP-23849-P16MIC COND ANALOG OMNI -52DB |
0 |
|
Datasheet |
WP | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 9.5 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Bottom | Waterproof | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
TO-31021-B21MICROPHONE OMNI |
0 |
|
- |
TO | Bulk | Active | - | - | Omnidirectional | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Microphones Electronic Components
Explore Microphones electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
