Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TO38-31548-B20MICROPHONE |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TO38-31638-B21MICROPHONE |
0 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WP-23502-P49MIC COND ANALOG OMNI -52DB |
0 |
|
- |
WP | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4 kHz | -52dB ±3dB @ 74dB SPL | - | 4.4 kOhms | - | - | - | Top | Waterproof | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
TO-24609-B26MIC ANALOG OMNI 0.141"LX0.141"W |
0 |
|
- |
TO | Tray | Obsolete | - | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|
|
FB-DW-30295-000MIC BOOM ANLG NC -53DB 0.315"DIA |
0 |
|
Datasheet |
FB-DW | Bulk | Obsolete | Boom | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 1.3 V ~ 10 V | 50 µA | Bottom, Top | - | Wire Leads | 0.315" Dia (8.00mm) | 0.185" (4.70mm) | Circular | - | - |
|
|
NR-25994-D63MIC COND ANALOG NC -58.5DB |
0 |
|
- |
NR | Bulk | Obsolete | Electret Condenser | Analog | Noise Cancelling | 300 Hz ~ 4 kHz | -58.5dB ±4dB @ 74dB SPL | - | 2 kOhms | 1.3 V | 1.3 V ~ 10 V | 300 µA | Bottom, Top | - | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
FG-23653-D65MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Datasheet |
FG | Tray | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|

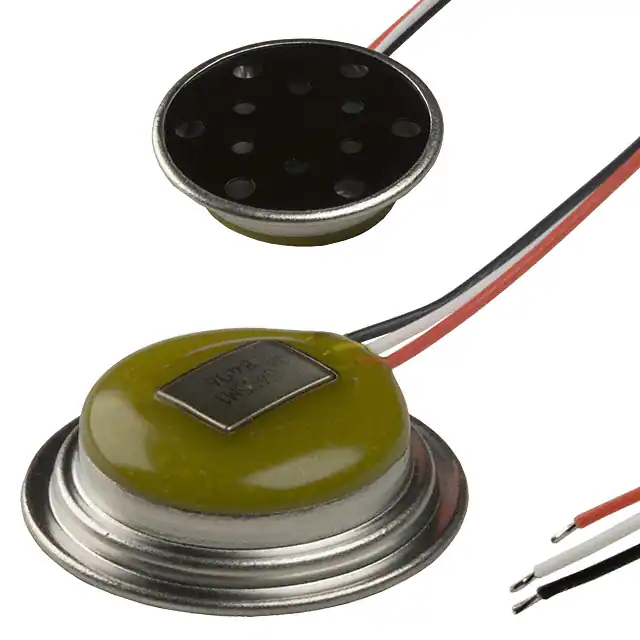

MR-28406-000MICROPHONE COND ANALOG OMNI |
0 |
|
Datasheet |
MR | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 4.7 kHz | -60dB +2dB, -5dB @ 74dB SPL | - | 3.5 kOhms | 1.3 V | - | 50 µA | Side | Waterproof | Wire Leads | 0.871" Dia (22.12mm) | 0.299" (7.60mm) | Circular | - | - |
|
|
WP-30113-000MICROPHONE COND ANALOG OMNI |
0 |
|
Datasheet |
WP | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 6 kHz | - | - | - | - | - | - | - | Waterproof | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
WP-30113-P03MICROPHONE COND ANALOG OMNI |
0 |
|
Datasheet |
WP | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 6 kHz | - | - | - | - | - | - | - | Waterproof | Solder Pads | 0.219" L x 0.157" W (5.56mm x 3.99mm) | 0.089" (2.26mm) | Rectangular | - | - |
|
|
WP-25393-000MICROPHONE |
0 |
|
- |
WP | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FG-23629-G17MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Datasheet |
FG | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
|
FG-23652-D17MIC COND ANLG OMNI -53DB 0.101"D |
0 |
|
Datasheet |
FG | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -53dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | - | 50 µA | Side | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
|
FG-23824-C36MIC COND ANLG OMNI -55DB 0.101"D |
0 |
|
- |
FG | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -55dB ±3dB @ 74dB SPL | - | 12 kOhms | 1.3 V | - | 50 µA | Bottom | - | Solder Pads | 0.101" Dia (2.57mm) | 0.102" (2.60mm) | Circular | - | - |
|
|
FG-23453-C05MICROPHONE |
0 |
|
- |
FG | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FB-DS-25966-000MICROPHONE BOOM ASSEMBLY |
0 |
|
- |
FB | Box | Obsolete | Boom | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9200-153299MICROPHONE |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9200-153417MICROPHONE |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TO-24609-000MIC COND ANALOG OMNI -56DB |
0 |
|
Datasheet |
TO | Tray | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 7 kHz | -56dB ±3dB @ 74dB SPL | - | 4.4 kOhms | 1.3 V | 0.9 V ~ 1.6 V | 50 µA | Side | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
|
|
TO-30043-B63MIC ANALOG OMNI 0.141"LX0.141"W |
0 |
|
- |
TO | Tray | Last Time Buy | - | Analog | Omnidirectional | - | - | - | - | - | - | - | - | - | Solder Pads | 0.141" L x 0.141" W (3.57mm x 3.57mm) | 0.053" (1.35mm) | Square | - | - |
Microphones Electronic Components
Explore Microphones electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
