Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E888MAGNET 1.969"D X 0.394"THICK CYL |
25 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Ferrite | Steel, Zinc | - | - | 1.969" Dia x 0.394" H (50.00mm x 10.00mm) | 120°C |
|
52.1-AN-13-2MAGNET 0.512"D X 0.787"THICK CYL |
4 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Stainless Steel | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 450°C (TA) |
|
E766NEONDFEB SHALLOW POT 25X7MM |
10 |
|
- |
- | Box | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | - | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | - |
|
YB-155-1MAGNET 0.750"D X 0.125"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | 12800G, 13400G | 0.750" Dia x 0.125" H (19.05mm x 3.17mm) | - |
|
52.3-AN-17-RTMAGNET 0.669"D X 0.630"THICK CYL |
21 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Stainless Steel | - | - | 0.669" Dia x 0.630" H (17.00mm x 16.00mm) | 350°C (TA) |
|
|
E821ALNICO BUTTON 12.7X9.5MM |
0 |
|
- |
- | Active | Cylindrical | Diametric | Alnico (AlNiCo) | - | - | - | 0.500" Dia x 0.374" H (12.70mm x 9.50mm) | - | |
|
M52171/25ARMMAGNET 0.984"D X 0.118"THICK CYL |
1 |
|
Datasheet |
- | Box | Active | Cylindrical | - | - | Nickel (Ni) | - | - | 0.984" Dia x 0.118" H (25.00mm x 3.00mm) | - |
|
52.4-AN-8-M3-EMAGNET 0.315"D X 0.787"THICK CYL |
20 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | Steel, Zinc | - | - | 0.315" Dia x 0.787" H (8.00mm x 20.00mm) | 450°C (TA) |
|
CMP8712CSP2N42SMARTMAG .875ODX1/8" #8CNTRSINK |
18 |
|
Datasheet |
- | Bag | Active | Square | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | - | 82°C (180°F) |
|
52.1-ND-13-2MAGNET 0.512"D X 0.787"THICK CYL |
3 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Stainless Steel | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 80°C (TA) |
|
54.1-SC-10MAGNET 0.394"D X 0.787"THICK CYL |
22 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Samarium Cobalt (SmCo5) | Brass | - | - | 0.394" Dia x 0.787" H (10.00mm x 20.00mm) | 200°C (TA) |
|
|
E1022/NEONDFEB SHALLOW POT 25X7MM M5 |
15 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 80°C |
|

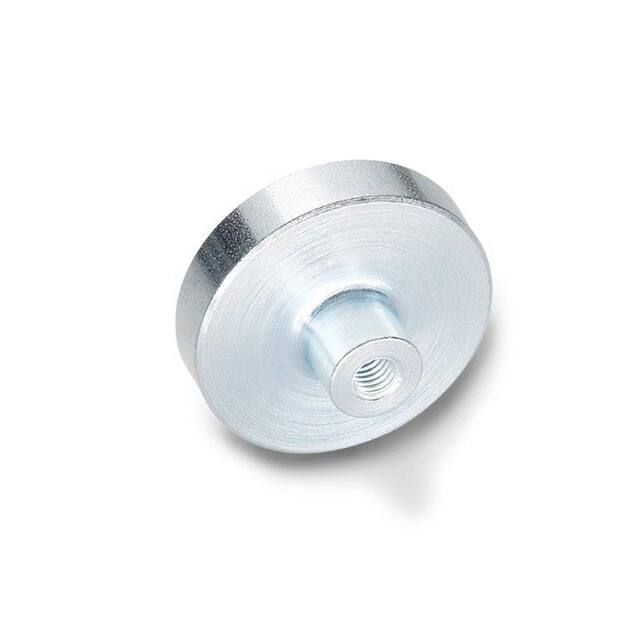

50.2-SC-16-4.5-M4MAGNET 0.630"D X 0.177"THICK RND |
17 |
|
Datasheet |
- | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.630" Dia x 0.177" H (16.00mm x 4.50mm) | 200°C (TA) |
|
|
101MG8-BPMAGNET 0.245"D X 0.245"THICK RND |
0 |
|
Datasheet |
MG | Bulk | Obsolete | Round | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.245" Dia x 0.245" H (6.22mm x 6.22mm) | 250°C (TA) |
|
E760MAGNET 0.236"D X 0.177"THICK CYL |
14 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Samarium Cobalt (SmCo5) | Zinc | - | - | 0.236" Dia x 0.177" H (6.00mm x 4.50mm) | 200°C |
|
|
E801ALNICO MINOR HORSESHOE 22.2X7.9X |
0 |
|
- |
- | Active | Rectangular | Diametric | Alnico (AlNiCo) | - | - | - | 0.874" L x 0.311" W x 0.437" H (22.20mm x 7.90mm x 11.10mm) | - | |
|
|
829ALNICO DEEP POT 9.5X15MM M3 |
0 |
|
Datasheet |
- | Active | Cylindrical | Diametric | Alnico (AlNiCo) | - | - | - | 0.374" Dia x 0.591" H (9.50mm x 15.00mm) | 220°C | |
|
|
830ALNICO DEEP POT 12.7X15.9MM M4 |
0 |
|
- |
- | Active | Cylindrical | Diametric | Alnico (AlNiCo) | - | - | - | 0.500" Dia x 0.626" H (12.70mm x 15.90mm) | 220°C | |
|
|
E1044/NEONDFEB SHALLOW POT 32X7MM M6 W/EY |
0 |
|
- |
- | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 1.260" Dia x 1.929" H (32.00mm x 49.00mm) | 80°C | |
|

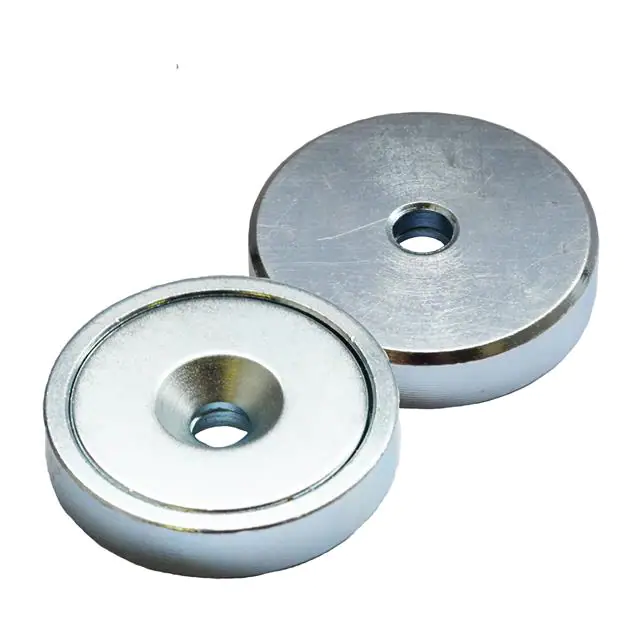

E1003/NEOMAGNET 1.260"D X 0.276"THICK CYL |
17 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 1.260" Dia x 0.276" H (32.00mm x 7.00mm) | - |
