Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E772NEOMAGNET 0.394"D X 0.177"THICK CYL |
0 |
|
Datasheet |
- | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.394" Dia x 0.177" H (10.00mm x 4.50mm) | 80°C | |
|

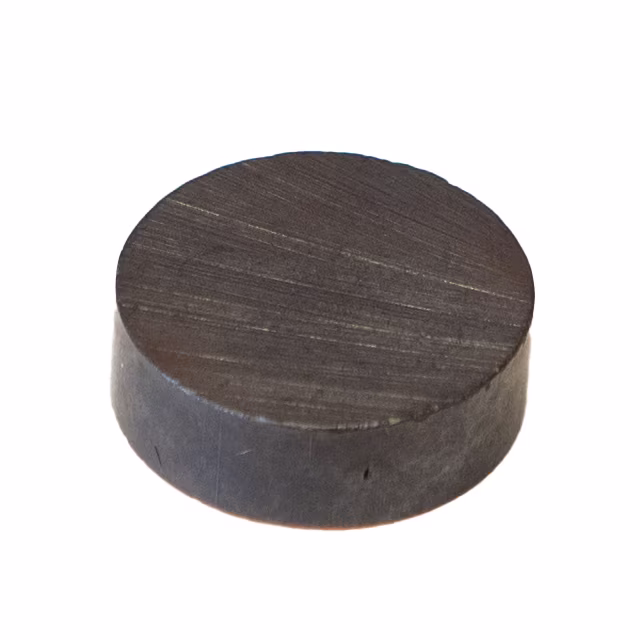

ALC1550MAGNET 0.591"D X 0.197"THICK CYL |
17 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Ceramic | - | C8 | 3900G, 4100G | 0.591" Dia x 0.197" H (15.00mm x 5.00mm) | 250°C (TA) |
|
E1042/NEONDFEB SHALLOW POT 20X6MM M4 W/EY |
10 |
|
- |
- | Box | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.787" Dia x 1.142" H (20.00mm x 29.00mm) | 80°C |
|
50.1-SC-8-4.5MAGNET 0.315"D X 0.177"THICK RND |
10 |
|
Datasheet |
- | Box | Active | Round | - | Samarium Cobalt (SmCo5) | Steel, Zinc | - | - | 0.315" Dia x 0.177" H (8.00mm x 4.50mm) | 200°C (TA) |
|
E764NEOMAGNET 0.630"D X 0.177"THICK CYL |
18 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | - | - | - | 0.630" Dia x 0.177" H (16.00mm x 4.50mm) | - |
|
60-AN-13MAGNET 0.512"D X 0.394"THICK CYL |
23 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.512" Dia x 0.394" H (13.00mm x 10.00mm) | 280°C (TA) |
|
50.2-ND-10-4.5-M3MAGNET 0.394"D X 0.177"THICK RND |
3 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.394" Dia x 0.177" H (10.00mm x 4.50mm) | 80°C (TA) |
|
55.3-AN-8-25MAGNET 0.315"D X 0.984"THICK CYL |
3 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico (AlNiCo) | - | - | - | 0.315" Dia x 0.984" H (8.00mm x 25.00mm) | - |
|
50.3-ND-13-M5MAGNET 0.512"D X 0.177"THICK RND |
2 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | 80°C (TA) |
|
E1001/NEOMAGNET 0.787"D X 0.236"THICK CYL |
0 |
|
Datasheet |
- | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | - | |
|
|
CMP751212P2N42MAGNET 0.750"D X 0.500"THICK RND |
16 |
|
Datasheet |
Max-Attach® | Bag | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 0.750" Dia x 0.500" H (19.05mm x 12.70mm) | 82.2°C |
|
E750NEOMAGNET 0.236"D X 0.787"THICK CYL |
18 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Brass | - | - | 0.236" Dia x 0.787" H (6.00mm x 20.00mm) | - |
|
50.2-ND-13-4.5-M3MAGNET 0.512"D X 0.177"THICK RND |
10 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | 80°C (TA) |
|

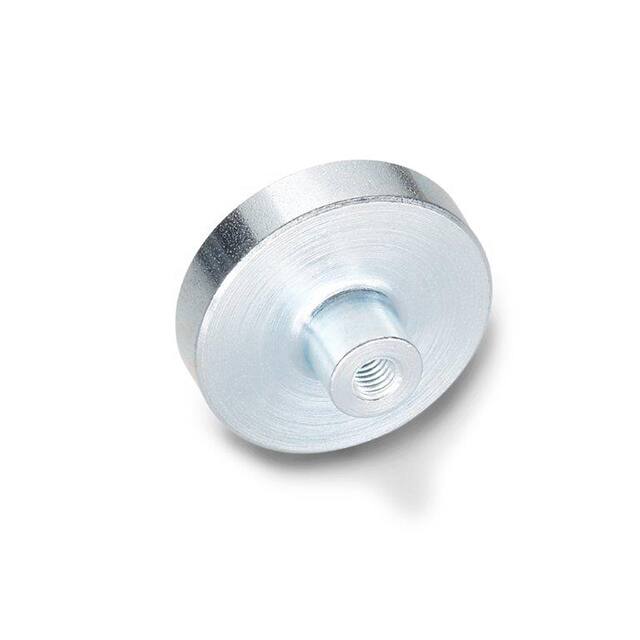

50.2-HF-25-7-M4MAGNET 0.984"D X 0.276"THICK RND |
20 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 0.984" Dia x 0.276" H (25.00mm x 7.00mm) | 200°C (TA) |
|
|
UR120500MAGNET 0.472"D X 0.197"THICK CYL |
0 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel, Zinc | N35 | 11700G, 12100G | 0.472" Dia x 0.197" H (12.00mm x 5.00mm) | 80°C |
|
CS-0038MAGNET 0.118"LX0.118"WX0.069"H |
0 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | Passivated | N44H | 13000G, 13500G | 0.118" L x 0.118" W x 0.069" H (3.00mm x 3.00mm x 1.75mm) | 140°C (TA) |
|
|
U6250000MAGNET 0.236"D X 0.984"THICK CYL |
0 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Alnico 5 (AlNiCo) | - | - | 11000G, 14000G | 0.236" Dia x 0.984" H (6.00mm x 25.00mm) | 400°C |
|
|
E1012/NEOMAGNET 0.984"D X 0.315"THICK CYL |
14 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | Zinc | - | - | 0.984" Dia x 0.315" H (25.00mm x 8.00mm) | 80°C |
|
|
E763NEOMAGNET 0.512"D X 0.177"THICK CYL |
18 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial, Pot | Neodymium Iron Boron (NdFeB) | - | - | - | 0.512" Dia x 0.177" H (13.00mm x 4.50mm) | - |
|
YB-076-1MAGNET 0.472"D X 0.118"THICK RND |
16 |
|
Datasheet |
- | Bulk | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N38SH | 12200G, 12700G | 0.472" Dia x 0.118" H (12.00mm x 3.00mm) | 150°C (TA) |
Multi Purpose Magnets Electronic Components
Explore Multi Purpose Magnets electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
