Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UR144361MAGNET 0.551"D X 0.236"THICK CYL |
8 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel, Zinc | - | 11300G, 12200G | 0.551" Dia x 0.236" H (14.00mm x 6.00mm) | 150°C |
|
G58-A-3006-25-050MAGNET 3.610"D X 0.320"THICK CYL |
3 |
|
Datasheet |
G58 | Bulk | Active | Cylindrical | Diametric | Magnalox | - | - | 1370G | 3.610" Dia x 0.320" H (91.69mm x 8.13mm) | 125°C (TA) |
|
|
M1219-5(100)MAGNET 0.39"DIA X 0.20"THICK CYL |
5 |
|
Datasheet |
- | Bulk | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | N35H | 3500G | 0.39" Dia x 0.20" H (10.0mm x 5.0mm) | 140°C (TA) |
|
|
8379DISK N40 EPOXY COATED D1/4" X 1/ |
7 |
|
- |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N40 | 11900G | 0.250" Dia x 0.125" H (6.35mm x 3.18mm) | 80°C |
|
|
MAGNET-30X10X3MAGNET-30X10X3 |
1 |
|
- |
- | Bulk | Active | Rectangular | - | Neodymium Iron Boron (NdFeB) | - | - | - | 1.181" L x 0.394" W x 0.118" H (30.00mm x 10.00mm x 3.00mm) | - |
|
COM-08644MAGNET 0.125" SQ X 0.125" H SQU |
0 |
|
Datasheet |
- | Bulk | Active | Square | Axial | Neodymium Iron Boron (NdFeB) | - | - | - | 0.125" Sq x 0.125" H (3.18mm x 3.18mm) | - |
|
COM-08890MAGNET 0.709"D X 0.197"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Ceramic 8 | - | - | 3850G | 0.709" Dia x 0.197" H (18.01mm x 5.00mm) | - |
|
COM-08914MAGNET 0.188"D X 0.063"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | 2275G | 0.188" Dia x 0.063" H (4.78mm x 1.60mm) | - |
|
|
UP051508MAGNET 1.969"LX0.591"WX0.315"H |
0 |
|
Datasheet |
- | Box | Active | Rectangular | Axial | - | Plastic | - | 2400G | 1.969" L x 0.591" W x 0.315" H (50.00mm x 15.00mm x 8.00mm) | 85°C |
|
|
NE5025NP35MAGNET 0.500"D X 0.250"THICK RND |
15 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.500" Dia x 0.250" H (12.70mm x 6.35mm) | 82.2°C |
|
|
12216MAGNET 0.236"D X 0.157"THICK RND |
0 |
|
Datasheet |
- | Tube | Active | Round | Axial | Ceramic 8 | - | - | - | 0.236" Dia x 0.157" H (6.00mm x 4.00mm) | - |
|
55.2-ND-4-3MAGNET 0.157"D X 0.118"THICK RND |
2 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | - | - | - | 0.157" Dia x 0.118" H (4.00mm x 3.00mm) | 80°C (TA) |
|
|
12217MAGNET 0.138"D X 0.157"THICK CYL |
0 |
|
Datasheet |
- | Tube | Active | Cylindrical | Axial | Ceramic 8 | - | - | - | 0.138" Dia x 0.157" H (3.50mm x 4.00mm) | - |
|
|
103MG9MAGNET 0.125" SQ X 0.040" H SQU |
0 |
|
Datasheet |
MG | Tube | Obsolete | Square | Axial | Rare Earth | - | - | 2500G @ 0.01" | 0.125" Sq x 0.040" H (3.18mm x 1.02mm) | - |
|

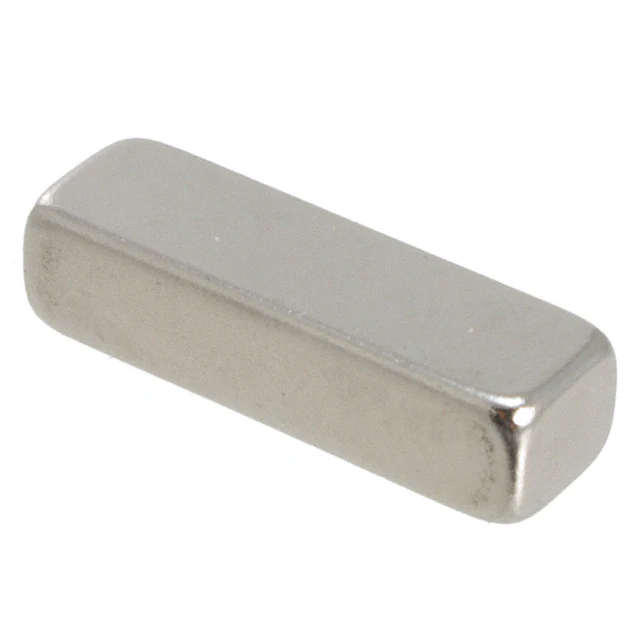

8029MAGNET 1.000"LX0.313"WX0.250"H |
0 |
|
Datasheet |
- | Box | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3525G (Surface Gauss) | 1.000" L x 0.313" W x 0.250" H (25.4mm x 7.94mm x 6.35mm) | 80°C (TA) |
|
COM-08643MAGNET 0.250" SQ X 0.250" H SQU |
0 |
|
Datasheet |
- | Bulk | Active | Square | Axial | Neodymium Iron Boron (NdFeB) | - | - | - | 0.250" Sq x 0.250" H (6.35mm x 6.35mm) | - |
|
53.1-ND-18-GRMAGNET 0.551"D X 0.315"THICK RND |
10 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Plastic | - | - | 0.551" Dia x 0.315" H (14.00mm x 8.00mm) | 80°C (TA) |
|

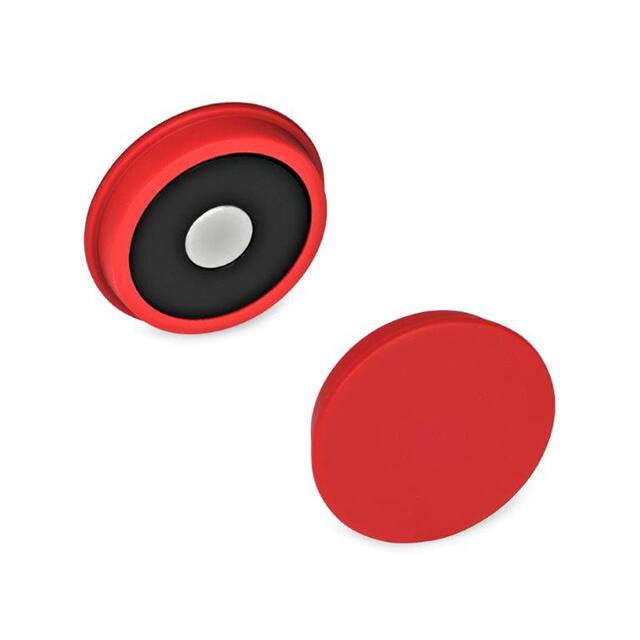

53.1-ND-18-RTMAGNET 0.551"D X 0.315"THICK RND |
7 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Plastic | - | - | 0.551" Dia x 0.315" H (14.00mm x 8.00mm) | 80°C (TA) |
|
53.1-ND-18-WSMAGNET 0.551"D X 0.315"THICK RND |
6 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Plastic | - | - | 0.551" Dia x 0.315" H (14.00mm x 8.00mm) | 80°C (TA) |
|
|
UR503000MAGNET 0.197"D X 0.118"THICK CYL |
0 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | - | 13700G | 0.197" Dia x 0.118" H (5.00mm x 3.00mm) | 120°C (TA) |
