Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8017MAGNET 0.187"D X 0.125"THICK CYL |
0 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4324G (Surface Gauss) | 0.187" Dia x 0.125" H (4.76mm x 3.17mm) | 80°C (TA) |
|
9083DISK N35SH NICUNI 4MM(A) X 2.5MM |
45 |
|
- |
- | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | 11900G | 0.157" Dia x 0.098" H (4.00mm x 2.50mm) | 150°C |
|
M1219-2MAGNET 0.12"DIA X 0.08"THICK CYL |
0 |
|
Datasheet |
- | Bulk | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | - | N30H | 2500G | 0.12" Dia x 0.08" H (3.0mm x 2.0mm) | 120°C (TA) |
|
8688MAGNET 0.375"D X 0.200"THICK CYL |
0 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4190G (Surface Gauss) | 0.375" Dia x 0.200" H (9.53mm x 5.08mm) | 80°C (TA) |
|
8242MAGNET 0.750"D X 0.125"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 12100G (Surface Gauss) | 0.750" Dia x 0.125" H (19.0mm x 3.18mm) | 80°C (TA) |
|
8025MAGNET 1.000"LX0.500"WX0.125"H |
14 |
|
Datasheet |
- | Box | Active | Rectangular | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3158G (Surface Gauss) | 1.000" L x 0.500" W x 0.125" H (25.4mm x 12.7mm x 3.18mm) | 80°C (TA) |
|
9150MAGNET 0.250"D X 0.100"THICK CYL |
84 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 1795G | 0.250" Dia x 0.100" H (6.35mm x 2.54mm) | 80°C (TA) |
|
8276MAGNET 0.188"DX0.125"H CYL 1=1PC |
17 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35SH | 4328G | 0.188" Dia x 0.125" H (4.77mm x 3.18mm) | 80°C (TA) |
|
9152MAGNET 0.375DX0.100"H CYL 1=20PC |
7 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 2340G | 0.375" Dia x 0.100" H (9.53mm x 2.54mm) | 80°C (TA) |
|
9151MAGNET 0.375"DX0.125"H CYL 1=1PC |
10 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 4105G | 0.375" Dia x 0.125" H (9.53mm x 3.18mm) | 80°C (TA) |
|
8458MAGNET 0.500"DX0.188"H CYL 25PK |
3 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 3509G | 0.500" Dia x 0.188" H (12.70mm x 4.77mm) | 80°C (TA) |
|
M1218MAGNET 0.59"DIA X 0.24"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial | Anisotropic Sintered Ferrite | - | N35H | 1000G | 0.59" Dia x 0.24" H (15.0mm x 6.0mm) | - |
|

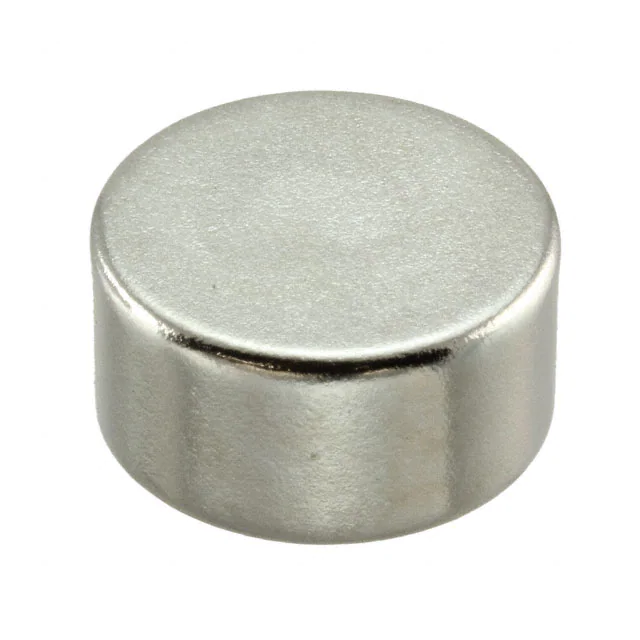

8185MAGNET 0.625"D X 0.313"THICK CYL |
22 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4154G (Surface Gauss) | 0.625" Dia x 0.313" H (15.9mm x 7.94mm) | 80°C (TA) |
|
9158MAGNET 0.750"D X 0.063"THICK CYL |
24 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 1217G | 0.750" Dia x 0.063" H (19.05mm x 1.59mm) | 80°C (TA) |
|
RSH32MAGNET 1.098"LX0.187"WX0.187"H |
25 |
|
Datasheet |
- | Bulk | Active | Rectangular | - | Alnico, Alcomax | - | - | 150G, 300G | 1.098" L x 0.187" W x 0.187" H (27.90mm x 4.75mm x 4.75mm) | 550°C (TA) |
|
9153MAGNET 0.75"DX0.125"H CYL 1=1PC |
18 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | 2340G | 0.750" Dia x 0.125" H (19.0mm x 3.18mm) | 80°C (TA) |
|
8222MAGNET 0.787"D X 0.280"THICK RND |
0 |
|
Datasheet |
- | Bulk | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.787" Dia x 0.280" H (20.0mm x 7.11mm) | 80°C (TA) |
|
8174MAGNET 0.625"D X 0.375"THICK CYL |
25 |
|
Datasheet |
- | Box | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | 4503G (Surface Gauss) | 0.625" Dia x 0.375" H (15.9mm x 9.53mm) | 80°C (TA) |
|
H-32-MAGNETMAGNET 0.187" SQ X 1.000" H RECT |
0 |
|
Datasheet |
- | Bulk | Active | Rectangular | Axial | Alnico 5 (AlNiCo) | - | - | 10900G (Flux Density) | 0.187" Sq x 1.000" H (4.76mm x 25.4mm) | 450°C (TA) |
|
G16-A-0500-50-024MAGNET 1.005"D X 0.210"THICK CYL |
0 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
