Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

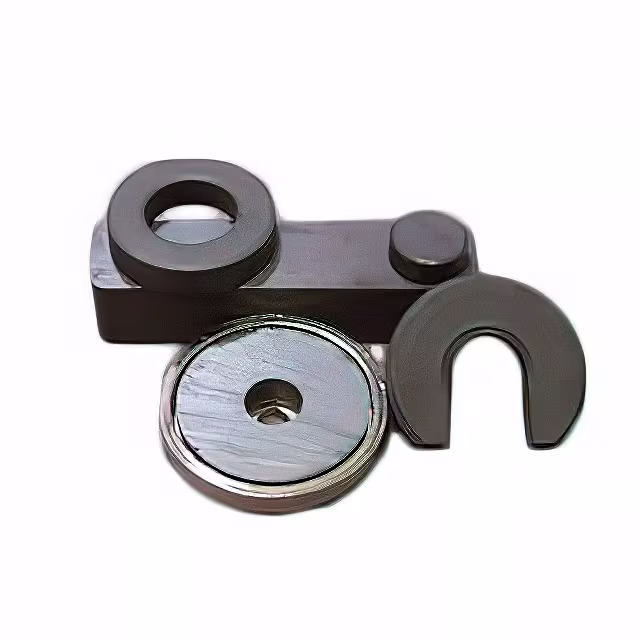

CM-0538MAGNET 2.375"D X 0.290"THICK RND |
1,000 |
|
Datasheet |
- | Box | Active | Round | - | Ceramic | - | C5 | - | 2.375" Dia x 0.290" H (60.33mm x 7.37mm) | - |
|
CA-0371MAGNET 0.125"DIA X 1.750" L CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico 5 (AlNiCo) | - | C5 | - | 0.125" Dia x 1.750" L (3.18mm x 44.45mm) | 525°C |
|
NE5020NP52MAGNET 0.500"D X 0.200"THICK RND |
400 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | - | 0.500" Dia x 0.200" H (12.70mm x 5.08mm) | 82.2°C |
|

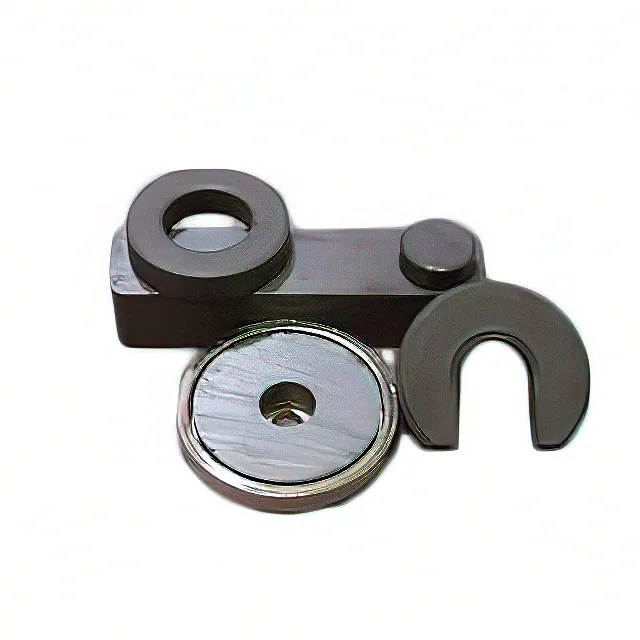

CM-0308MAGNET 1.235"D X 0.561"THICK RND |
1,000 |
|
Datasheet |
- | Box | Active | Round | - | Ceramic | - | C5 | - | 1.235" Dia x 0.561" H (31.37mm x 14.25mm) | - |
|
RE-0200MAGNET 0.750"D X 0.100"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N42 | - | 0.750" Dia x 0.100" H (19.05mm x 2.54mm) | 150°C |
|
CM-0509MAGNET 4.000"LX0.500"WX0.750"H |
1,000 |
|
Datasheet |
- | Box | Active | Rectangular | - | Ceramic | - | C5 | - | 4.000" L x 0.500" W x 0.750" H (101.60mm x 12.70mm x 19.05mm) | 300°C |
|
|
NE3750NP42MAGNET 0.375"D X 0.500"THICK CYL |
200 |
|
Datasheet |
Mag-Mate® | Bag | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 0.375" Dia x 0.500" H (9.53mm x 12.70mm) | 82.2°C |
|
MK-0019MAGNET 0.500"LX0.250"WX0.250"H |
1,000 |
|
Datasheet |
- | Box | Active | Rectangular | - | Neodymium | Nickel (Ni) | N42 | - | 0.500" L x 0.250" W x 0.250" H (12.70mm x 6.35mm x 6.35mm) | 120°C |
|
MK-0134MAGNET 0.500"D X 0.250"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N42 | - | 0.500" Dia x 0.250" H (12.70mm x 6.35mm) | 120°C |
|
|
NE10006NP42MAGNET 1.000"D X 0.062"THICK RND |
500 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.000" Dia x 0.062" H (25.40mm x 1.57mm) | 82.2°C |
|
CA-0218MAGNET 0.250" DIA X 1.250" L CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico 5 (AlNiCo) | - | C5 | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | 525°C |
|
RE-0710MAGNET 0.750"D X 0.250"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N35 | - | 0.750" Dia x 0.250" H (19.05mm x 3.18mm) | 150°C |
|
|
NE5037NP35MAGNET 0.500"D X 0.375"THICK CYL |
500 |
|
Datasheet |
Mag-Mate® | Bag | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.500" Dia x 0.375" H (12.70mm x 9.53mm) | 82.2°C |
|
|
NE7512NP42MAGNET 0.750"D X 0.125"THICK RND |
500 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 0.750" Dia x 0.125" H (19.05mm x 3.18mm) | 82.2°C |
|
EA-0123MAGNET 0.375"D X 0.375"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N52 | - | 0.375" Dia x 0.375" H (9.53mm x 9.53mm) | - |
|
MK-0013MAGNET 0.375"LX0.375"WX0.125"H |
1,000 |
|
Datasheet |
- | Box | Active | Square | - | Neodymium | Nickel (Ni) | N42 | - | 0.375" L x 0.375" W x 0.125" H (9.53mm x 9.53mm x 3.18mm) | - |
|

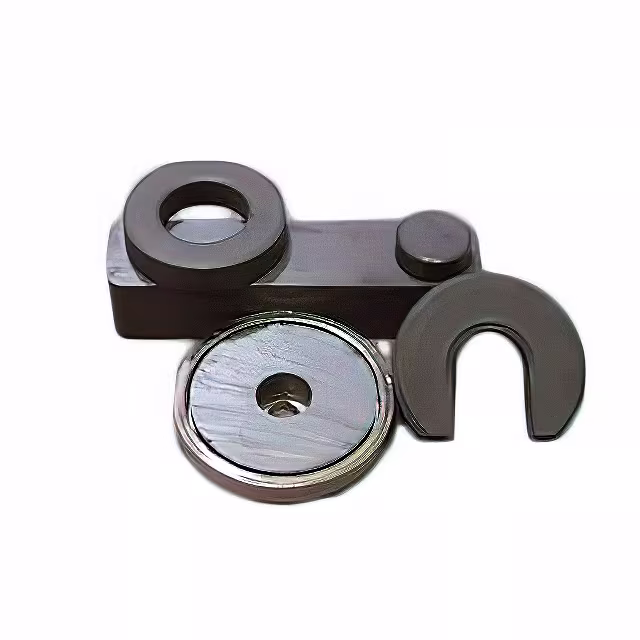

CM-0834MAGNET 2.878"D X 0.500"THICK RND |
1,000 |
|
Datasheet |
- | Box | Active | Round | - | Ceramic | - | C5 | - | 2.878" Dia x 0.500" H (73.10mm x 12.70mm) | - |
|
|
NE10012CSNP42MAGNET 1.000"D X 0.125"THICK RND |
400 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial, Pot | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 1.000" Dia x 0.125" H (25.40mm x 3.18mm) | 82.2°C |
|
MK-0026MAGNET 0.750"LX0.250"WX0.500"H |
1,000 |
|
Datasheet |
- | Box | Active | Rectangular | - | Neodymium | Nickel (Ni) | N42 | - | 0.750" L x 0.250" W x 0.500" H (19.05mm x 6.35mm x 12.70mm) | 120°C |
|
SP-0013MAGNET 2.030"D X 0.313"THICK CYL |
1,000 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Ceramic | Nickel (Ni) | C5 | - | 2.030" Dia x 0.313" H (51.56mm x 7.95mm) | 300°C |
