Multi Purpose Magnets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G16-A-0315-75-040MAGNET 1.005"D X 0.210"THICK CYL |
155 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0236-85-050MAGNET 1.005"D X 0.210"THICK CYL |
146 |
|
Datasheet |
G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
50.45-HF-32-7-5.5MAGNET 1.260"D X 0.276"THICK RND |
243 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Stainless Steel | - | - | 1.260" Dia x 0.276" H (32.00mm x 7.00mm) | 220°C (TA) |
|
52.2-ND-6MAGNET 0.236"D X 0.787"THICK CYL |
175 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.236" Dia x 0.787" H (6.00mm x 20.00mm) | 80°C (TA) |
|
NE10012NP52MAGNET 1.000"D X 0.125"THICK RND |
399 |
|
Datasheet |
Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N52 | - | 1.000" Dia x 0.125" H (25.40mm x 3.18mm) | 82.2°C |
|
CA-0216MAGNET 0.250" DIA X 3.250" L CYL |
992 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Alnico 5 (AlNiCo) | - | C5 | - | 0.250" Dia x 3.250" L (6.35mm x 82.55mm) | 525°C |
|
52.2-ND-8MAGNET 0.315"D X 0.787"THICK CYL |
194 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.315" Dia x 0.787" H (8.00mm x 20.00mm) | 80°C (TA) |
|
MX2500CERAMIC CUP MAGNET 2.63"DIA, 41# |
25,850 |
|
Datasheet |
- | Bag | Active | Round | Axial | Strontium Ferrite (SrFe) | NiCuNi | Grade 8 | - | - | 148°C (300°F) |
|
SP-0175MAGNET 3.200"D X 0.438"THICK CYL |
997 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Ceramic | Nickel (Ni) | C5 | - | 3.200" Dia x 0.438" H (81.28mm x 11.13mm) | 300°C |
|
SP-0017MAGNET 3.200"D X 0.438"THICK CYL |
996 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Ceramic | Nickel (Ni) | C5 | - | 3.200" Dia x 0.438" H (81.28mm x 11.13mm) | 300°C |
|
YB-038-1MAGNET 0.252"LX0.291"WX3.000"H |
9,996 |
|
Datasheet |
- | Bulk | Active | Rectangular | - | Neodymium Iron Boron (NdFeB) | Epoxy | N42H | 13000G, 13500G | 0.252" L x 0.291" W x 3.000" H (6.40mm x 7.40mm x 76.20mm) | 120°C (TA) |
|
YB-114-1MAGNET 0.750"D X 0.200"THICK CYL |
2,996 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Axial | Samarium Cobalt (SmCo5) | - | S22 | 9500G, 10000G | 0.750" Dia x 0.200" H (19.05mm x 5.08mm) | 250°C (TA) |
|
ALC1051MAGNET 0.394"D X 0.591"THICK CYL |
280 |
|
Datasheet |
- | Bulk | Active | Cylindrical | Diametric | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N42SH | 12900G, 13200G | 0.394" Dia x 0.197" H (10.00mm x 5.00mm) | 150°C (TA) |
|

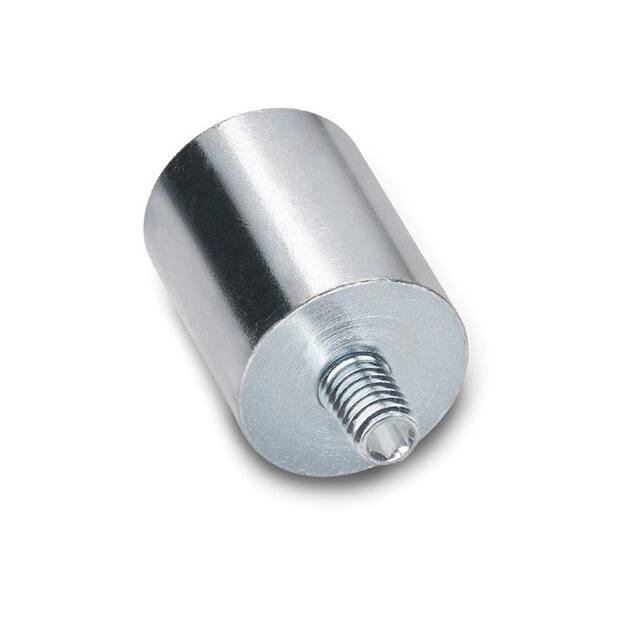

52.4-ND-6-M3-EMAGNET 0.236"D X 0.787"THICK CYL |
193 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.236" Dia x 0.787" H (6.00mm x 20.00mm) | 80°C (TA) |
|

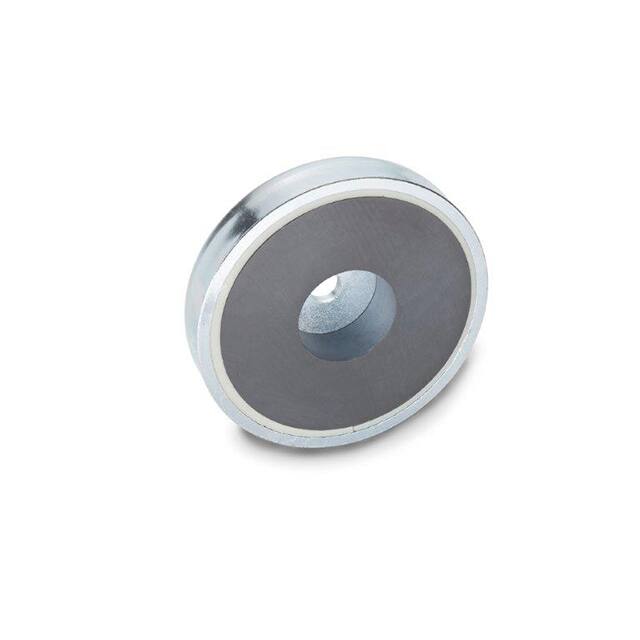

50.4-HF-40-8-5.5MAGNET 1.575"D X 0.315"THICK RND |
323 |
|
Datasheet |
- | Box | Active | Round | - | Ferrite | Steel, Zinc | - | - | 1.575" Dia x 0.315" H (40.00mm x 8.00mm) | 200°C (TA) |
|
|
CMP7512CSP2N42MAGNET 0.750"D X 0.125"THICK RND |
199 |
|
Datasheet |
Max-Attach® | Bag | Active | Round | Diametric | Neodymium Iron Boron (NdFeB) | NiCuNi | N42 | - | 0.750" Dia x 0.125" H (19.05mm x 3.18mm) | 82.2°C |
|
52.2-ND-10MAGNET 0.394"D X 0.787"THICK CYL |
110 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.394" Dia x 0.787" H (10.00mm x 20.00mm) | 80°C (TA) |
|
MK-0113MAGNET 1.000"D X 0.250"THICK CYL |
996 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium | Nickel (Ni) | N42 | - | 1.000" Dia x 0.250" H (25.40mm x 6.35mm) | 120°C |
|
52.2-ND-13MAGNET 0.512"D X 0.787"THICK CYL |
123 |
|
Datasheet |
- | Box | Active | Cylindrical | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.512" Dia x 0.787" H (13.00mm x 20.00mm) | 80°C (TA) |
|
50.1-ND-20-6MAGNET 0.787"D X 0.236"THICK RND |
321 |
|
Datasheet |
- | Box | Active | Round | - | Neodymium Iron Boron (NdFeB) | Steel, Zinc | - | - | 0.787" Dia x 0.236" H (20.00mm x 6.00mm) | 80°C (TA) |
