| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

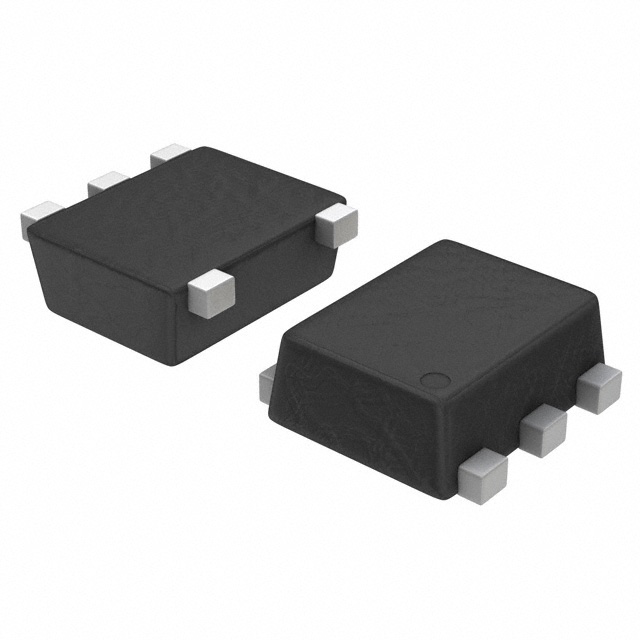

NL17SHT08P5T5GIC GATE AND 1CH 2-INP SOT953 |
0 |
|
Datasheet |
17SHT | SOT-953 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | - | 3V ~ 5.5V | 1 µA | 8mA, 8mA | 0.53V ~ 0.8V | 1.4V ~ 2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SOT-953 |
|
NLV14001UBDGIC GATE NOR 4CH 2-INP 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14011UBDGIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14012BDGIC GATE NAND 2CH 4-INP 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14025BDGIC GATE NOR 3CH 3-INP 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
NLV14049UBDGIC INVERTER 6CH 1-INP 16SOIC |
0 |
|
Datasheet |
4000B | 16-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
|
NLV14071BDGIC GATE OR 4CH 2-INP 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
NLV14093BDGIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
NLV14106BDGIC INVERT SCHMITT 6CH 1IN 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
NLV14584BDGIC INVERT SCHMITT 6CH 1IN 14SOIC |
0 |
|
- |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.6V ~ 4.6V | 3.4V ~ 10.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
74HCT20D-Q100,118IC GATE NAND 2CH 4-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 4 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 5.2mA | 0.8V | 2V | 28ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HCT4002D-Q100,11IC GATE NOR 2CH 4-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 2 | 4 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
74LVC32ADB-Q100JIC GATE OR 4CH 2-INP 14SSOP |
0 |
|
Datasheet |
74LVC | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.8ns @ 3.3V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SSOP |
|
74AHCT2G00DP-Q100HIC GATE NAND 2CH 2-INP 8TSSOP |
0 |
|
Datasheet |
74AHCT | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
|
74AHCT3G04DP-Q100HIC INVERTER 3CH 3-INP 8TSSOP |
0 |
|
Datasheet |
74AHCT | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 3 | 3 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-TSSOP |
|
|
74HCT00D/AUJIC GATE NAND 4CH 2-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 20 µA | 4mA, 5.2mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT04D/AUJIC INVERTER 6CH 1-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 5.2mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74HCT04DB-Q100JIC INVERTER 6CH 1-INP 14SSOP |
0 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 5.2mA | 0.8V | 2V | 19ns @ 4.5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SSOP |
|
|
74HCT08D/AUJIC GATE AND 4CH 2-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 5.2mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74HCT14D/AUJIC INVERT SCHMITT 6CH 1-INP 14SO |
0 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 34ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
