Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AUP1G11GF,132IC GATE AND 1CH 3-INP 6XSON |
0 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 3 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.1ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
74LV02BQ,115IC GATE NOR 4CH 2-INP 14DHVQFN |
0 |
|
Datasheet |
74LV | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 1V ~ 5.5V | 40 µA | 12mA, 12mA | 0.3V ~ 0.8V | 0.9V ~ 2V | 6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
74LVC2G00GM,125IC GATE NAND 2CH 2-INP 8XQFN |
0 |
|
Datasheet |
74LVC | 8-XFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XQFN (1.6x1.6) |
|
|
74LVC2G14GF,132IC INVERT SCHMITT 2CH 2INP 6XSON |
0 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.25V ~ 1.2V | 1.7V ~ 3.8V | 4.7ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
HEF4069UBT,013IC INVERTER 6CH 1-INP 14SO |
0 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V | 30ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
HEF4069UBTT,112IC INVERTER 6CH 1-INP 14TSSOP |
0 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V | 30ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
TC4S30FT5LFTIC GATE XOR 1CH 2-INP SMV |
0 |
|
- |
TC4S | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
74AUP1G86GF,132IC GATE XOR 1CH 2-INP 6XSON |
0 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 7.1ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
74AUP2G08GD,125IC GATE AND 2CH 2-INP 8XSON |
0 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
74LV03D,112IC GATE NAND 4CH 2-INP 14SO |
0 |
|
Datasheet |
74LV | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 1V ~ 5.5V | 40 µA | 12mA, 12mA | 0.3V ~ 0.8V | 0.9V ~ 2V | 10ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74LVC1G38GF,132IC GATE NAND 1CH 2-INP 6XSON |
0 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Obsolete | NAND Gate | 1 | 2 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
74LVC2G86GD,125IC GATE XOR 2CH 2-INP 8XSON |
0 |
|
Datasheet |
74LVC | 8-XFDFN | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
74LVC3G14GD,125IC INVERT SCHMITT 3CH 3INP 8XSON |
0 |
|
Datasheet |
74LVC | 8-XFDFN | Tape & Reel (TR) | Obsolete | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 1.1V ~ 2.5V | 1.7V ~ 3.8V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
NLVVHC1G05DFT1GIC INVERTER 1CH 1-INP SC88A |
0 |
|
- |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | Open Drain | 2V ~ 5.5V | 1 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
TC7PG04AFE(TE85L,FIC INVERTER 2CH 2-INP ES6 |
0 |
|
- |
TC7PG | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | - | 0.9V ~ 3.6V | 1 µA | 8mA, 8mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.8ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | ES6 (1.6x1.6) |
|
MC74HC30ADTGIC GATE NAND 1CH 8-INP 14TSSOP |
0 |
|
- |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 30ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

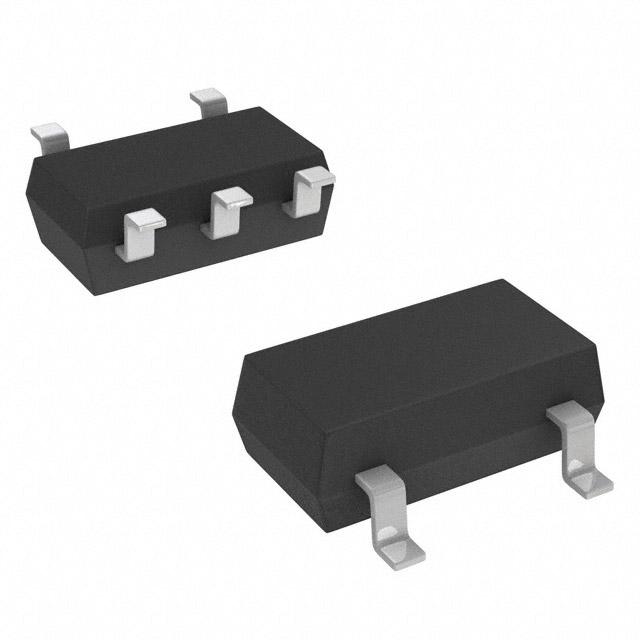

PI74ST1G08CEXIC GATE AND 1CH 2-INP SC70-5 |
0 |
|
Datasheet |
74ST | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | AND Gate | 1 | 2 | - | 1.8V ~ 3.6V | 2 µA | 24mA, 24mA | - | - | 3.8ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
PI74STX1GU04CEXIC INVERTER 1CH 1-INP SC70-5 |
0 |
|
Datasheet |
74STX | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 2 µA | 16mA, 16mA | - | - | 3.4ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
74HC21PW,112IC GATE AND 2CH 4-INP 14TSSOP |
0 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74AHCT2G00GD,125IC GATE NAND 2CH 2-INP 8XSON |
0 |
|
Datasheet |
74AHCT | 8-XFDFN | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
