Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HEF4069UBT,652IC INVERTER 6CH 1-INP 14SO |
0 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | - | 3V ~ 15V | 1 µA | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V | 30ns @ 15V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74AC10MTCXIC GATE NAND 3CH 3-INP 14TSSOP |
7,524 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
DM74ALS27MXIC GATE NOR 3CH 3-INP 14SOIC |
7,500 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 15ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
SN74ACT08IDRCTMOS LOGIC AUTOMOTIVE |
7,500 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74HC4049DR2IC BUFFER INVERT 6V |
7,500 |
|
Datasheet |
74HC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LCX00MCTIC GATE NAND |
7,050 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC74LCX08SDR2IC GATE AND |
7,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LVC04ADB,112IC INVERTER 6CH 1-INP 14SSOP |
0 |
|
Datasheet |
74LVC | 14-SSOP (0.209", 5.30mm Width) | Bulk | Obsolete | Inverter | 6 | 1 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 4.5ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
DM74AS04NIC INVERTER 6CH 1-INP 14DIP |
6,608 |
|
Datasheet |
74AS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 2mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
74AC20SCIC GATE NAND 2CH 4-INP 14SOIC |
6,360 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74HCT3G04GD,125IC INVERTER 3CH 3-INP 8XSON |
6,018 |
|
Datasheet |
74HCT | 8-XFDFN | Bulk | Active | Inverter | 3 | 3 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
NL27WZ06DFT2IC INVERTER DUAL OPEN DRN SC88 |
6,000 |
|
Datasheet |
27WZ | 6-TSSOP, SC-88, SOT-363 | Bulk | Active | Inverter | 2 | 1 | Open Drain | 1.65V ~ 5.5V | 1 µA | -, 32mA | - | - | 3ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
|

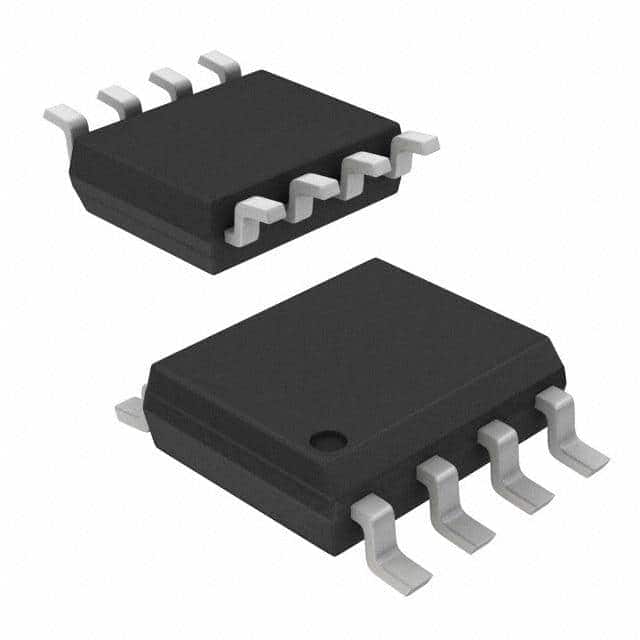

NL37WZ06UIC INVERTER TRPL OPEN DRAIN US8 |
6,000 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN74HCT04DBRIC INVERTER 6CH 1-INP 14SSOP |
6,000 |
|
Datasheet |
74HCT | 14-SSOP (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 5.5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
MC74AC14MIC SCHMITT TRIG HEX INV 14SOEIAJ |
5,913 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74HCT2G32GD,125IC GATE OR 2CH 2-INP 8XSON |
5,690 |
|
Datasheet |
74HCT | 8-XFDFN | Bulk | Active | OR Gate | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 24ns @ 4.5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
DM74AS00NIC GATE NAND 4CH 2-INP 14DIP |
5,475 |
|
Datasheet |
74AS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2mA, 20mA | 0.8V | 2V | 4.5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
|
74AHCT2G32GD,125IC GATE OR 2CH 2-INP 8XSON |
5,387 |
|
Datasheet |
74AHCT | 8-XFDFN | Bulk | Active | OR Gate | 2 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
DM74ALS27MIC GATE NOR 3CH 3-INP 14SOIC |
5,081 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 15ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
CD74AC20M96S2463IC GEN PURP |
5,000 |
|
Datasheet |
74AC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
