Gates and Inverters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74HC4075NIC GATE OR 3CH 3-INP 14DIP |
2,429 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Bulk | Active | OR Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
CD4023BEXS2064IC GATE NAND TRPL 3-INP |
2,225 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

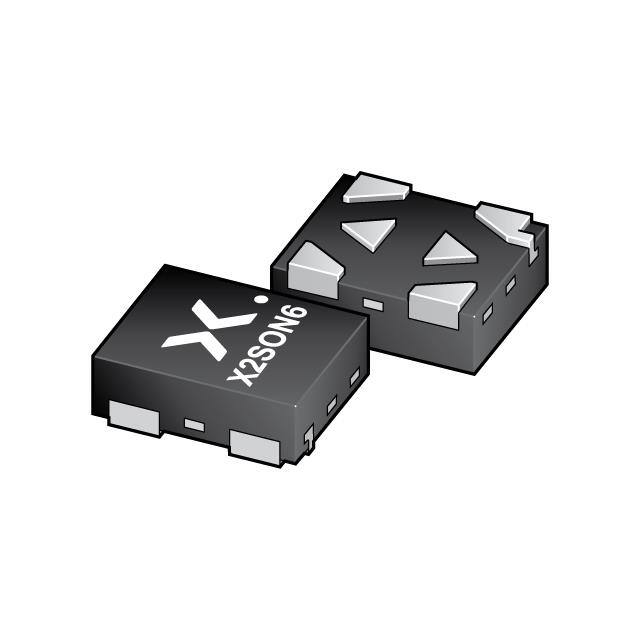

74AXP2G14GXZIC INVERT SCHMITT 2CH 2IN 6X2SON |
10,000 |
|
Datasheet |
74AXP | 6-XFDFN | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | Schmitt Trigger | 0.7V ~ 2.75V | 1 µA | 8mA, 8mA | - | - | 3.2ns @ 2.5V, 5pF | -40°C ~ 85°C | - | - | Surface Mount | 6-X2SON (1.0x0.8) |
|
SN74AHC1G02DBVRE4IC GATE NOR 1CH 2-INP SOT23-5 |
0 |
|
Datasheet |
74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | NOR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
SN74ALVC04DRG4IC INVERTER 6CH 1-INP 14SOIC |
0 |
|
Datasheet |
74ALVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 6 | 1 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.8ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
NL27WZ08USIC GATE AND 2CH 2-INP US8 |
593,117 |
|
Datasheet |
27WZ | 8-VFSOP (0.091", 2.30mm Width) | Bulk | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | US8 |
|
|
NL27WZ32USIC GATE OR 2CH 2-INP US8 |
0 |
|
Datasheet |
27WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
74AUP2G132GD,125IC GATE NAND 2CH 2-INP 8-XSON |
447,102 |
|
Datasheet |
74AUP | 8-XFDFN | Bulk | Active | NAND Gate | 2 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 7.8ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
74AUP2G86GD,125IC GATE XOR 2CH 2-INP 8-XSON |
367,044 |
|
Datasheet |
74AUP | 8-XFDFN | Bulk | Active | XOR (Exclusive OR) | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 7.1ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
74AUP2G32GD,125IC GATE OR 2CH 2-INP 8-XSON |
177,000 |
|
Datasheet |
74AUP | 8-XFDFN | Bulk | Active | OR Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
74LVC2G02GD,125IC GATE NOR 2CH 2-INP 8-XSON |
130,528 |
|
Datasheet |
74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74AHC2G00GD,125IC GATE NAND 2CH 2-INP 8XSON |
125,658 |
|
Datasheet |
74AHC | 8-XFDFN | Bulk | Active | NAND Gate | 2 | 2 | - | 2V ~ 5.5V | 10 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
74LVC3G14GD,125IC TRIGGER SCHMITT TRPL 8-XSON |
99,000 |
|
Datasheet |
74LVC | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
74AUP2G02GD,125IC GATE NOR 2CH 2-INP 8-XSON |
98,275 |
|
Datasheet |
74AUP | 8-XFDFN | Bulk | Active | NOR Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
NLV74HC03ADR2GIC GATE NAND 4CH 2-INP 14SOIC |
0 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 1 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 31ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
74AHC2G08GD,125IC GATE AND 2CH 2-INP 8-XSON |
70,844 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74LCX27MXIC GATE NOR 3CH 3-INP 14SOIC |
67,500 |
|
Datasheet |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.9ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74AUP2G38GD,125IC GATE NAND 2CH 2-INP 8XSON |
62,727 |
|
Datasheet |
74AUP | 8-XFDFN | Bulk | Active | NAND Gate | 2 | 2 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 12.7ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
|
74AHC3G14GD,125IC INVERT SCHMITT 3CH 3INP 8XSON |
61,403 |
|
Datasheet |
74AHC | 8-XFDFN | Bulk | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (2x3) |
|
SN74LS14ML1IC HEX INV SCHMITT TRIGGER DUAL |
60,000 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Gates and Inverters Electronic Components
Explore Gates and Inverters electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
