Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1CH5-4SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPDT | On-On | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.250" (6.35mm) | - |
|
|
TL4024-11102SWITCH SNAP ACTION 110V |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL4024-11103SWITCH SNAP ACTION 110V |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.290RSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.291RSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
614.2200.765SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
602EN600-6SWITCH AERO SEALED |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

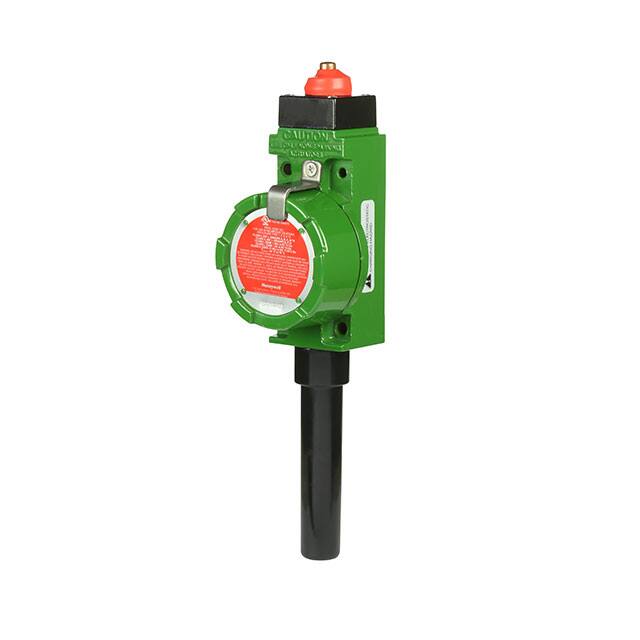

WBX1A12ABCSWITCH SNAP ACTION SPDT |
1 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | - | 2041gf | - | 2.281" (57.94mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 70°C |
|
|
616.1000.608FOOT SWITCH SINGLEPEDAL F1-SU1ZH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.355RFOOT SWITCHFS3SU1(3X)USTDCLRGD 1 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1EN537-6SWITCH LIMIT PB PNL MT DPDT 4A |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VB-4211ASWITCH SNAP ACT SPDTX4 0.1A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 4 | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.260" (32.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
616.2720.504FOOT SWITCH, DOUBLE PEDAL |
0 |
|
Datasheet |
- | Bulk | Active | 8PST-4NO/4NC | On-Off, Off-On | - | - | - | Foot Switch | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
9007FTUB12SWITCH LIMIT SPDT 12A 600V |
0 |
|
Datasheet |
FT | Box | Active | SPDT (DB/DM) | On-Mom | 12A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007FTUB10SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
17HM6SWITCH SNAP ACTION SPDT 1A 28V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 28 V | Lever, Straight | Chassis Mount | Solder Lug | - | Sealed - Hermetically | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -65°C ~ 121°C |
|

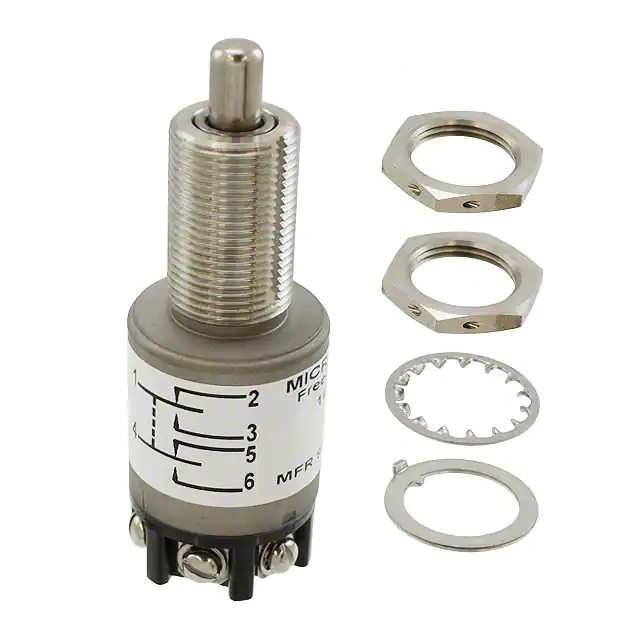

1EN1-SSWITCH SNAP ACTION SPDTX2 4A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | SPDT x 2 | On-Mom | 4A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.250" (6.35mm) | -54°C ~ 85°C |
|
|
4-1616336-550301076=MINI SWITCH (REPLACED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1EN222-RBSWITCH ENCLOSED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2HM1-3SWITCH SNAP ACTION SPDT 5A 115V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 5A (AC), 2A (DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Cable Leads | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -65°C ~ 121°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
