Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
11HM41SWITCH SIM ROLL LEVER SPDT 3A |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | - | - | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.003" (0.075mm) | 0.003" (0.076mm) | -184°C ~ 121°C |
|
|
L1492MSWITCH SNAP ACTION DPST 20A 120V |
0 |
|
- |
L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Top Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|

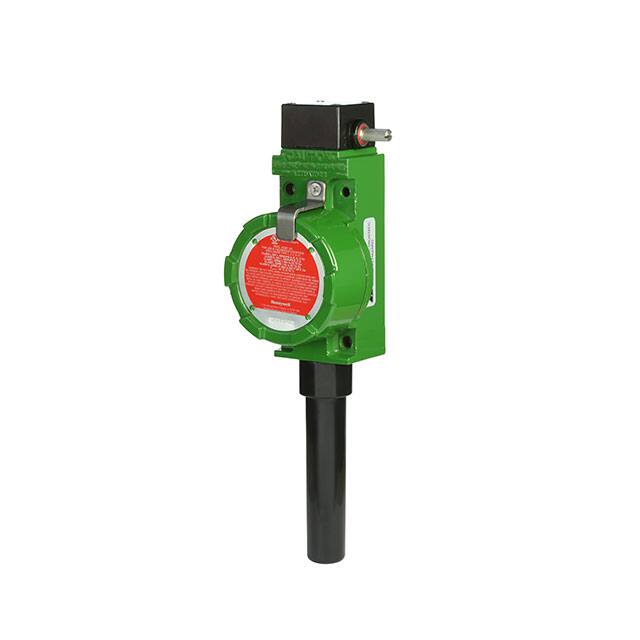

WBX1A12ABA3SWITCH SNAP ACTION SPDT |
1 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | Actuator Mounted Right Side | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|
|
XCRE181TGLIMIT SWITCH METAL CROSS RODS 6M |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
18CX10ESWITCH SNAP ACTION LIMIT |
0 |
|
Datasheet |
CX | Bulk | Obsolete | - | - | - | - | - | - | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 50gfm | - | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
|
LSXA3K-2JSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
4HS19SWITCH SNAP ACT SPDT 0.5A 125V |
0 |
|
Datasheet |
HS | Bulk | Active | SPDT | On-Mom | 500mA (AC), 10A (DC) | 125 V | 28 V | Lever, Roller | Chassis Mount | Wire Leads | - | - | 283 ~ 624gf | 113gf | 0.806" (20.5mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.010" (0.25mm) | -54°C ~ 105°C |
|
|
L300WS1M2SWITCH LIMIT DPST 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPST-NO (DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L300WS1M1SWITCH LIMIT 12A 600V |
0 |
|
Datasheet |
L300 | Bulk | Active | - | - | 12A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -18°C ~ 93°C |
|
|
4HS155-320SWITCH SNAP ACT SPDT 0.5A 125V |
0 |
|
Datasheet |
HS | Bulk | Active | SPDT | On-Mom | 500mA (AC), 10A (DC) | 125 V | 28 V | Lever, Roller | Chassis Mount | Wire Leads | - | - | 283 ~ 624gf | 113gf | 1.070" (27.2mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -54°C ~ 121°C |
|
|
9007TSA1SWITCH LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
201LS6SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | Steel Roller, Front Mounted | 19gfm | 3.225gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
|
51.262RFOOT SWITCHFS2U1DU1S(2X)USTDGDAT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AW48SWITCH LIMIT 10A 600V |
0 |
|
Datasheet |
Square D 9007AW | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL4024-30242SWITCH SNAP ACTION 24V |
1 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L100WTLN2C2M41SWITCH LIMIT 3PDT 6A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | 3PDT (DB/DM) | On-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
24CE2-S2SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
24CE | Bulk | Active | SPDT (BBM) | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 2300gf | - | - | 0.087" (2.2mm) | - | 0.040" (1.0mm) | 0°C ~ 70°C |
|
|
21CH186-6SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | SPST-NC | On-Off | 4A (DC) | - | 28 V | Lever, Roller | Panel Mount | Wire Leads | - | - | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.51mm) | 0.250" (6.35mm) | - |
|
|
LSXYAC3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Fluorocarbon Sealed | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 121°C |
|
|
616.2840.655FOOT SWITCH DOUBLEPEDAL F2-SU1YS |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
