Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L100WDL2M8SWITCH LIMIT DPST-NC 20A 120V |
0 |
|
Datasheet |
Square D L100 | Box | Active | DPST-NC | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
3LS1-4PGSWITCH SNAP ACTION SPDT 10A 120V |
1 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
601.9261.018SWITCH SAFETY HINGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9261.014SWITCH SAFETY HINGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9261.016SWITCH SAFETY HINGE |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSQ037SWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | - | - | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 9° | 3° | 66° | -12°C ~ 121°C |
|
OP-AR400SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
OP | Bulk | Active | SPDT | On-Mom | 5A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | - | - | - | 226 ~ 567gf | - | - | 0.219" (5.6mm) | 0.007" (0.18mm) | 90° | - |
|
|
L300WN2M16SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L100WS2PF2SWITCH LIMIT DPST 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPST-NO (DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|

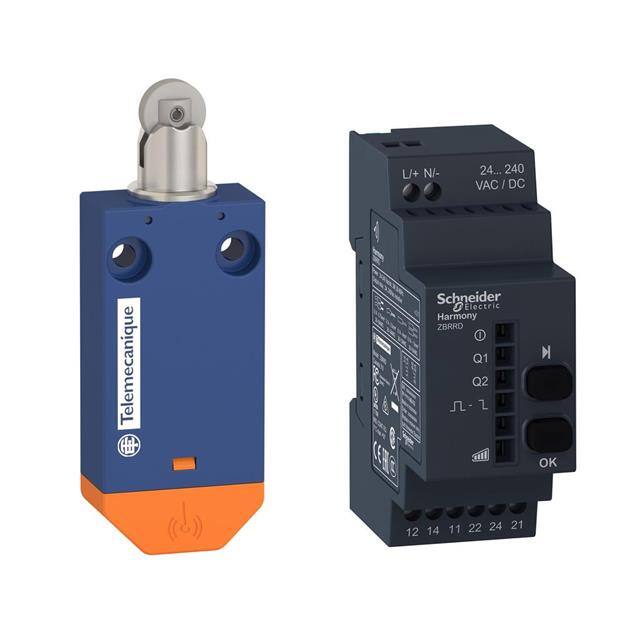

XCMWD02SWITCH LIMIT WIRELESS PACK |
0 |
|
Datasheet |
XCMW | Box | Active | - | - | - | - | - | Roller Plunger | Chassis Mount | Wireless | - | - | - | - | - | - | - | - | - |
|

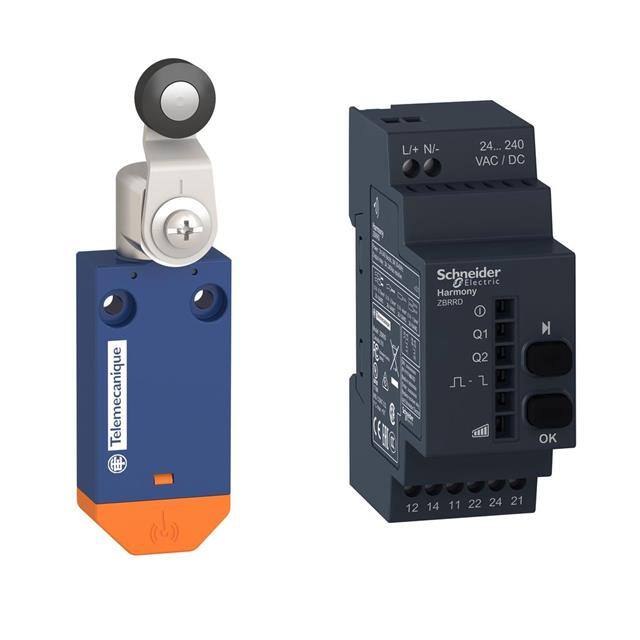

XCMWD15SWITCH LIMIT WIRELESS PACK |
0 |
|
Datasheet |
XCMW | Box | Active | - | - | - | - | - | Side Rotary, Roller | Chassis Mount | Wireless | - | - | - | - | - | - | - | - | - |
|
|
BAF1-3RN2X-RHSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-On | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 680gf | - | 2.390" (60.7mm) | 0.219" (5.6mm) | - | 0.250" (6.35mm) | -32°C ~ 71°C |
|
|
4HS154HS HERMETICALLY SEALED BASIC SW |
1 |
|
- |
HS | Bulk | Obsolete | SPDT | On-Mom | 500mA (AC), 25A (DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Wire Leads | - | - | 113 ~ 567gf | 57gf | 0.602" (15.3mm) | - | 0.100" (2.54mm) | - | -54°C ~ 121°C |
|
|
11CX12-D01SWITCH SNAP ACT SPDTX2 15A 120V |
0 |
|
Datasheet |
CX | Bulk | Obsolete | SPDT x 2 | On-On | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Explosion Proof | 50gfm | - | - | 15° | 10° | 90° | -25°C ~ 85°C |
|
LSYEC3KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 2720gf | - | - | 0.100" (2.5mm) | 0.015" (0.38mm) | 0.190" (4.8mm) | -12°C ~ 105°C |
|
|
14XE65SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
|
WLG2-145LD3-M1J-NSWITCH LIMIT LED PREWIRED |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLD2-RP60LD3-N 5MSWITCH SNAP ACTION AIRT LED 5M |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1HS181SWITCH SNAP ACTION SPDT 15A 28V |
0 |
|
Datasheet |
HS | Bulk | Active | SPDT | On-Mom | 15A (DC) | - | 28 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 283 ~ 624gf | 113gf | 0.500" (12.7mm) | 0.065" (1.65mm) | 0.009" (0.23mm) | 0.025" (0.6mm) | -54°C ~ 121°C |
|
|
WLGCA2-RP60LD3SWITCH LIMIT SPDT 5A 125V |
0 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC), 400mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1360gf | 150gf | - | 5° | 3° | 40° | -10°C ~ 80°C |
