Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1HS41SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
HS | Bulk | Active | SPDT | On-Mom | 1A (AC), 5A (DC) | 125 V | 28 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 113 ~ 567gf | 57gf | 0.533" (13.54mm) | - | 0.100" (2.54mm) | 0.062" (1.6mm) | -55°C ~ 125°C |
|
|
WGLA1A00AA4JSWITCH SNAP ACTION WIRELESS |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.462RFOOT SWITCHFL1U1DU1SUSTDCLRGDA/T |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4A-2P01NSWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
D4A | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC), 3A (DC) | 125 V | 24 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 40gfm | 5.103gfm | - | 15° | 7° | 70° | -10°C ~ 80°C |
|

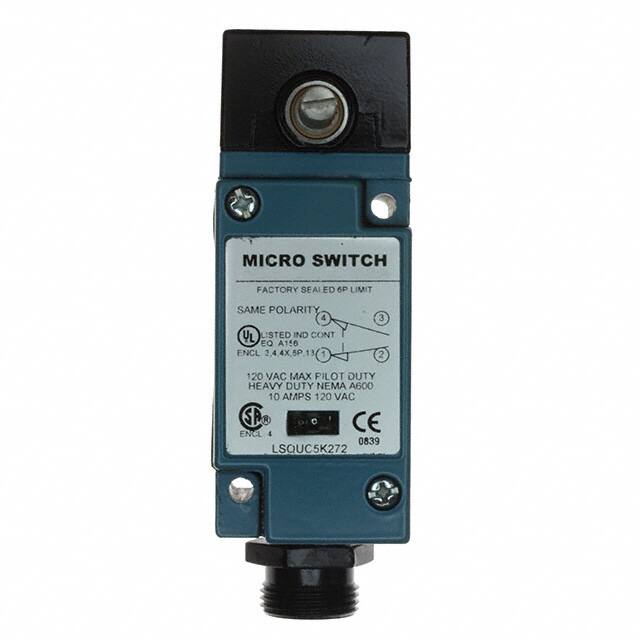

LSQUC5K272SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSQ | Bulk | Active | SPDT | On-Mom | 10A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
XCKMR44D1H29SWITCH LIMIT 4PST 3A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKMR44D2H29SWITCH LIMIT 4PST 3A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
616.1700.483FOOT SWITCH SINGLEPEDAL |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
616.1000.697FOOT SWITCH 4PST 3A 240V |
0 |
|
Datasheet |
F1 UN | Bulk | Active | 4PST-3NC/1NO | On-Off, Off-On | 3A (AC) | 240 V | - | Foot Switch | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
51.207RFOOT SWITCHFS2SU1S(2X)STDCLR 1NO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V3L-1376SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 142gf | - | 0.808" (20.52mm) | 0.120" (3.0mm) | 0.040" (1.02mm) | 0.050" (1.27mm) | - |
|
LSYAC5KP-FPSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 46gfm | - | - | 15° | 5° | 60° | -12°C ~ 105°C |
|
3LS1-4CSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 4082gf | 907gf | 2.130" (54.1mm) | 0.110" (2.8mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
9007C54CS17L3SWITCH LIMIT SPDT 10A 600V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
51.255RFOOT SWITCHFS2SU1(2X)USTDCLRGD 1 |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91SE1-6SEALED SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VB-3111SWITCH SNAP ACT SPDTX3 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 3 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.024" (26.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-3211SWITCH SNAP ACT SPDTX3 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 3 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.260" (32.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
VB-3241SWITCH SNAP ACT SPDTX3 10A 125V |
0 |
|
Datasheet |
VB | Bulk | Active | SPDT x 3 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 0.748" (19.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
3SE03BR16PSWITCH LIMIT SIDE ROTARY |
0 |
|
- |
- | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
