Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1LS58SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 51gfm | 8.640gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|

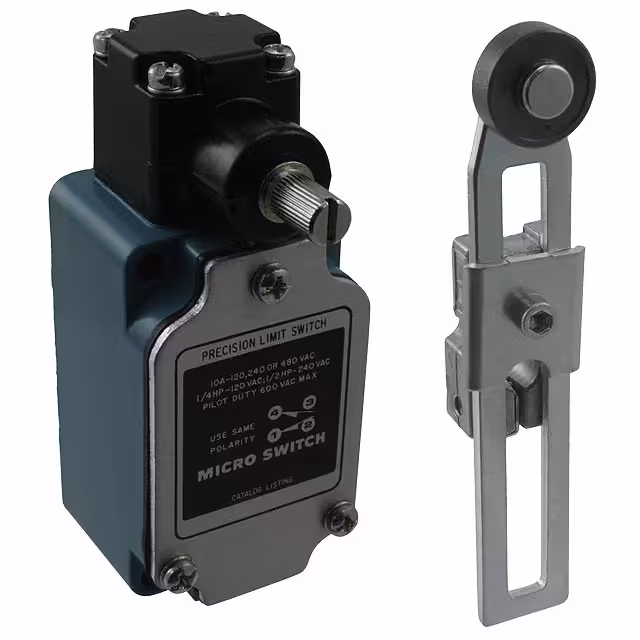

1LS59SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 19gfm | 3.225gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
D4A-3314NSWITCH LIMIT FLEX PLST ROD DPDT |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
WLCA12-140K41-NSWITCH LIMIT ADJ RLR AIRTIGHT CB |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GSXC46A1ESWITCH ROTARY SIDE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HL100WN2M16SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
Square D HL100 | Box | Active | DPST-NO (DM) | Off-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -18°C ~ 177°C |
|
|
LSYPC2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 9° | 4° | 66° | -12°C ~ 121°C |
|
|
L1472MSWITCH SNAP ACTION DPST 20A 120V |
0 |
|
- |
L100/300 | Bulk | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
BAF1-3RNX1SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-On | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Reset Plunger on Bottom | 794gf | - | 2.094" (53.2mm) | 0.094" (2.4mm) | - | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
D4SL-3QDA-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3RDA-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4C-3302-MSWITCH SNAP ACTION SPDT 4A 30V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67F - Dust Tight, Oil Resistant, Waterproof | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
|
D4C-1761-F3 5MSWITCH LIMIT SPDT 5A 250V |
0 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | - | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 70°C |
|
|
XC2JC10131SWITCH LIMIT SPDT 3A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
606.1600.435FOOT SWITCH WITH COVER |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LZJ3-7MSWITCH SNAP ACTION ENCLOSED |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3NDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

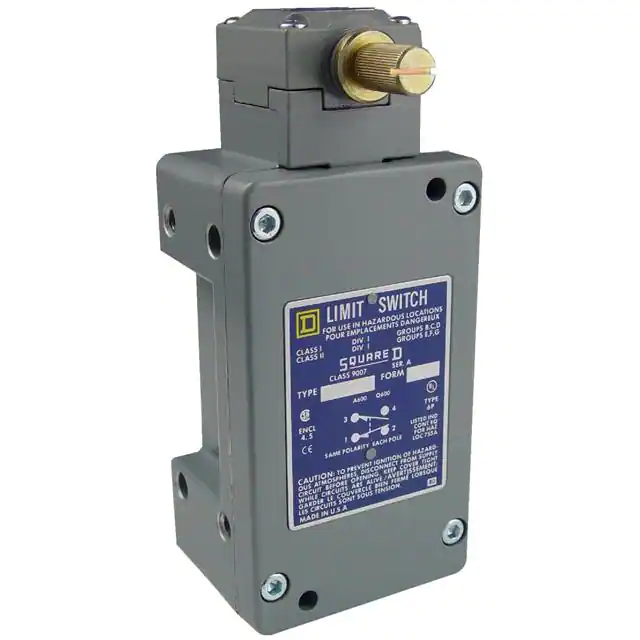

9007CR53CSWITCH NEMA LIMIT DPST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007TUD1SWITCH LIMIT 12A 600V |
0 |
|
Datasheet |
T | Box | Active | - | - | 12A (AC) | 600 V | - | - | - | - | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007TSC1SWITCH LIMIT 12A 600V |
0 |
|
Datasheet |
T | Box | Active | - | - | 12A (AC) | 600 V | - | - | - | - | IP65/IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
