Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
606.1500.559FOOT SWITCH |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007C54DM11SWITCH LIMIT SPDT 1.2A 600V |
0 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

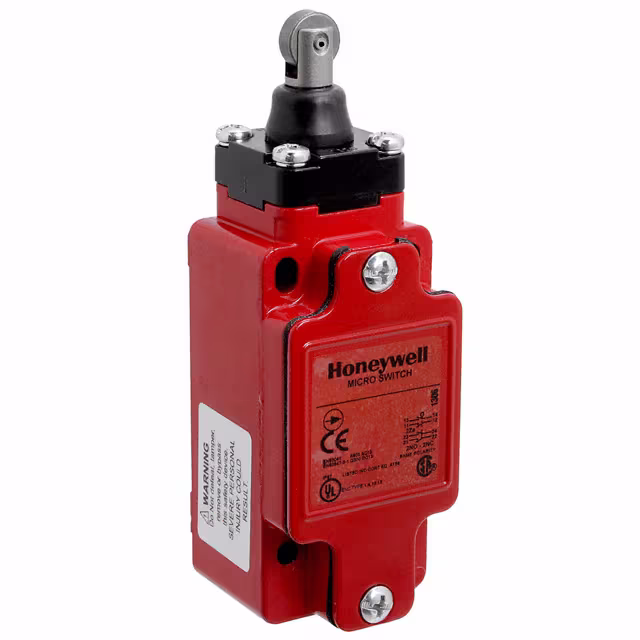

GSAA22CSWITCH SNAP ACTION 4PST 0.1A 50V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 100mA (AC/DC) | 50 V | 50 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | 3773gf | 1.890" (48.0mm) | - | 0.035" (0.9mm) | - | -25°C ~ 85°C |
|
|
D5C-1DS0 5MSWITCH SNAP ACTION 0.2A 24V |
0 |
|
Datasheet |
D5C | Bulk | Obsolete | - | - | 200mA (DC) | - | 24 V | Spring, Cat Whisker | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
TP70-1A1SWITCH SNAP ACTION DPST 10A 120V |
0 |
|
Datasheet |
TP70 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 2.5A (DC) | 120 V | 125 V | Spring, Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 153gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
|
3SE03AS1SWITCH LIMIT PLAIN SIDE PLNGR |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Side Plunger | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
LSYDC5KY-FPSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 12' | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 105°C |
|
3SF12441LC051BA2SWITCH LIMIT RND PLUNGER 2NC |
0 |
|
Datasheet |
SIRIUS | Box | Active | DPST-NC | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
|
D4SL-3JDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3KDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-3LDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
2LS111SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Plunger | 1020gf | 227gf | 1.330" (33.8mm) | 0.065" (1.65mm) | 0.009" (0.23mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
|
LSYAB6B-1BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
612.1194.816SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSXYDB3ESWITCH LIMIT |
0 |
|
- |
* | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

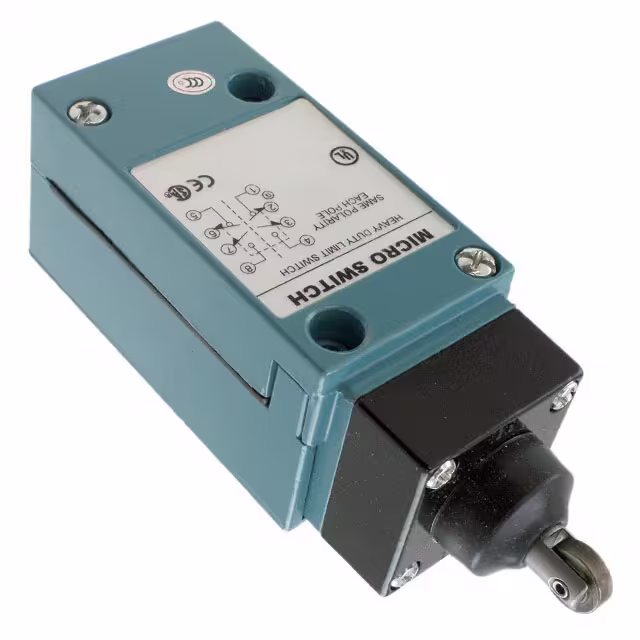

LSD6BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSD2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSW2BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
9007CR53DSWITCH NEMA LIMIT DPST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007CR53EDSWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
Square D 9007CR | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Adjustable Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
