Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4SL-4PDA-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4PDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4QDA-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4QDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4RDA-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4SL-4RDG-DSWITCH SNAP ACTION |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYEC1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Plunger | Chassis Mount | Plug In | - | - | 2720gf | - | - | 0.100" (2.5mm) | 0.025" (0.6mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|

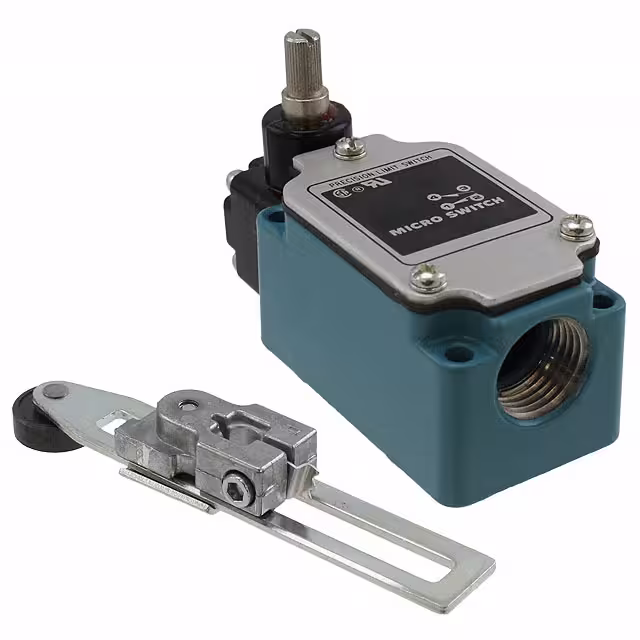

1LS3-LSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 125 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller, Front Mounted | 51gfm | 8.640gfm | 20° | 20° | 12° | 30° | -29°C ~ 71°C |
|
|
5SE1-12SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -26°C ~ 85°C |
|
|
T4016-040SWITCH SNAP ACTION NO ACT 3X0.5" |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4F-402-3DSWITCH SNAP ACT 4PST-NC 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | 4PST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|

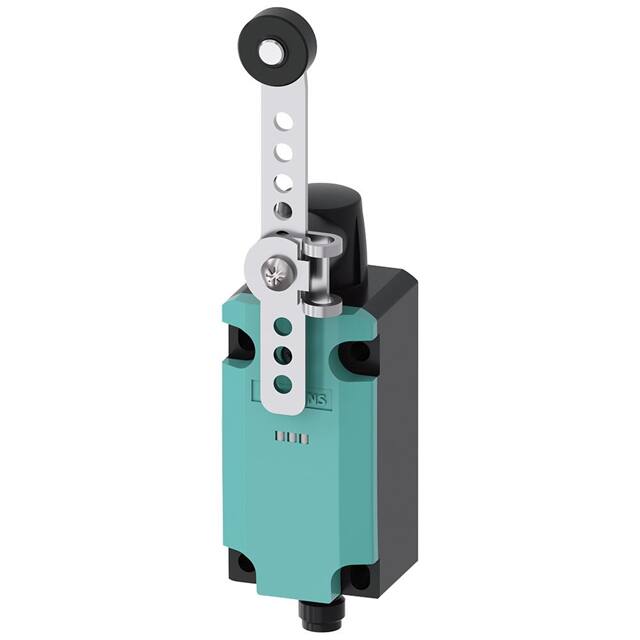

3SE51141CH601AF3SWITCH SNAP ACTION DPST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 60°C |
|
|
XC2JC162SWITCH LIMIT SPDT 3A 240V |
0 |
|
Datasheet |
OsiSense XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
1LS47SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 19gfm | 4.078gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
|
L100WNCS2M34SWITCH LIMIT DPST 20A 120V |
0 |
|
Datasheet |
L100/300 | Bulk | Active | DPST-NC (DB) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L525WDR2M59SWITCH LIMIT DPST 20A 120V |
0 |
|
Datasheet |
Square D | Bulk | Active | DPST-NC (DB) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
LSV6BSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Plunger | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
LSV4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

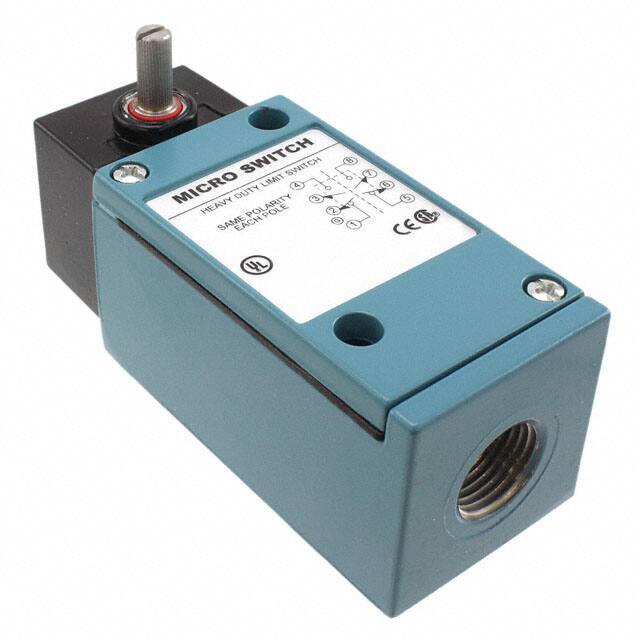

LSYPB7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 9° | 4° | 66° | -40°C ~ 121°C |
|
|
3SE03AT16PSWITCH LIMIT PLAIN TOP PLUNGER |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | - | - | - | - | - | - | - | - | - |
