Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
614.1135.653SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.114RFOOT SWITCHFS1SU1DSU1STDCLR 2X1N |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMW1H0MINI WIRELESS LS M18 METAL END P |
0 |
|
Datasheet |
XCMW | Bulk | Active | - | - | - | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 55°C |
|
|
LSJ5A-7NSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cable | Chassis Mount | Plug In | - | - | 198gf | - | - | 1.500" (38.0mm) | - | - | -12°C ~ 93°C |
|
|
51.463RFOOT SWITCHFL1SU2USTDCLRGD 2NO/2 |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AEQ4101LIMIT SWITCH 600V 10A LOW TEMP 9 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
LSYJB6B-7MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Wire | Chassis Mount | Plug In | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -40°C ~ 121°C |
|
LSJ3K-7NSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cable | Chassis Mount | Screw Terminal | - | - | 198gf | - | - | 1.500" (38.0mm) | - | - | -12°C ~ 93°C |
|

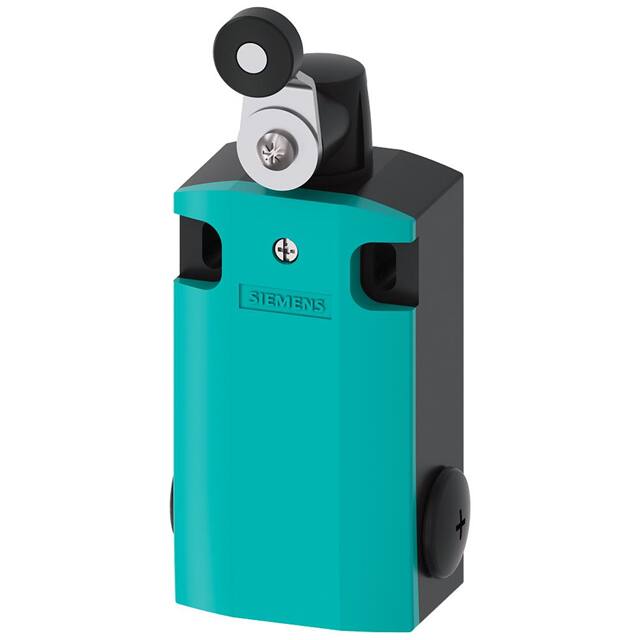

3SE51620CH01SWITCH LIMIT 4PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
LSXB4L-4MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Top Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | - | Explosion Proof | 28gfm | - | - | 25° | 12° | 100° | -1°C ~ 121°C |
|
|
XCKJ20511H7SWITCH LIMIT SPDT 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

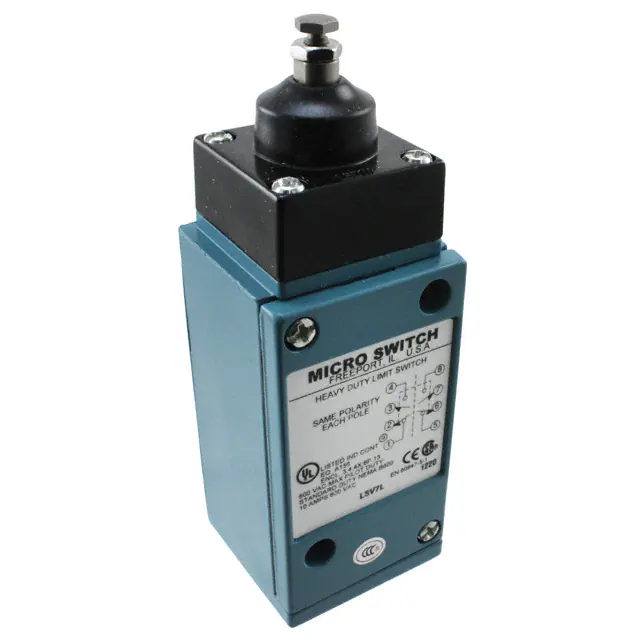

LSV7LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|
|
31CX1SWITCH SNAP ACTION SPDT 15A 120V |
0 |
|
Datasheet |
CX | Bulk | Discontinued at Digi-Key | SPDT | On-On | 15A (AC), 500mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
LSK2B-8CSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Plug In | - | - | 198gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
LSK6B-8CSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Coil | Chassis Mount | Plug In | - | - | 198gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
DTF2-2RN-RHSWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
- |
DTF | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 1134gf | 113gf | 2.050" (52.1mm) | 0.140" (3.6mm) | 0.060" (1.5mm) | 0.156" (3.96mm) | -32°C ~ 71°C |
|

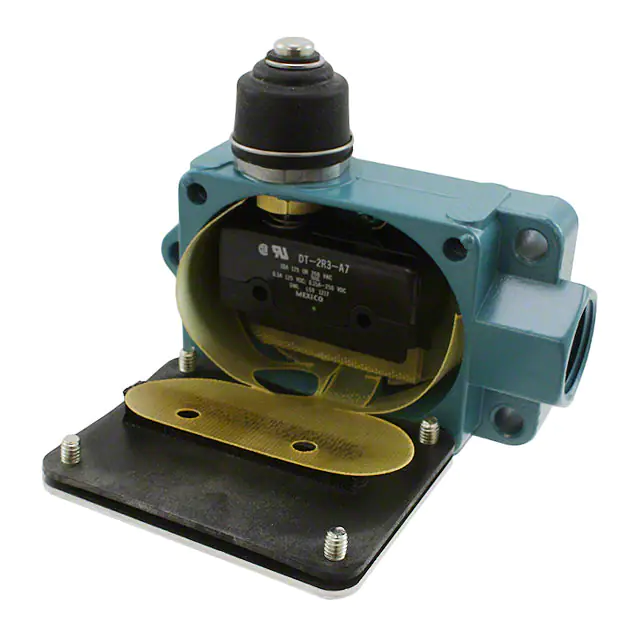

DTF2-2RN-LHSWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
- |
DTF | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 1134gf | 113gf | 2.050" (52.1mm) | 0.140" (3.6mm) | 0.060" (1.5mm) | 0.156" (3.96mm) | -32°C ~ 71°C |
|
|
D5A-7413SWITCH SNAP ACTION PNP |
1 |
|
Datasheet |
D5A | Bulk | Last Time Buy | Transistor Output, PNP | - | - | - | - | Round (Pin Plunger) | Panel Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Cable Length 1m | 250gf | - | 0.173" (4.4mm) | 0.040" (1.0mm) | 0.0002" (0.005mm) | 0.079" (2.0mm) | -20°C ~ 75°C |
|
|
D4ER-1D21N-DTK1EJSWITCH LIMIT OIL RESISTANT 1A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4ER-1E22N-DTK1EJSWITCH LIMIT OIL RESISTANT 1A |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
