Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSA2B-1ASWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
LSA6B-1ASWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Plug In | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
LSA4L-1ASWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
3SE03BL1SWITCH LIMIT SIDE ROTARY |
0 |
|
- |
- | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSA2SSWITCH SNAP ACT DPDT 0.05A 250V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 50mA (AC/DC) | 250 V | 60 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 15° | 7° | 60° | -12°C ~ 121°C |
|
|
51.115RFOOT SWITCHFS1SU2SSTDCLR 2NO/2NC |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSYCC1ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Round (Pin Plunger) | Chassis Mount | Plug In | - | - | 1814gf | - | - | 0.071" (1.8mm) | 0.016" (0.4mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
LSJ2B-7MSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Wire | Chassis Mount | Plug In | - | - | 141gf | - | - | 4.000" (102mm) | - | - | -12°C ~ 93°C |
|
|
51.724BFOOT SWITCH 2XSPDT MOM 2STG2MCAI |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKML121SWITCH LIMIT 10A 240V |
0 |
|
Datasheet |
XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
LSK8A-8ASWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Cat Whisker | Chassis Mount | Plug In | - | Status Indicator | 141gf | - | - | 2.000" (50.8mm) | - | - | -12°C ~ 93°C |
|
|
LSYAB4L24-1SWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Counterclockwise Operation Only | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
LSJ6B-7ASWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Spring, Rod | Chassis Mount | Plug In | - | - | 283gf | - | - | 1.000" (25.4mm) | - | - | -12°C ~ 93°C |
|
|
3SE03AH1SWITCH LIMIT 2-SIDED PLUNGER |
0 |
|
- |
- | Box | Active | DPST-NO/NC | On-Off, Off-On | - | - | - | Side Plunger | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSP4L-4NSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 9° | 4° | 66° | -12°C ~ 121°C |
|

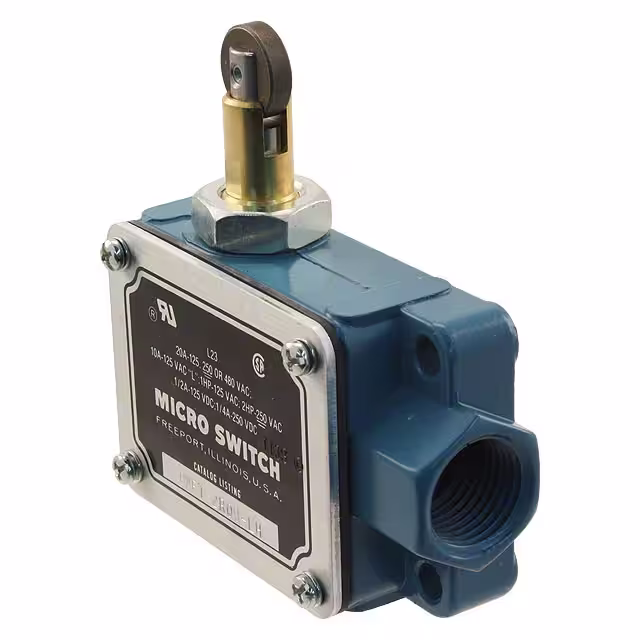

BAF1-2RQ9-LHSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Actuator Mounted Left Side | 1134gf | 340gf | 2.547" (64.7mm) | 0.094" (2.4mm) | 0.010" (0.25mm) | 0.156" (3.96mm) | -32°C ~ 71°C |
|
BAF1-2RQ9-RHSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BAF1 | Bulk | Not For New Designs | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Actuator Mounted Right Side | 1134gf | 340gf | 2.547" (64.7mm) | 0.094" (2.4mm) | 0.010" (0.25mm) | 0.156" (3.96mm) | -32°C ~ 71°C |
|

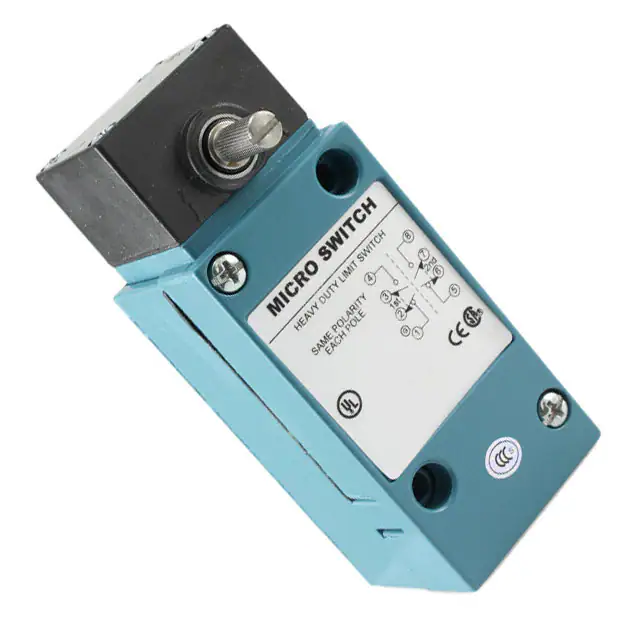

LSL2CSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | Sequence Action | 46gfm | - | - | 15° | 5° | 48° | -12°C ~ 121°C |
|
|
11SX50-H58SUBMINIATURE BASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
13SX51-H58SUBMINIATURE BASIC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
