Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZE6-2RN2-SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 283 ~ 567gf | 170gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
MBH2731SWITCH PLUNGER ASSMBLY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKJ110541H29SWITCH LIMIT SPDT 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | SPDT | On-On | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
3SE51220LA001AJ0SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -40°C ~ 85°C |
|
3SE51120LA001AJ0SWITCH LIMIT 3PST 6A 125V |
0 |
|
Datasheet |
SIRIUS | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|

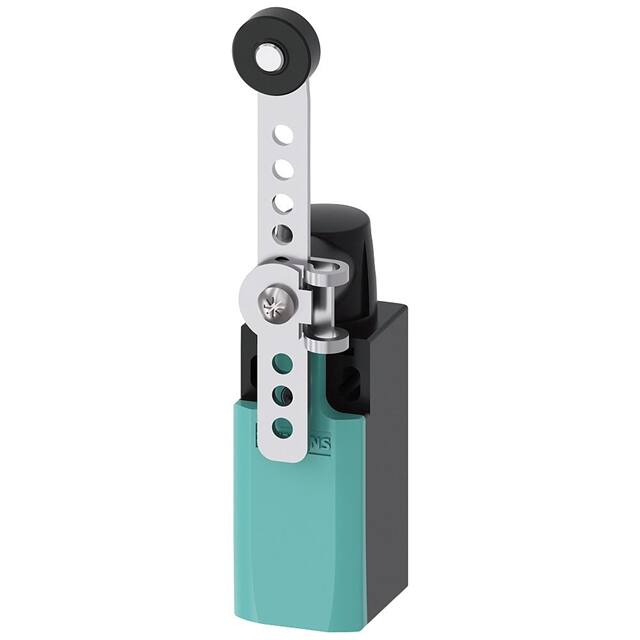

3SE52120KK60SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
44505-0450SWITCH SNAP ACT DPST-NC 6A 120V |
0 |
|
- |
SL-STI | Bulk | Obsolete | DPST-NC | On-Mom | 6A (AC), 1A (DC) | 120 V | 24 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
1XE214SWITCH SNAP ACT SPST-NC 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Active | SPST-NC | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|
9007ML02S0300SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
Square D 9007ML | Box | Active | DPST-NO/NC | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
LSQA3K163SWITCH LEVER FOR ROTARY |
0 |
|
Datasheet |
LSQ | Bulk | Active | SPDT (DB/DM) | On-On | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -12°C ~ 121°C |
|
|
1SE113-3SWITCH SNAP ACTION SPDT 7A 28V |
0 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -53°C ~ 105°C |
|
|
XCKD2149P16SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.1385.634SWITCH LIMIT METAL BODY |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
604.1113.006SWITCH LIMIT METAL BODY |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1XE24-2SWITCH SNAP ACT SPST-NC 7A 28V |
0 |
|
Datasheet |
XE | Bulk | Active | SPST-NC | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 142 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 105°C |
|

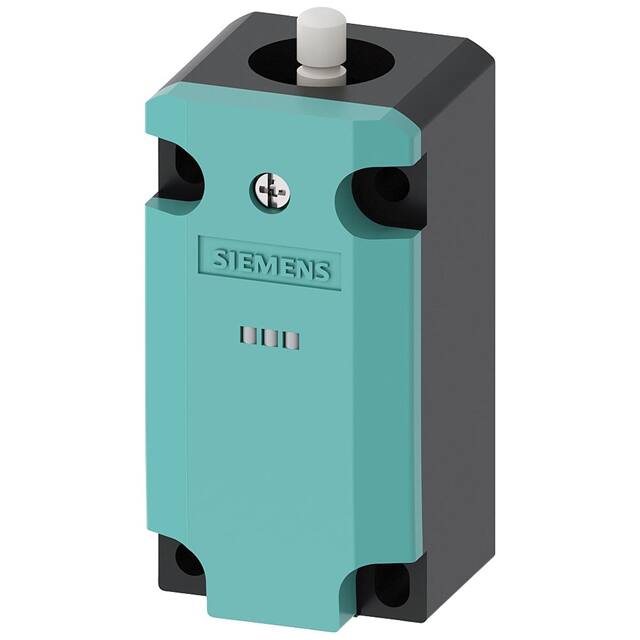

3SE51323KA00SWITCH LIMIT 3PST 6A 230V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC) | 230 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
WLNJ-2-TSSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 1.575" (40.0mm) | - | - | -10°C ~ 80°C |
|
|
618.1135.121SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
602.1191.099SWITCH LIMIT METAL BODY |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLHB01CSWITCH SNAP ACTION SPDT 6A 30V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1632gf | - | 1.380" (35.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
