Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2RQ1004-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
606.9200.006FOOT SWITCH 4PST 4A 240V |
0 |
|
- |
- | Bulk | Active | 4PST-2NO/2NC | On-Off, Off-On | 4A (AC) | 240 V | - | Foot Switch | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -20°C ~ 80°C |
|

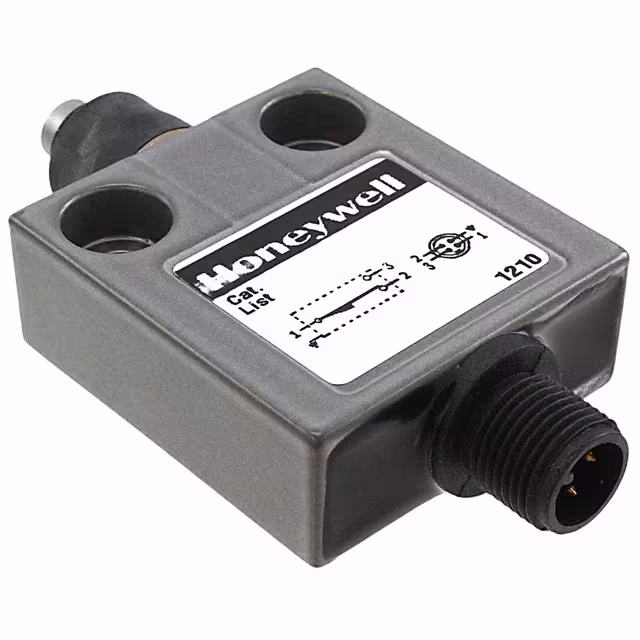

914CE18-QSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
914CE | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 2300gf | 450gf | 0.980" (24.9mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
602.1189.128SWITCH LIMIT METAL BODY |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZCMD4DL1LIMIT SWITCH 2NC+2NO SILVER SNAP |
0 |
|
Datasheet |
XC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | - | - | - | Without | Chassis Mount | Connector | - | - | - | - | - | - | - | - | -40°C ~ 70°C |
|
GLAA01CSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.890" (48.0mm) | 0.100" (2.5mm) | 0.035" (0.9mm) | 0.180" (4.6mm) | -25°C ~ 85°C |
|

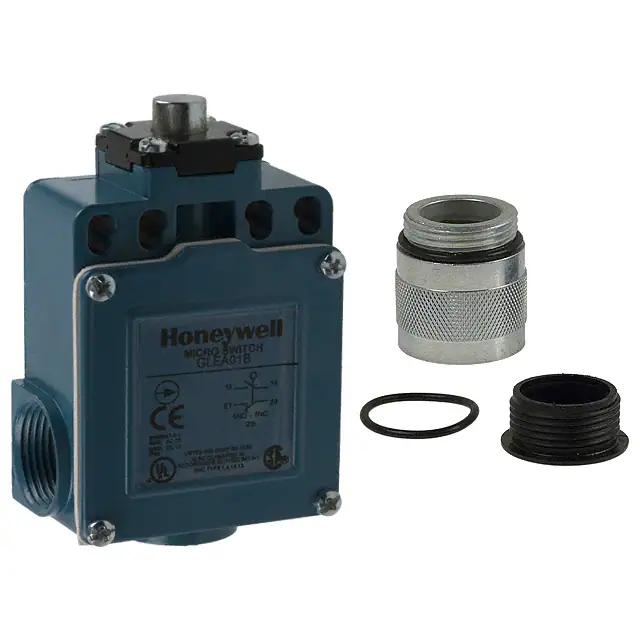

GLEA01BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 0.710" (18.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|

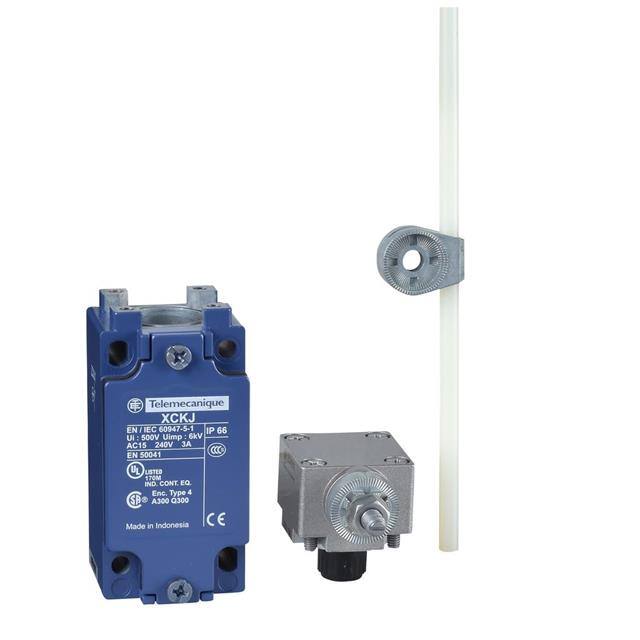

XCKJ10559DSWITCH LIMIT DPST 3A 50V |
0 |
|
Datasheet |
XCKJ | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 50 V | 50 V | Side Rotary, Adjustable Rod | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKD39H0P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCKD3902P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCKD3928P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCKD3918P16EXSWITCH LIMIT 240V 10A METAL |
0 |
|
Datasheet |
TRP | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | - | - | - | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -40°C ~ 130°C |
|
|
XCKD3906P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCKD3911P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCKD3910P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCMD2118L1SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKD3945P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
XCKD39H2P16EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
51.957NSWITCH SNAP ACTION 2XSPDT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
611.6119.109SWITCH SAFETY |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
