Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3SE52120KK50SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
XCMD2153L10SWITCH LIMIT 5A 240V |
0 |
|
Datasheet |
XCMD | Box | Active | - | - | 5A (AC) | 240 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83832001SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83200 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 70°C |
|
|
83832201SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83832 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 70°C |
|
|
XCKD2102P20SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.2217.973SWITCH LIMIT |
0 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LSM6D3SWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 18° | 10° | 57° | -1°C ~ 121°C |
|
|
924CE3-S6SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
924CE | Bulk | Obsolete | SPDT (BBM) | On-Mom | 10A (AC) | 250 V | - | Cross Roller Plunger | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 6' | 2300gf | - | 1.193" (30.3mm) | 0.087" (2.2mm) | - | 0.039" (1.0mm) | 0°C ~ 70°C |
|
|
BZE6-2RN-MSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Actuator Seal Boot | 255 ~ 680gf | 113gf | 1.720" (43.7mm) | 0.078" (2.0mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
XCSM3702L2SWITCH SAFETY LMT 3PST 1.5A 240V |
0 |
|
Datasheet |
XCSM | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCSM4116L2SWITCH SAFETY LMT 4PST 1.5A 240V |
0 |
|
- |
XCSM | Box | Active | 4PST-2NO/2NC | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
3SE51321KA00SWITCH LIMIT 3PST 3A 24V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 60°C |
|
1MK1SWITCH SNAP ACTION SPDT |
0 |
|
- |
MK | Bulk | Active | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 0.020" (0.5mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.010" (0.25mm) | - |
|
XCKJ10559H7SWITCH LIMIT DPST 3A 240V |
1 |
|
Datasheet |
XCKJ | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.2517.032SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
602.1190.276SWITCH LIMIT DPST 3A 240V |
0 |
|
- |
GC | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC) | 240 V | - | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
618.1185.209SWITCH LIMIT PLASTIC BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE51320BE05SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51320BF05SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|

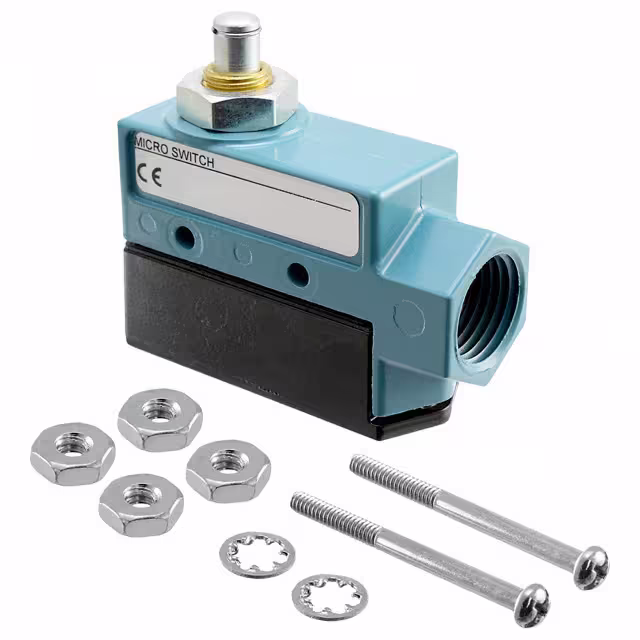

BZE6-3YQTSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 454 ~ 737gf | 113gf | 1.500" (38.1mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
