Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4E-2B10NSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
SHL-W2155-MLSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 260gf | 50gf | 1.319" (33.5mm) | 0.512" (13.0mm) | 0.156" (4.0mm) | 0.217" (5.5mm) | -10°C ~ 80°C |
|
|
SHL-W2155-MRSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 260gf | 50gf | 1.319" (33.5mm) | 0.512" (13.0mm) | 0.156" (4.0mm) | 0.217" (5.5mm) | -10°C ~ 80°C |
|
|
GLAC20K8BSWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 10gfm | - | 18° | 18° | 8° | - | -25°C ~ 85°C |
|
|
GLAA20K8BSWITCH SNAP ACTION DPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | DPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 10gfm | - | 18° | 18° | 8° | - | -25°C ~ 85°C |
|
3SE51220CA001CA0SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52420HE10SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52120CB01SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE51120CA001CA0SWITCH LIMIT DPST 6A 125V |
0 |
|
Datasheet |
SIRIUS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
XCMD4102T1XCMD LIMIT SWITCH + OPTIONS |
0 |
|
Datasheet |
XCMD | Bulk | Active | 4PST-2NO/2NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable with Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
44514-1110SWITCH SNAP ACTION 2NC/1NO 2.4" |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCKP2902N12SWITCH LIMIT 3A 240V |
0 |
|
Datasheet |
XCKP | Box | Active | - | - | 3A (AC) | 240 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
603.3121.005SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

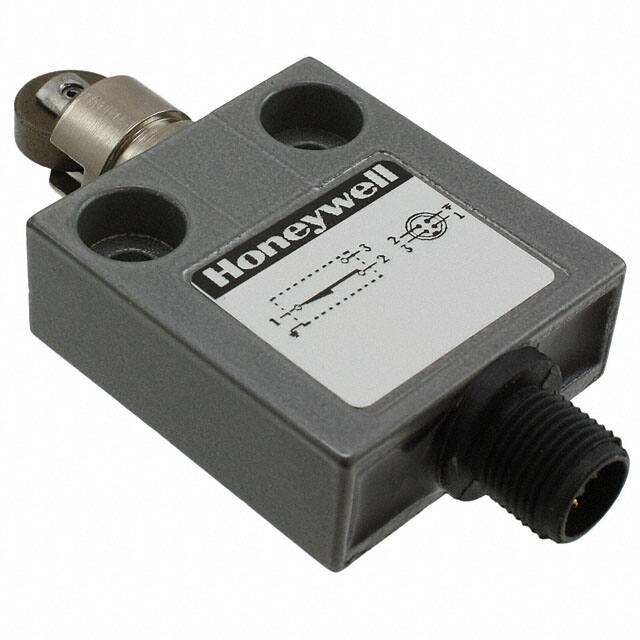

914CE2-KQSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
914CE | Bulk | Obsolete | SPDT | On-Mom | 3A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Connector | IP66 - Dust Tight, Water Resistant | - | 2300gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | 0°C ~ 105°C |
|
|
24AC22SWITCH SNAP ACTION DPST 5A 125V |
0 |
|
Datasheet |
AC | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 125 V | - | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | 0.188" (4.8mm) | - | 0.125" (3.2mm) | -18°C ~ 82°C |
|
D4B-2571NSWITCH SNAP ACTION DPST 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.890" (48.0mm) | 0.080" (2.0mm) | - | 0.197" (5.0mm) | -40°C ~ 80°C |
|
83843001SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83843 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 20gfm | - | - | - | - | - | -10°C ~ 70°C |
|
|
XCKJ3961H29EXSWITCH LIMIT 3PST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -20°C ~ 60°C |
|

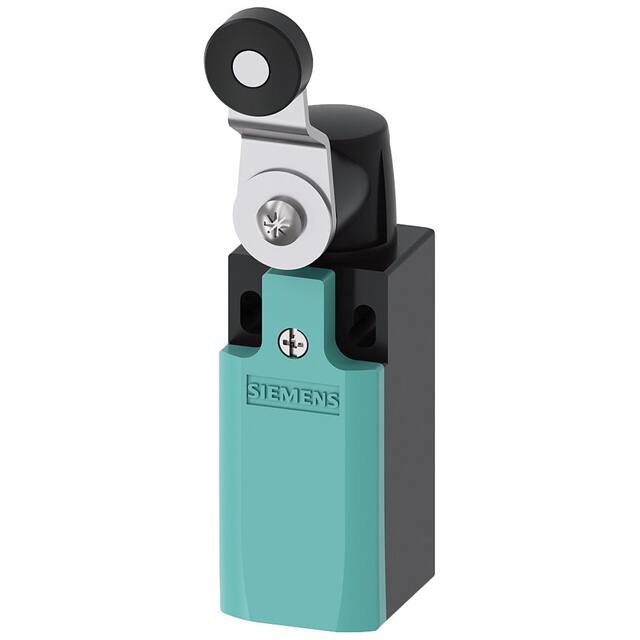

3SE52320HK15SWITCH LIMIT DPST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52120KD03SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
