Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4E-1A10N OKUMASWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
D4E-1B10N OKUMASWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
D4E-1C00NSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
D4E-1G00NSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
ZE-YQ-22-2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | - | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -10°C ~ 80°C |
|
|
ZV2-QA2-2SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
ZV2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 570gf | 170gf | - | 0.157" (4.0mm) | 0.016" (0.4mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
|
608.7387.019SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

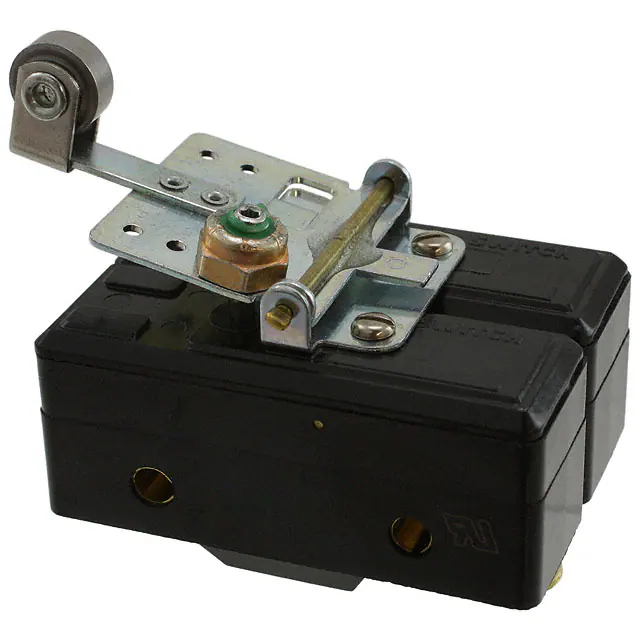

6AS16SWITCH SNAP ACT SPDTX2 20A 125V |
0 |
|
Datasheet |
AS | Bulk | Active | SPDT x 2 | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 397gf | 113gf | 1.219" (31.0mm) | - | 0.156" (4.0mm) | 0.040" (1.0mm) | -55°C ~ 85°C |
|
|
XCKJ50513SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
604.1101.001SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
D | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 3A (AC) | 240 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -30°C ~ 80°C |
|
|
914CE2-Q2SWITCH LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
445211046SWITCH SNAP ACTION 90DEG ACT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4N-6C2HRSWITCH SNAP ACTION 3PST 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-2NC/1NO | On-Mom, Off-Mom | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 551gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
D4N-6D20RSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 653gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
D4N-6D2GRSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 571gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
D4N-6D2HRSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 551gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
D4N-6D31RSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1101gf | - | 1.339" (34.0mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
|
D4N-6D32RSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1101gf | - | 1.748" (44.4mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
|
D4N-6D72RSWITCH SNAP ACT 3PST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 806gf | - | 1.063" (27.0mm) | 0.157" (4.0mm) | - | - | -30°C ~ 70°C |
|
|
XCMD21F2C12SWITCH LIMIT DPST 3A 50V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 220mA (DC) | 50 V | 50 V | Roller Plunger | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
