Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ-2RM22SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 538gf | 170gf | 1.156" (29.4mm) | 0.078" (2.0mm) | 0.001" (0.025mm) | 0.079" (2.0mm) | -55°C ~ 85°C |
|
BZ-R55514-P4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 198 ~ 340gf | - | 0.625" (15.9mm) | - | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
311SX4-H391SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 60gf | 11gf | 0.557" (14.15mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.010" (0.25mm) | -55°C ~ 125°C |
|
|
BA-1R7223524-A2SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
84218SWITCH TEMPERATURE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-RX64-F1SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V15S05-CP200A92-04SWITCH BASIC |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
11SM23-H2SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

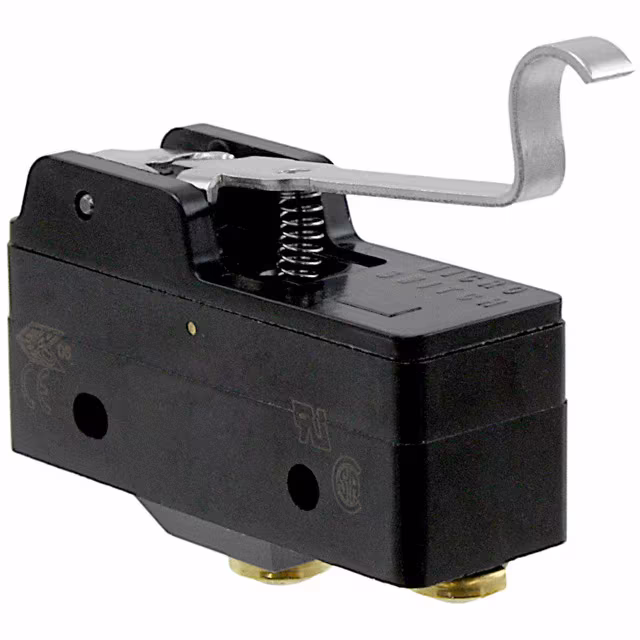

BZ-2RW80196-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 21gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
AZH2211SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.180" (30.0mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
AZH2232SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 0.922" (23.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
83160706SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | 250 V | Telescopic Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
83160664SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
83160 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | - | - | - | 510gf | 77gf | - | 0.125" (3.2mm) | 0.060" (1.5mm) | 0.051" (1.3mm) | -20°C ~ 125°C |
|
|
BZ-RW-F1SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MMGGF5D0CSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
MM | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Overtravel Plunger | Chassis Mount | Solder Turret | - | - | 142gf | 20gf | 0.472" (12.0mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.040" (1.0mm) | -55°C ~ 135°C |
|
1SX12-TSWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 4A (AC), 3.5A (DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
|
BA-1RV5435247-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Screw Terminal | - | - | 170gf | 85gf | 0.750" (19.1mm) | - | 0.030" (0.76mm) | 0.065" (1.7mm) | -55°C ~ 121°C |
|
BA-2RV-P4SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 15gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|
|
BZ-R7216SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
11TL4A4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
