Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
411SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | Splash Proof | - | 213gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
BE-1RV320-A4SWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Obsolete | SPDT | On-Mom | 25A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 283gf | 99gf | 0.750" (19.1mm) | - | 0.020" (0.5mm) | 0.030" (0.76mm) | -55°C ~ 85°C |
|

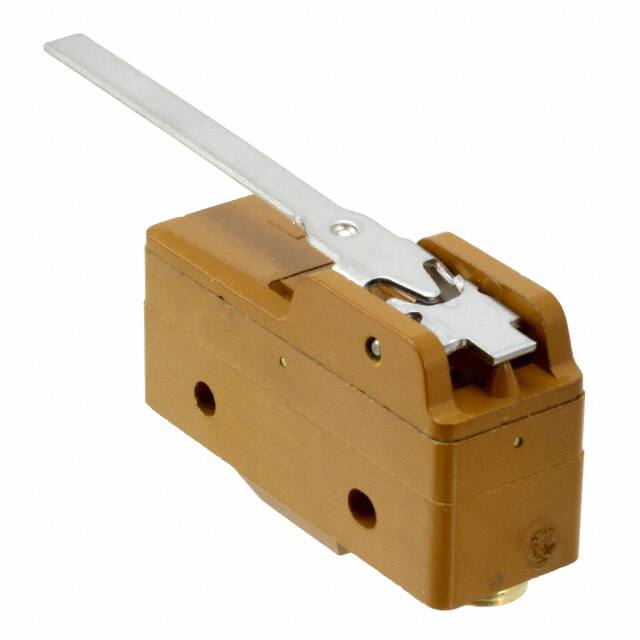

BZ-2RW8405-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 28gf | 7.087gf | 0.750" (19.1mm) | 0.328" (8.3mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-2RW822555117-A2SWITCH MICRO |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BA-2RV2-A2SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 15gf | 1.188" (30.2mm) | 0.470" (11.9mm) | 0.085" (2.16mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
YZ-2RLSWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
YZ | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Leaf | Chassis Mount | Solder Lug | - | - | 141gf | 14gf | 0.689" (17.5mm) | - | 0.050" (1.3mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
BE-2RV-A4SWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BE | Bulk | Active | SPDT | On-Mom | 25A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|
|
83181019SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 255gf | 82gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|

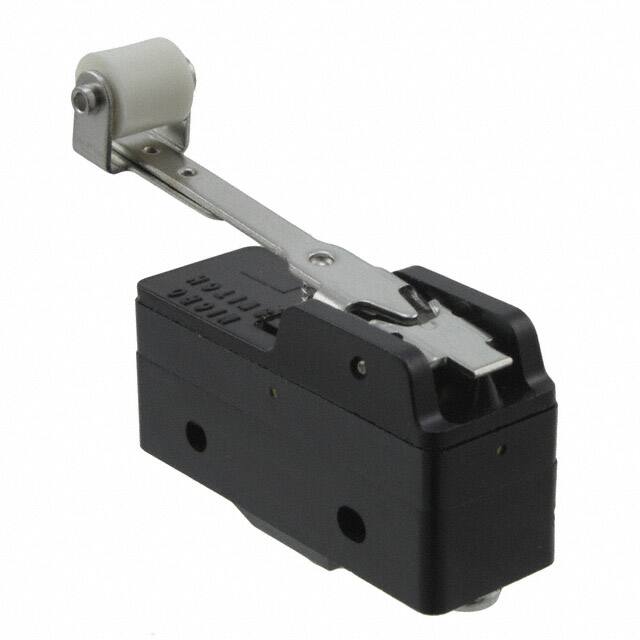

BZ-2RW82113TSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 99gf | 21gf | 1.188" (30.2mm) | - | 0.040" (1.0mm) | 0.125" (3.2mm) | -55°C ~ 85°C |
|
1SX1-T-CSWITCH SNAP ACTION SPDT 7A 250V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 7A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.312" (7.9mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
|
D2JW-013-MDSWITCH SNAP ACT IMMERSION-PROOF |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLLC03CSWITCH SNAP ACTION SPDT 10A 300V |
0 |
|
Datasheet |
GLL | Bulk | Obsolete | SPDT (BBM) | On-Mom | 10A (AC/DC) | 300 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 408gf | 153gf | 1.180" (30.0mm) | 0.040" (1.0mm) | 0.080" (2.0mm) | 0.190" (4.8mm) | -10°C ~ 80°C |
|
|
11SX27SWITCH SNAP ACTION SPDT 5A 115V |
0 |
|
Datasheet |
SX | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
|
BA-2RB7-P4SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 709gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.002" (0.05mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
831537C3.LSWITCH SNAP ACT HI-TEMP .25 QC |
0 |
|
- |
83153 | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-R21-A2SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 113gf | 71gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0005" (0.013mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|

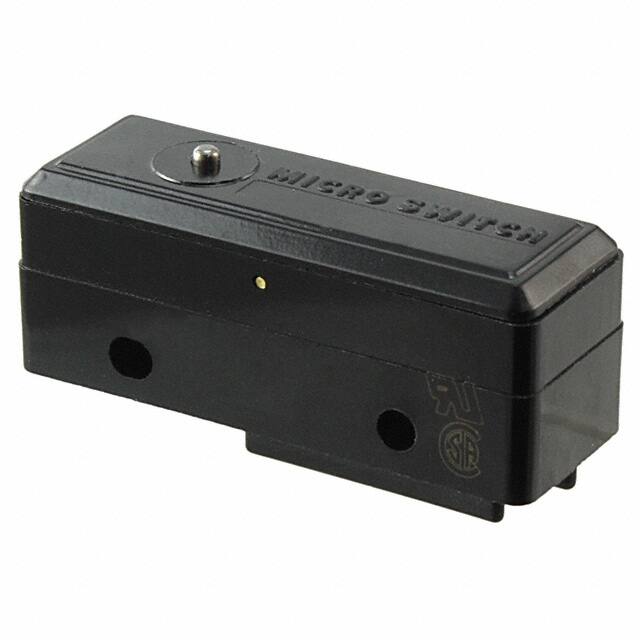

BZ-R20SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 255gf | 113gf | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0003" (0.008mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|

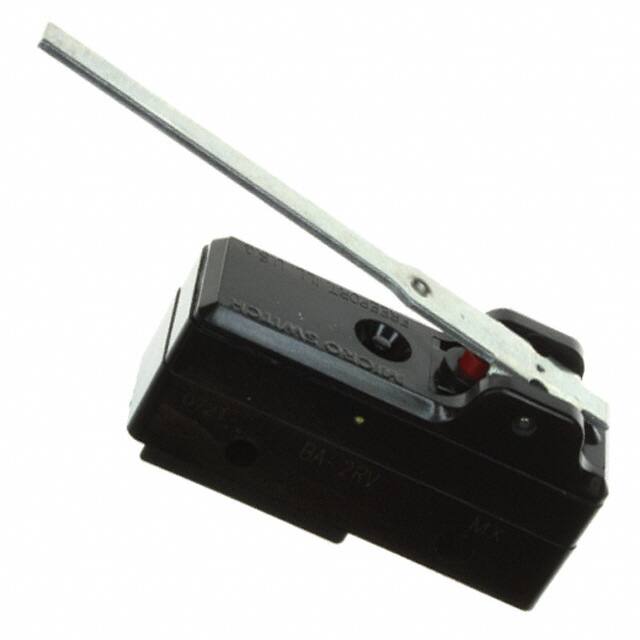

BA-2RVSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 71gf | 15gf | 0.750" (19.1mm) | 0.630" (16.0mm) | 0.110" (2.8mm) | 0.077" (1.96mm) | -55°C ~ 85°C |
|
84251SWITCH TEMPERATURE |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-RLSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Solder Lug | - | - | 85gf | 14gf | 0.689" (17.5mm) | - | 0.030" (0.76mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
