Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E3111DAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111AABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
V7-1X2AD8-000-3V BASIC SWITCH |
0 |
|
- |
V7 | Bulk | Active | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -40°C ~ 177°C |
|
|
BM-1R369-A41SWITCH SNAP ACTION SPDT 22A 125V |
0 |
|
Datasheet |
BM | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 312 ~ 482gf | - | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.001" (0.025mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
D2HW-C272MSWITCH SNP ACT SPST-NC 0.1A 125V |
0 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.425" (10.8mm) | - | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
D2MV-1L22-1C3SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
D2MV | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 4.079gf | 0.815" (20.7mm) | 0.067" (1.7mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

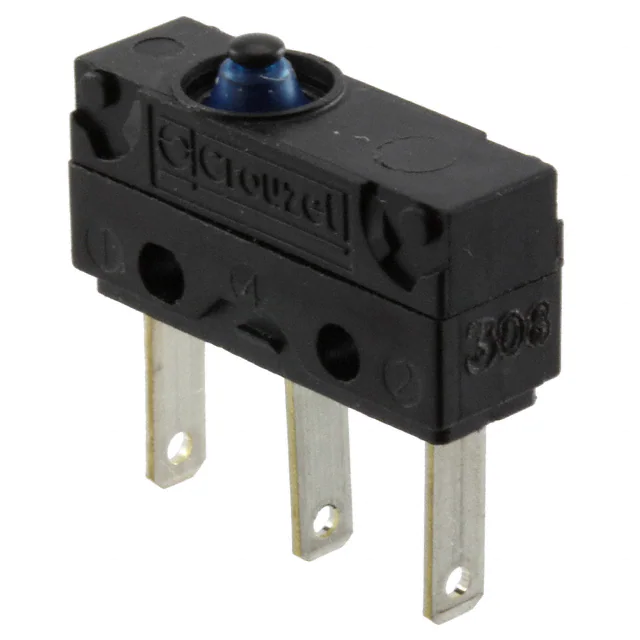

83180002SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
83181055SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | 255gf | 82gf | 0.579" (14.7mm) | - | 0.006" (0.15mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
83180001SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83180 | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 250 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 347gf | 102gf | 0.330" (8.4mm) | - | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 125°C |
|
|
D2HW-BR231MSSWITCH SNAP ACTION SUBMINI BASIC |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
111SM7-TSWITCH SUBMINI BASIC |
0 |
|
- |
SM | Bulk | Obsolete | SPDT | On-Mom | - | - | - | - | Chassis Mount | Solder Turret | - | - | - | - | - | - | - | - | -55°C ~ 125°C |
|
TFCGF5SP0040YSWITCH SNAP ACT SPST-NO 1A 125V |
0 |
|
Datasheet |
TF | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
D2VW-01K1B-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
ABJ362841SWITCH SNP ACT SPST-NC 0.1A 125V |
10 |
|
Datasheet |
ABJ | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 100gf | 20gf | 0.630" (16.0mm) | 0.236" (6.0mm) | 0.040" (1.0mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
|
ABV1630619SWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 300gf | 60gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
LS-20327SWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
11SM1-H2SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
D2VW-01L2-1SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
BZ-2R383-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 368gf | 113gf | 0.625" (15.9mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
11SM244-1SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
- |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC), 300mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
