Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V15W11-WZ200A02-W2SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V15W | Tray | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
ABS1610419SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|

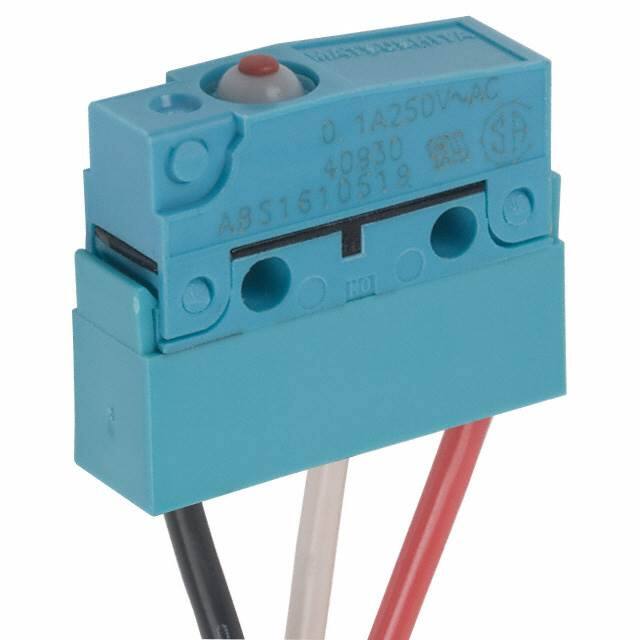

ABS1610519SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
ABS1616409SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 40gf | 3.500gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
ABS1616509SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
TFS06SA1040CSWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
TFS | Box | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 130gf | 20gf | 0.803" (20.4mm) | 0.131" (3.3mm) | 0.028" (0.7mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
11SM22-H258SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
V7-1A23E9-438-2V BASIC SWITCH |
0 |
|
- |
V7 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -40°C ~ 150°C |
|
|
1-1520166-3SWITCH SNAP ACTION DPST 10A 125V |
0 |
|
Datasheet |
8907 | Bulk | Obsolete | DPST-NO | On-Off | 10A (AC) | 125 V | - | - | Chassis Mount | - | - | - | - | - | - | - | - | - | - |
|
|
V3-3019SWITCH PLUNGER SPDT 15A QC |
0 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TFCGK6SA104ACSWITCH SNAP ACTION SPDT 11A 277V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | 15gf | 0.812" (20.6mm) | 0.060" (1.5mm) | 0.015" (0.38mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
ASGGF5L04ACSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Leaf | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 85gf | 14gf | 0.312" (7.9mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
|
ASGGF5T04ACSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 42gf | 8.500gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
|
E3111BAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111DABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111DAPAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111BABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111CAWAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111AAPAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
E3111CABAEXSWITCH DETECTOR SPDT 5A 250V |
0 |
|
Datasheet |
3100 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
