Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3145DAPAEXSWITCH DETECTOR SPST-NC 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
H3146DAWAEXSWITCH DETECTOR SPST-NO 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
|
H3145AABAEXSWITCH DETECTOR SPST-NC 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
|
V-151-2A5SWITCH SNAP ACT SPST-NC 15A 250V |
10 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
D2HW-BR202MLSWITCH SNP ACT SPST-NC 0.1A 125V |
0 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2HW-BR202MRSWITCH SNP ACT SPST-NC 0.1A 125V |
0 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
83170474SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Mushroom Button | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 61gf | 10gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|

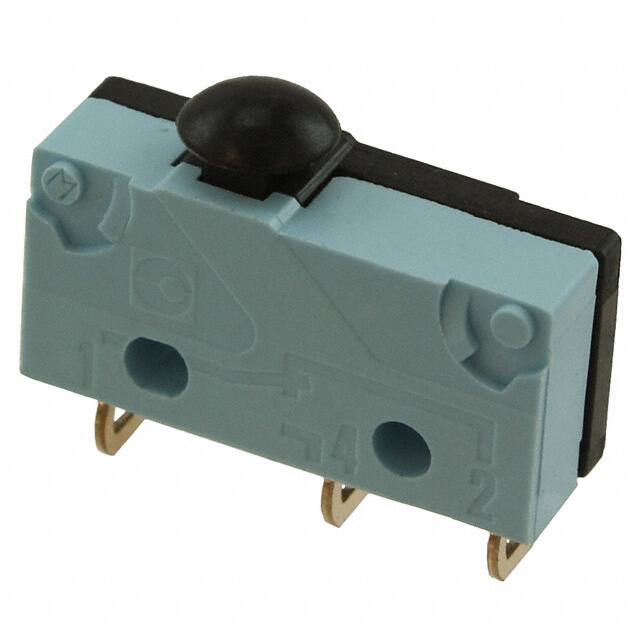

83170473SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Mushroom Button | Chassis Mount | Solder Lug | - | - | 61gf | 10gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
83170410SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
83170412SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
V7-1E15D8-022-1SWITCH STRGHT LVR SPDT 10A QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V-21-2C6SWITCH SNAP ACT SPST-NC 21A 250V |
22 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NC | On-Mom | 21A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
ABV1214503SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 120gf | 13gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABV1212603SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 180gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
TMCJG6ST1010CSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 180gf | 48gf | 0.600" (15.2mm) | 0.080" (2.0mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
 BY OMI.jpg)
|
V-16G2-1C5-K (R)SWITCH SNAP ACTION SPDT 16A 250V |
22 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V-10G5-1C25-KSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
V | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
AV625264SWITCH SNAP ACT SPST-NC 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.618" (15.7mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
AV625564SWITCH SNAP ACT SPST-NC 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.618" (15.7mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
V7-4A17E9A8-1V BASIC SWITCH |
0 |
|
- |
V7 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
