Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZW50F15FD1-ZSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
ZW | Tray | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 72gf | 15gf | 0.571" (14.5mm) | 0.170" (4.3mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 120°C |
|
ABV1210518SWITCH SNAP ACTION SPDT 3A 250V |
0 |
|
- |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 200gf | 40gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
DC2C-A1LBSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.420" (10.7mm) | 0.197" (5.0mm) | 0.031" (0.8mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|

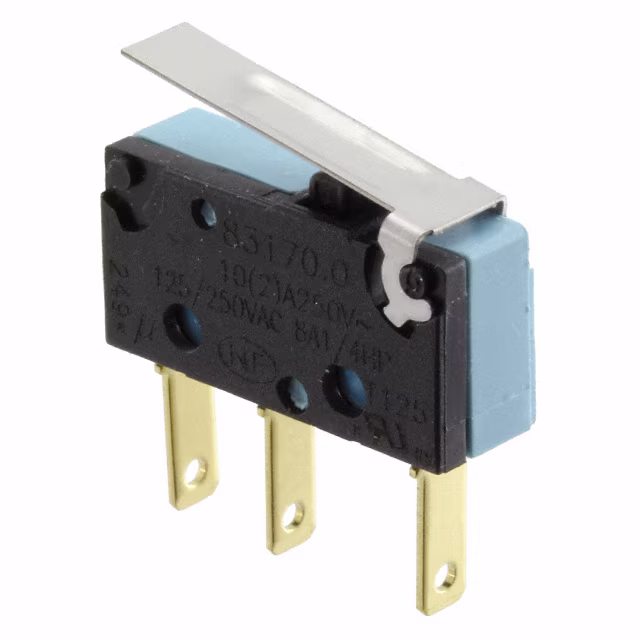

83170197SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 51gf | 10gf | 0.409" (10.4mm) | - | 0.018" (0.45mm) | 0.060" (1.5mm) | -20°C ~ 130°C |
|
V7-7H25D8-263-1SWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 113gf | 14gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.050" (1.3mm) | 0.080" (2.03mm) | -40°C ~ 85°C |
|
V7-2H15D8-000-2SWITCH PLUNGER SPDT QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-3E17D8-000-3SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
V7-3E19E9-000-1SWITCH PLUNGER SPDT 10A QC |
0 |
|
Datasheet |
V7 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-5F17D8-000-3SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 15gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
TF2EEH8VA155ACSWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 25gf | 0.815" (20.7mm) | 0.165" (4.2mm) | 0.049" (1.25mm) | 0.063" (1.6mm) | -40°C ~ 85°C |
|
VM3SCQF3002L06SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 380gf | 160gf | 0.799" (20.3mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.012" (0.3mm) | -40°C ~ 120°C |
|
|
D2QW-C073DSWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
D2QW | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.472" (12.0mm) | - | - | 0.138" (3.5mm) | -40°C ~ 85°C |
|
D3V-62M-1C24SWITCH SNAP ACTION SPDT 6A 250V |
20 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
V7-9W2AE9SWITCH SNAP ACT SPST-NO 15A 125V |
12 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 177°C |
|
|
LCGDL9P00ECUSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 95gf | 14gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.004" (0.1mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
VM3SCQF3002L01SWITCH LIMIT SPDT 10A 125V |
0 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 210gf | 100gf | 0.795" (20.2mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
ABV1232619SWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
- |
ABV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 180gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABV1234619SWITCH SNAP ACT SPST-NO 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 180gf | 20gf | 0.730" (18.5mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
TFCFK6ST145ACSWITCH SNAP ACTION SPDT 11A 227V |
0 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 250mA (DC) | 227 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 35gf | 4.000gf | 0.730" (18.5mm) | 0.100" (2.54mm) | 0.030" (0.76mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
H3145AAPAEXSWITCH DETECTOR SPST-NC 5A 250V |
0 |
|
Datasheet |
3140 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | Splash Proof | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
