Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HD110V30A21"HD1 SEALED, SUB-MIN |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABS1513503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 45gf | 3.059gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
ABS1414503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | 3.467gf | 0.459" (11.65mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -40°C ~ 85°C |
|
|
ABS1413503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 45gf | 2.957gf | 0.346" (8.80mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.063" (1.6mm) | -40°C ~ 85°C |
|

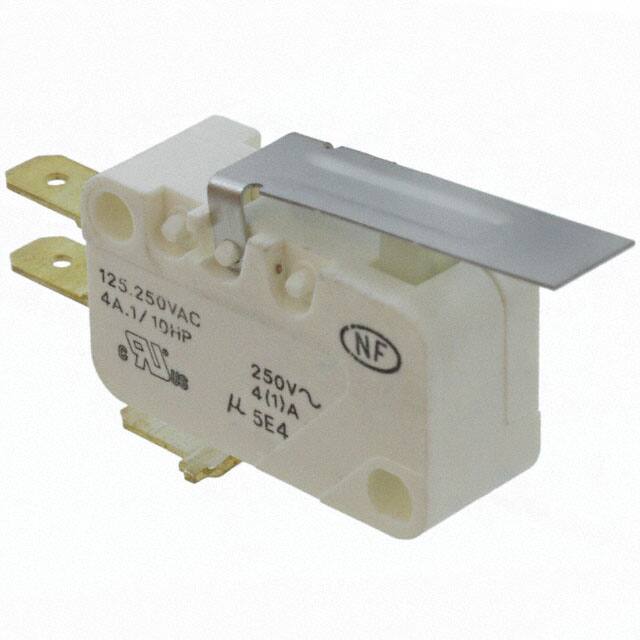

831615C6.BBSWITCH SNAP ACTION SPDT 4A 250V |
0 |
|
Datasheet |
83161 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 13gf | 2.500gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.087" (2.2mm) | -20°C ~ 125°C |
|
|
ASQMR16A28ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
ASQMR17B28ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
ASQMR18428ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
ASQMR17B38ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
ASQMR16438ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
ASQMR16428ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
ASQMR16A38ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
ASQMR17428ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.423" (10.75mm) | - | - | 0.085" (2.16mm) | -40°C ~ 85°C |
|
|
ABS1111503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | 3.977gf | 0.346" (8.80mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
D3V-164-1A5SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
V15T16-CP300A02SWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 30gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
|
V15T16-CP200A02SWITCH BASIC |
0 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D3V-013-3C23SWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 20gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
|
V7-1C37D8-000-1SWITCH PLUNGER SPST 15A QC |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V7-1C29E8-000-1SWITCH V BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
