Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V15T16-SZ200SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-SZ100SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-SZ400SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 400gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T22-KC200A02SWITCH SNAP ACT SPST-NC 22A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NC | On-Mom | 22A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 120gf | 20gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 125°C |
|
|
AH1464619-ASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 55gf | 4.079gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
PP1-4B7-2D2SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 500gf | - | 0.378" (9.6mm) | - | - | - | 0°C ~ 85°C |
|
|
MBZ101A01B03B01SNAP ACTING SWITCH MB |
0 |
|
- |
MBZ | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 285gf | - | 0.421" (10.70mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
MBZ101A01B02X01SNAP ACTING SWITCH MBD5D |
0 |
|
Datasheet |
MBZ | Bulk | Active | SPST-NO | Off-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 285gf | - | 0.331" (8.40mm) | 0.047" (1.2mm) | 0.005" (0.13mm) | 0.024" (0.6mm) | -40°C ~ 85°C |
|
SS-01GL-F-3SWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3V-6G5M-1C24SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 120gf | 15gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
V7-7B29E9-053SWITCH SNAP ACT SPST-NO 11A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 63gf | 8.000gf | 0.602" (15.3mm) | 0.272" (6.9mm) | 0.060" (1.5mm) | 0.134" (3.4mm) | -40°C ~ 85°C |
|
|
ABJ241260SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.328" (8.3mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
G00986922SNAP SWITCH |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V15T16-CP100-01SWITCH SNAP ACT SPST-NO 16A 250V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T22-EP200SWITCH SNAP ACT SPST-NO 22A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 22A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
ZM195G70S501-ASWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
ZM | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | - | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | - | - | - | - | - | - | -40°C ~ 125°C |
|
|
ZV50E20A01SWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
ZV | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 146gf | 35gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|

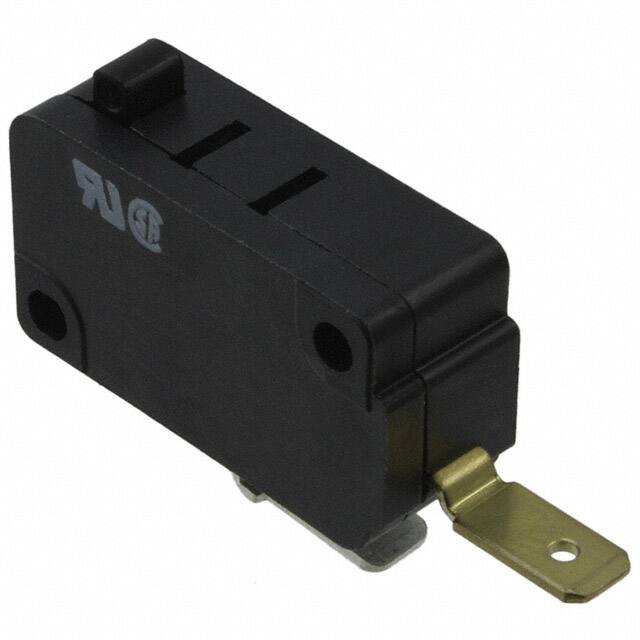

V7-1C29E7SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
LCA01150P00RCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 25gf | 0.340" (8.6mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
D3V-6G4-1C24-T-KSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 200°C |
