Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

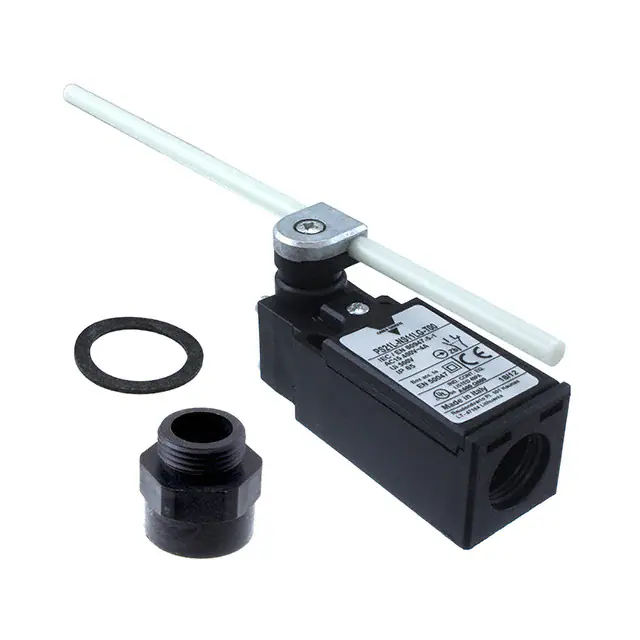

PS21L-NS11LG-T00SWITCH SNAP ACT DPST 5.5A 130V |
3 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 10gf | - | - | - | - | - | -25°C ~ 70°C |
|
PS21L-NS11LS-T00SWITCH SNAP ACT DPST 5.5A 130V |
3 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 12gf | - | - | - | - | - | -25°C ~ 70°C |
|
PS21L-NS11RH-T00SWITCH SNAP ACT DPST 5.5A 130V |
2 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 714gf | - | - | - | - | - | -25°C ~ 70°C |
|

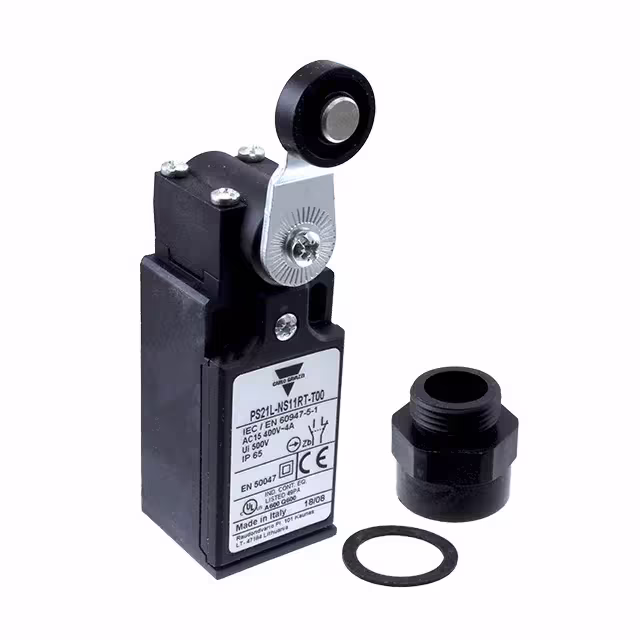

PS21L-NS11RT-T00SWITCH SNAP ACT DPST 5.5A 130V |
2 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 10gf | - | - | - | - | - | -25°C ~ 70°C |
|

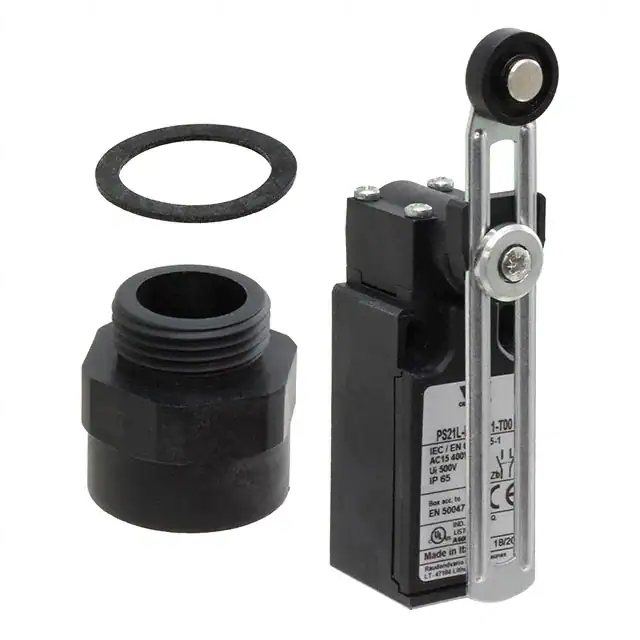

PS21L-NS11R1-T00SWITCH SNAP ACT DPST 5.5A 130V |
1 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Nylon Roller | 32gfm | - | - | - | - | - | -25°C ~ 70°C |
|
PS21L-NS11PR-T00SWITCH SNAP ACT DPST 5.5A 130V |
1 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 1224gf | - | - | - | - | - | -25°C ~ 70°C |
|
D4N-1172SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
Z-15GNJ55SWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 30 V | Spring, Rod | Chassis Mount | Solder Lug | IP62 | - | 50gf | - | - | 0.787" (20.0mm) | - | - | -15°C ~ 80°C |
|

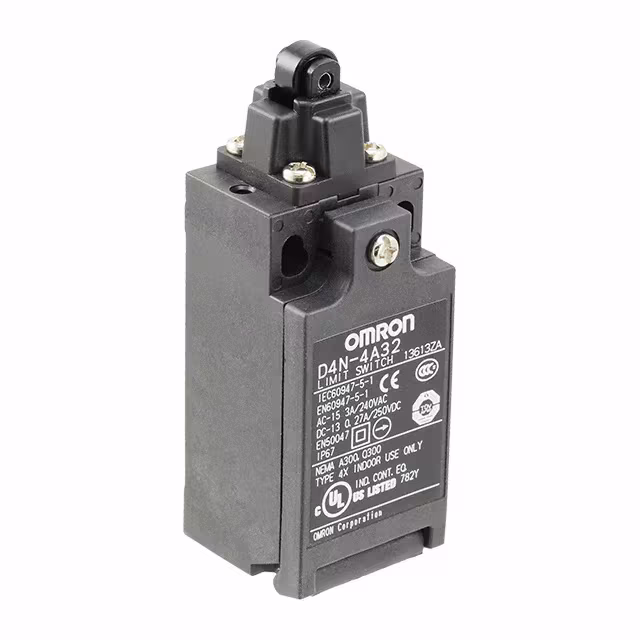

D4N-4A32SWITCH SNAP ACTION DPST 3A 240V |
4 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-2A32SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
A-20GD-BSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 400 ~ 625gf | 285gf | 1.030" (26.2mm) | 0.051" (1.3mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -25°C ~ 80°C |
|
D4N-1162SWITCH SNAP ACTION DPST 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
DZ-10GW-1ASWITCH SNAP ACTION DPDT 10A 125V |
2 |
|
Datasheet |
DZ | Bulk | Active | DPDT | On-Mom | 10A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 170gf | 28gf | 0.859" (21.8mm) | - | 0.156" (4.0mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
Z-15EQ22-BSWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 625 ~ 800gf | 114gf | 1.313" (33.4mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
A-20GD-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
3 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 400 ~ 625gf | 285gf | 1.030" (26.2mm) | 0.051" (1.3mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -25°C ~ 80°C |
|
|
Z-15HQ22-BSWITCH SNAP ACTION SPDT 15A 125V |
2 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 200 ~ 285gf | 114gf | 1.313" (33.4mm) | 0.012" (0.3mm) | 0.001" (0.025mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|

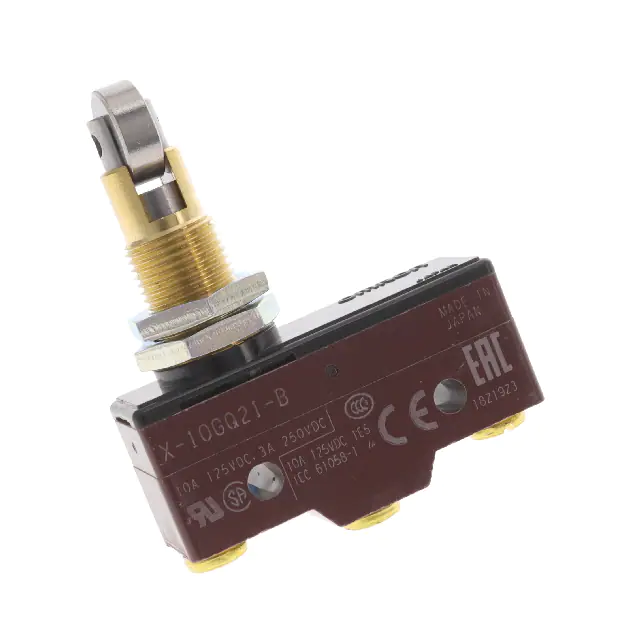

X-10GQ21-BSWITCH SNAP ACTION SPDT 10A 30V |
2 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Cross Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 510gf | 114gf | 1.313" (33.4mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
D4N-2B31SWITCH SNAP ACT DPST-NC 3A 240V |
1 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
|
D4N-4A72SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-4A20SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
