Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AH14809SWITCH SNAP ACTION SPDT 1A 125V |
45 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
AH16629SWITCH HINGE LEVER SPDT 3A 125V |
56 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 50gf | 5.000gf | 0.268" (6.80mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
AH1580619SWITCH SNAP ACT SPDT 0.1A 125V |
73 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
AH1480619SWITCH SNAP ACT SPDT 0.1A 125V |
69 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
AH1460619SWITCH SNAP ACT SPDT 0.1A 125V |
46 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
ZMA00A150L04RCSWITCH SNAP ACT SPDT 100MA 125V |
90 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
|
AH1462619SWITCH HINGE LVR SPDT 0.1A 125V |
95 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 50gf | 5.000gf | 0.268" (6.80mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
AH1664619SWITCH RLR LEVER SPDT 0.1A 125V |
94 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 55gf | 4.000gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
AH168461SWITCH ROLLER LVR SPDT 0.1A 125V |
88 |
|
Datasheet |
AH1 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 26gf | 2.000gf | 0.374" (9.5mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
|
AVM3225SWITCH HINGE LEVER SPDT 5A 125V |
100 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 55gf | 3.500gf | 0.346" (8.80mm) | 0.110" (2.8mm) | 0.031" (0.80mm) | 0.047" (1.20mm) | -25°C ~ 85°C |
|
|
DE20VSNOPTRSLIDE SWITCH |
1,000 |
|
Datasheet |
DE | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | - | 35gf | - | - | - | - | - | -40°C ~ 85°C |
|
D3V-112-2C24SWITCH SNAP ACT SPST-NC 11A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
D3V-11G1-1C4-KSWITCH SNAP ACTION SPDT 11A 250V |
95 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
ABJ151240SWITCH SNAP ACTION SPDT 1A 125V |
76 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 40gf | 3.059gf | 0.268" (6.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
.jpg)
|
D3V-11G-2A4-KSWITCH SNAP ACT SPST-NC 11A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

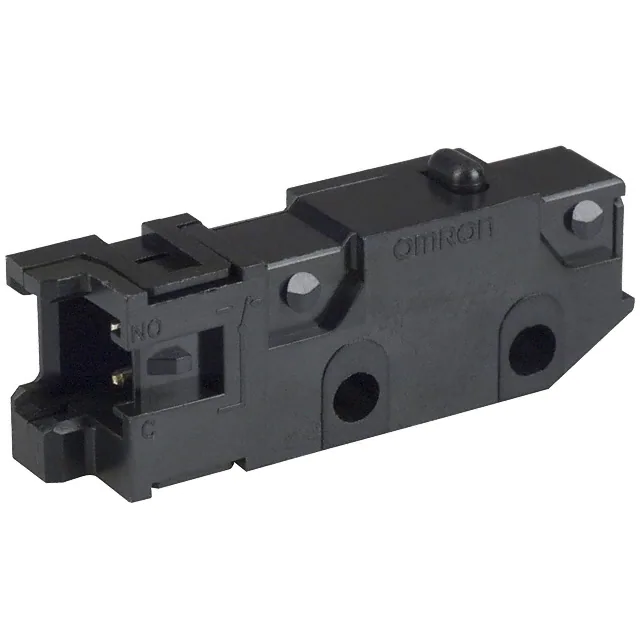

D3M-01-3SWITCH SNAP ACT SPST-NO 0.1A 30V |
99 |
|
Datasheet |
D3M | Tray | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Connector | IP40 | - | 153gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D3V-163M-2C4SWITCH SNAP ACT SPST-NC 16A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 105°C |
|
|
V-16G-2C24-K(R)SWITCH SNAP ACT SPST-NC 16A 250V |
95 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
D3V-112M-1C24SWITCH SNAP ACTION SPDT 11A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
D3V-163M-1A4SWITCH SNAP ACTION SPDT 16A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 105°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
