Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLD2-LDK43-NSWITCH LIMIT SPDT 10A 125V |
3 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.732" (44.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
|
WLD2-139-N 2MSWITCH LIMIT SPDT 10A 125V |
2 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 2720gf | 910gf | 1.732" (44.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|

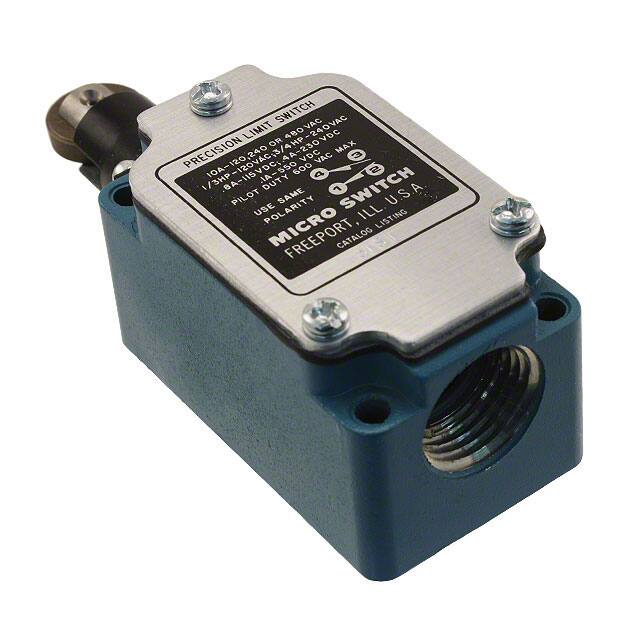

5LS1SWITCH SNAP ACTION SPDT 10A 120V |
8 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 3175gf | 907gf | 1.730" (43.9mm) | 0.065" (1.65mm) | 0.020" (0.5mm) | 0.219" (5.6mm) | -29°C ~ 71°C |
|
D4F-202-3RSWITCH SNAP ACT DPST-NC 15A 120V |
2 |
|
Datasheet |
D4F | Bulk | Active | DPST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
|
L100WTR2M10SWITCH LIMIT 3PST 20A 120V |
2 |
|
Datasheet |
- | Box | Active | 3PST-2NC/1NO (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
9007TSB1SWITCH LIMIT SPDT 20A 120V |
2 |
|
Datasheet |
9007T | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
L100WNC2M18SWITCH LIMIT DPST 6A 120V |
2 |
|
Datasheet |
- | Box | Active | DPST-NC (DB) | On-Mom | 6A (AC) | 120 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
L100WTR2M11SWITCH LIMIT 3PST 20A 120V |
2 |
|
Datasheet |
- | Box | Active | 3PST-2NC/1NO (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007FTUB4M11SWITCH LIMIT SPDT 20A 120V |
2 |
|
Datasheet |
9007FT | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007FTUB4SWITCH LIMIT SPDT 20A 120V |
2 |
|
Datasheet |
9007FT | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
|
9007FTSB1M11SWITCH LIMIT SPDT 20A 120V |
2 |
|
Datasheet |
9007FT | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
LS2YAB4KSWITCH SNAP ACTION SPDT 10A 120V |
2 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Stainless Steel | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
|

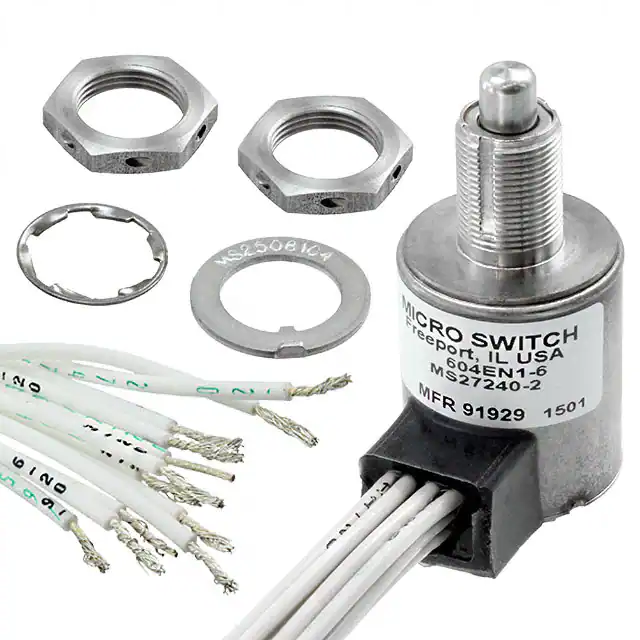

604EN1-6SWITCH SNAP ACTION 4PDT 7A 28V |
9 |
|
Datasheet |
EN | Bulk | Active | 4PDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | Cable Length 6', Sealed | 2722 ~ 5443gf | 1814gf | - | 0.040" (1.0mm) | 0.020" (0.5mm) | 0.125" (3.2mm) | -54°C ~ 85°C |
|

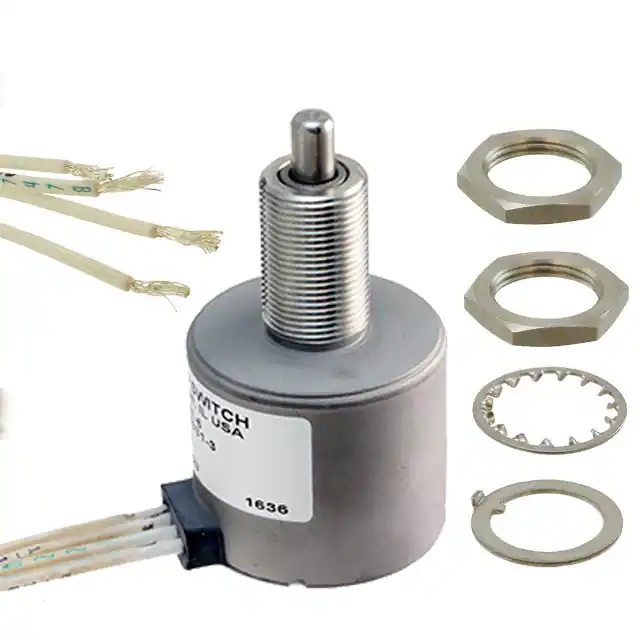

3EN1-6SWITCH SNAP ACTION SPDT 15A 28V |
0 |
|
Datasheet |
EN | Bulk | Active | SPDT (DB/DM) | On-Mom | 15A (DC) | - | 28 V | Round (Pin Plunger) | Panel Mount | Wire Leads | - | Cable Length 6', Sealed | 2722 ~ 5443gf | 2268gf | - | 0.060" (1.5mm) | 0.035" (0.9mm) | 0.250" (6.35mm) | -54°C ~ 85°C |
|
|
9EN2C11BC5BB1SWITCH AERO SEALED |
10 |
|
Datasheet |
EN | Bulk | Active | - | - | - | - | - | - | Panel Mount | - | - | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
|
DT 103 C-PDETECTOR SWITCH, OFF-ON, TOP ACT |
1,000 |
|
Datasheet |
DT | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 36gf | - | - | - | - | - | -10°C ~ 60°C |
|
|
DT 220 C-PDETECTOR SWITCH, OFF-MOM, SIDE A |
799 |
|
Datasheet |
DT | Tray | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 25gf | - | - | - | - | - | -20°C ~ 70°C |
|
|
AH16829SWITCH HINGE LEVER SPDT 1A 125V |
72 |
|
Datasheet |
AH1 | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 25gf | 2.500gf | 0.268" (6.80mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
AH14609SWITCH SNAP ACTION SPDT 3A 125V |
439 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
|
AH16809SWITCH SNAP ACTION SPDT 1A 125V |
195 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 74gf | 10gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
