Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WLNJ30THG1NSWITCH SNAP ACTION SPDT 10A 125V |
5 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.787" (20.0mm) | - | - | 5°C ~ 120°C |
|
WLCA2-55-NSWITCH SNAP ACTION SPDT 10A 125V |
3 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
WLNJ55LDNSWITCH SNAP ACTION SPDT 10A 125V |
2 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Sealed - Hermetically, Status Indicator | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|
XCKT2102N12SWITCH LIMIT DPDT 3A 240V |
2 |
|
Datasheet |
XCKT | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
SHL-Q55-L4MR VCTF 3MSWITCH SNAP ACTION SPDT 10A 125V |
3 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Status Indicator | 1000gf | 200gf | 1.339" (34.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|
XCKD2106N12SWITCH LIMIT DPDT 3A 240V |
2 |
|
Datasheet |
XCKD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
SHL-W255-MDSWITCH SNAP ACTION SPDT 10A 125V |
8 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 1.300" (33.0mm) | 0.315" (8.0mm) | 0.098" (2.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
WLCA2-2TH-NSWITCH SNAP ACTION SPDT 10A 125V |
11 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 120gf | - | 25° | 16° | 60° | 5°C ~ 120°C |
|
ZV2-NA277-2SSWITCH SNAP ACTION SPDT 15A 125V |
4 |
|
Datasheet |
ZV2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 640gf | 230gf | - | 0.197" (5.0mm) | 0.016" (0.4mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
D4CC-2002SWITCH SNAP ACTION SPDT 1A 125V |
3 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
WLCA2-2TSLD-NSWITCH SNAP ACTION SPDT 10A 125V |
3 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 120gf | - | 25° | 16° | 60° | -10°C ~ 80°C |
|
9007AB41SWITCH LIMIT SPDT 15A 120V |
2 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 15A (AC), 500mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
83872102SWITCH SNAP ACTION DPST 6A 120V |
8 |
|
Datasheet |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
XCKP2145M12SWITCH LIMIT DPDT 3A 240V |
2 |
|
Datasheet |
XCKP | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
ZV-NA2-2SSWITCH SNAP ACTION SPDT 15A 125V |
5 |
|
Datasheet |
ZV | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 640gf | 230gf | - | 0.197" (5.0mm) | 0.016" (0.4mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
D4C-2360SWITCH SNAP ACTION SPDT 5A 125V |
5 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 680gf | 150gf | - | 10° | 3° | 50° | -10°C ~ 70°C |
|

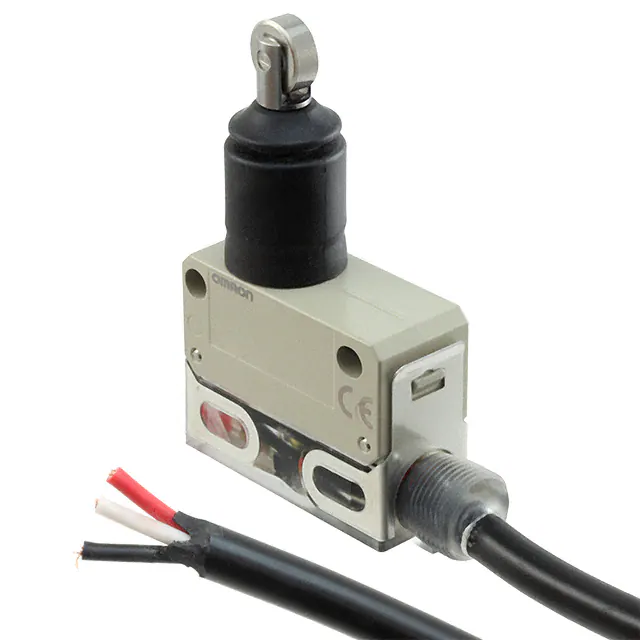

D4E-1D23L2NSWITCH SNAP ACTION SPDT 5A 125V |
3 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4C-3350SWITCH SNAP ACTION SPDT 4A 30V |
3 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Spring, Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 5m, Status Indicator | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
WLCA2-8P1-NSWITCH LIMIT SPDT 10A 125V |
3 |
|
Datasheet |
WL-N | Bulk | Active | SPDT | - | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 820gf | 72gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|

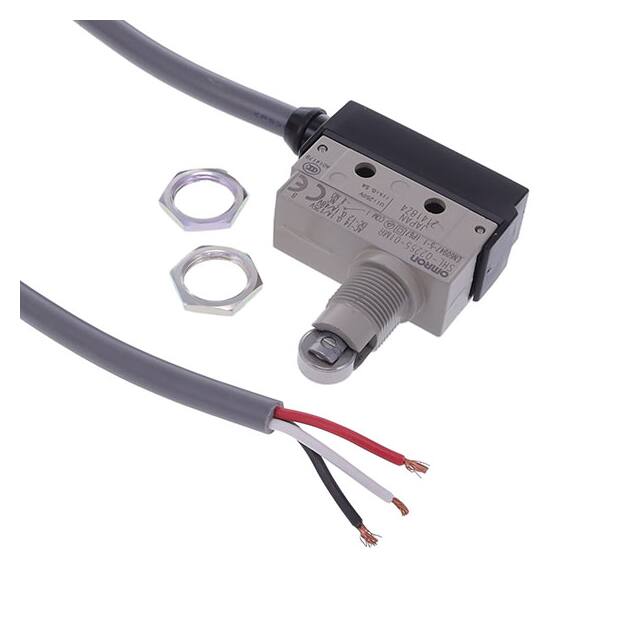

SHL-Q2255-01MRSWITCH SNAP ACT SPDT 0.1A 125V |
4 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
