Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-1MS SERIES.jpg)
|
D2VW-01-2MSSWITCH SNP ACT SPST-NC 0.1A 125V |
9 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
GLLC01A2BSWITCH SNAP ACTION SPDT 10A 300V |
15 |
|
Datasheet |
GLL | Bulk | Active | SPDT | On-Mom | 10A (AC/DC) | 300 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Metal Roller | 12gfm | 2.039gfm | 30° | 30° | 18° | 40° | -10°C ~ 80°C |
|
NGCPA00NX01A1ASWITCH SNAP ACTION DPST 6A 120V |
37 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Nylon Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
A-20GQ22-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
13 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP00 | - | 630gf | 280gf | 1.313" (33.4mm) | 0.051" (1.3mm) | 0.014" (0.35mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
NGCPA00NX01CSWITCH SNAP ACTION DPST 6A 120V |
50 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
D4N-2220SWITCH SNAP ACT DPST-NC 3A 240V |
11 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-4220SWITCH SNAP ACT DPST-NC 3A 240V |
11 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
Z-01HW2255SWITCH SNAP ACT SPDT 0.1A 125V |
11 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP62 | - | 200gf | 28gf | 1.188" (30.2mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -15°C ~ 80°C |
|
D4N-2225SWITCH SNAP ACT DPST-NC 3A 240V |
9 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Metal Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-5A62SWITCH SNAP ACTION DPST 3A 240V |
8 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-122HSWITCH SNAP ACT DPST-NC 3A 240V |
5 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Rubber Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
X-10GW375-B6SWITCH BASIC |
15 |
|
Datasheet |
X | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SZL-VL-S-I-N-MSWITCH SNAP ACT SPDT 0.5A 380V |
18 |
|
Datasheet |
SZL-VL-S | Bulk | Active | SPDT (DB/DM) | On-Mom | 500mA (AC), 50mA (DC) | 380 V | 220 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 18gfm | - | - | 25° | 15° | 70° | -20°C ~ 70°C |
|
D4N-4F20SWITCH SNAP ACTION 3PST 3A 240V |
5 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 25 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 28° | - | 40° | -30°C ~ 70°C |
|
D4N-4C72SWITCH SNAP ACTION 3PST 3A 240V |
8 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | - | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-6132SWITCH SNAP ACTION DPST 3A 240V |
7 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.110" (28.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|

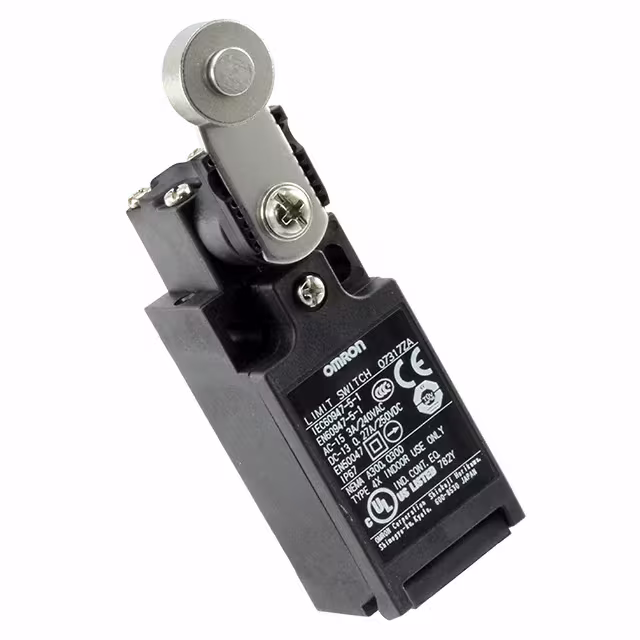

D4N-4A25SWITCH SNAP ACTION DPST 3A 240V |
6 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Metal Roller | 510gf | 51gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
D4N-6A2GRSWITCH SNAP ACTION DPST 10A 120V |
3 |
|
Datasheet |
D4N-R | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller, Reset Function | 571gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
D4N-4F31SWITCH SNAP ACTION 3PST 3A 240V |
4 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.685" (17.4mm) | 0.110" (2.8mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|

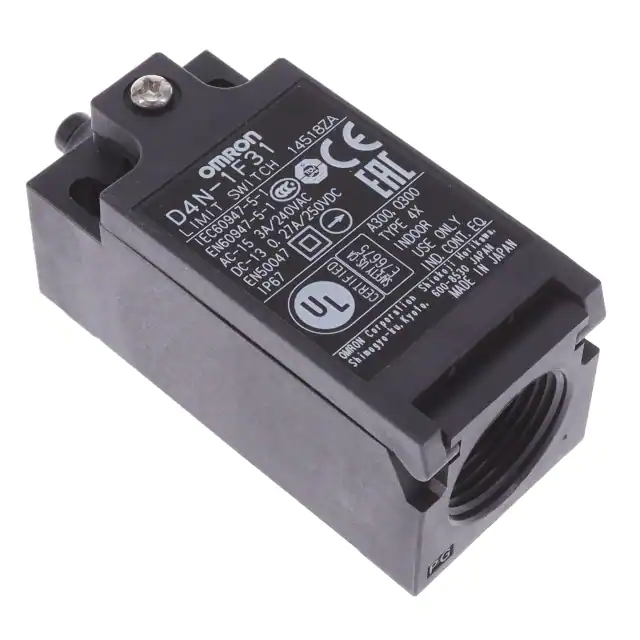

D4N-1F31SWITCH SNAP ACTION 3PST 3A 240V |
9 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.685" (17.4mm) | 0.110" (2.8mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
