Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VM3SAQF1803L02SWITCH LIMIT SPST-NO 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 50gf | 0.736" (18.70mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VM3SBQF1803L04SWITCH LIMIT SPST-NC 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 190gf | 80gf | 0.602" (15.30mm) | 0.071" (1.8mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
D2HW-BL212MLSWITCH SNP ACT SPST-NC 0.1A 125V |
58 |
|
Datasheet |
D2HW | Tray | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2HW-BR212MRSWITCH SNP ACT SPST-NC 0.1A 125V |
52 |
|
Datasheet |
D2HW | Tray | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2HW-BR231MSWITCH SNAP ACT SPDT 0.1A 125V |
34 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
D2HW-BL271MSWITCH SNAP ACT SPDT 0.1A 125V |
20 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 183gf | 20gf | 0.425" (10.8mm) | - | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
VM3SCQF1803L06SWITCH LIMIT SPDT 10A 125V |
42 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 240gf | 100gf | 0.807" (20.50mm) | 0.060" (1.5mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
D2VW-5L3-1SWITCH SNAP ACTION SPDT 5A 125V |
79 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2D-1102SWITCH SNAP ACTION SPST 16A 250V |
43 |
|
Datasheet |
D2D | Bulk | Active | SPST-NC (DB) | On-Mom | 16A (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | IP40 | - | 300gf | - | 0.468" (11.9mm) | - | - | 0.217" (5.5mm) | -25°C ~ 85°C |
|
VM3SCGF1803L04SWITCH LIMIT SPDT 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 190gf | 80gf | 0.602" (15.30mm) | 0.071" (1.8mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
D2HW-C282MRSWITCH SNP ACT SPST-NC 0.1A 125V |
12 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 92gf | 5.099gf | 0.606" (15.4mm) | - | 0.027" (0.7mm) | 0.110" (2.8mm) | -40°C ~ 85°C |
|
VM3SCGF3003L03SWITCH LIMIT SPDT 10A 125V |
24 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 80gf | 0.587" (14.90mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VM3SCGF1803L06SWITCH LIMIT SPDT 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 240gf | 100gf | 0.807" (20.50mm) | 0.060" (1.5mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
VM3SAGF1803L00SWITCH LIMIT SPST-NO 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 100gf | 0.581" (14.75mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
D2QW-C002MSWITCH SNAP ACT SPST-NC 0.1A 30V |
20 |
|
Datasheet |
D2QW | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 153gf | - | 0.343" (8.7mm) | - | - | 0.115" (2.9mm) | -40°C ~ 85°C |
|
VM3SAGF1803L03SWITCH LIMIT SPST-NO 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 40gf | 0.602" (15.30mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VM3SBGF1803L04SWITCH LIMIT SPST-NC 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 190gf | 80gf | 0.602" (15.30mm) | 0.071" (1.8mm) | 0.040" (1.0mm) | 0.020" (0.5mm) | -40°C ~ 120°C |
|
V-10G2-1B4-KSWITCH SNAP ACTION SPDT 10A 250V |
67 |
|
Datasheet |
V | Tray | Active | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | IP40 | - | 60gf | 6.118gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|

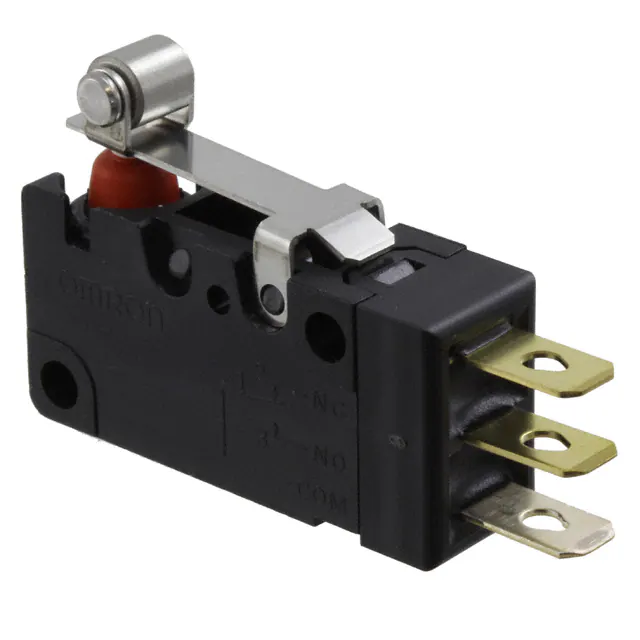

D2VW-01L02A-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
77 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
D2HWC203MR100SWITCH SNP ACT SPST-NO 0.1A 125V |
43 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
