Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MJ2-1705 PH-20SWITCH SNAP ACTION SPDT 20A 250V |
4,000 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 125gf | 33gf | - | 0.224" (5.7mm) | 0.045" (1.1mm) | 0.134" (3.4mm) | -25°C ~ 80°C |
|

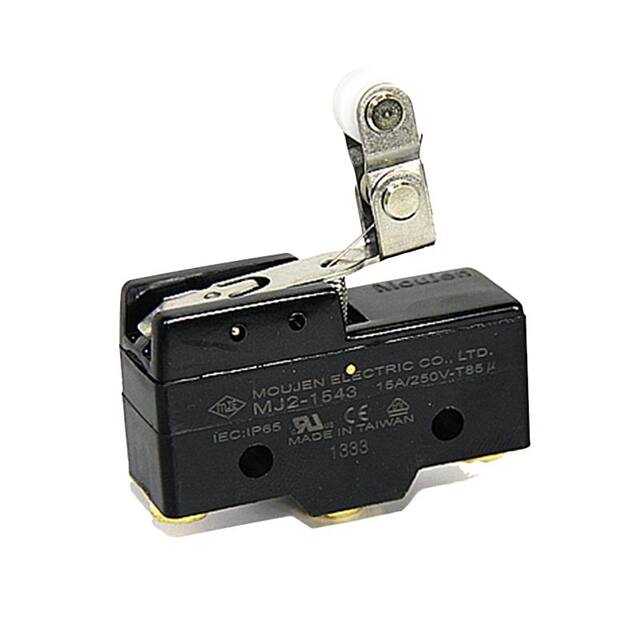

MJ2-1503 PHSWITCH SNAP ACTION SPDT 15A 250V |
4,000 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 170gf | 42gf | - | 0.106" (2.7mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
MJG--MJ2-1316 PH-20--T2SPDT Snap-Act Basic Switch |
16,500 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 20A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 540gf | 114gf | - | 0.090" (2.3mm) | 0.002" (0.06mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1317--T2SPDT Snap-Act Basic Switch |
16,500 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 540gf | 114gf | - | 0.094" (2.4mm) | 0.002" (0.06mm) | 0.138" (3.5mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1317 PH--T2SPDT Snap-Act Basic Switch |
16,500 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 540gf | 114gf | - | 0.094" (2.4mm) | 0.002" (0.06mm) | 0.138" (3.5mm) | -25°C ~ 80°C |
|
|
MJG--MEA-9111--T3PA66+GF SPDT-DB/DM Lim Switch |
14,400 |
|
- |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 0.4A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.078" (2.0mm) | 0.040" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
|
MJG--MEA-9111 G--T3PA66+GF SPDT-DB/DM Lim Switch |
14,400 |
|
- |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 0.4A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.078" (2.0mm) | 0.040" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
|
MJG--MEA-9112-P--T3PA66+GF SPDT-DB/DM Lim Switch |
14,400 |
|
- |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 0.4A (DC) | 250 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.078" (2.0mm) | 0.040" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
|
MJG--MEA-9112-P G--T3PA66+GF SPDT-DB/DM Lim Switch |
14,400 |
|
- |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 0.4A (DC) | 250 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.078" (2.0mm) | 0.040" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
|
MJG--MEA-9122-P G--T3PA66+GF SPDT-DB/DM Lim Switch |
14,400 |
|
- |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 0.4A (DC) | 250 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.078" (2.0mm) | 0.040" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
|
MJG--MEA-9122-P--T3PA66+GF SPDT-DB/DM Lim Switch |
14,400 |
|
- |
MEA | Bulk | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 0.4A (DC) | 250 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 500gf | 150gf | - | 0.078" (2.0mm) | 0.040" (1.0mm) | 0.157" (4.0mm) | -15°C ~ 70°C |
|
MJ3-511124SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | One Way Action Roller | 166gf | 128gf | - | 0.138" (3.5mm) | 0.016" (0.4mm) | 0.178" (4.5mm) | -25°C ~ 80°C |
|
MJ3-511113SWITCH SNAP ACTION SPDT 5A 250V |
700 |
|
Datasheet |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 400mA | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | - | 400gf | 300gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
|
MJG--MN-5169--T3SPDT Enclosed Basic Switch |
12,000 |
|
- |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 120gf | - | - | 0.984" (25.0mm) | - | 0.433" (11.0mm) | -10°C ~ 80°C |
|
|
MJG--MN-5166--T3SPDT Enclosed Basic Switch |
12,000 |
|
- |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Spring, Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 120gf | - | - | 0.984" (25.0mm) | - | 0.433" (11.0mm) | -10°C ~ 80°C |
|
|
MJG--MN-5161--T3SPDT Enclosed Basic Switch |
12,000 |
|
Datasheet |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 120gf | - | - | 0.984" (25.0mm) | - | 0.433" (11.0mm) | -10°C ~ 80°C |
|
|
MJG--MN-5110--T2SPDT Enclosed Basic Switch |
4,000 |
|
- |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 600gf | 100gf | - | 0.078" (2.0mm) | 0.031" (0.8mm) | 0.197" (5.0mm) | -10°C ~ 80°C |
|
|
MJG--MN-5100--T2SPDT Enclosed Basic Switch |
4,000 |
|
- |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 600gf | 100gf | - | 0.078" (2.0mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -10°C ~ 80°C |
|
|
MJG--MN-5124--T2SPDT Enclosed Basic Switch |
4,000 |
|
- |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 200gf | 60gf | - | 0.433" (11.0mm) | 0.094" (2.4mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
|
MJG--MN-5144--T2SPDT Enclosed Basic Switch |
4,000 |
|
- |
MN | Bulk | Active | SPDT | On-Mom | 10A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | Actuator Seal Boot | 280gf | 100gf | - | 0.256" (6.5mm) | 0.060" (1.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
