Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG13-B3LASWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
- |
DG | Bulk | Obsolete | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 45gf | - | 0.268" (6.80mm) | 0.071" (1.8mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|

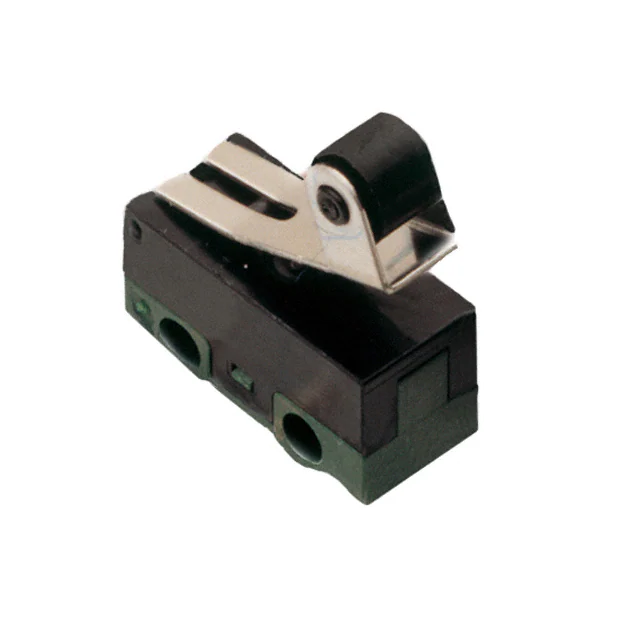

DG23-B3RASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
- |
DG | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 60gf | - | 0.488" (12.4mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
|
DH2C-B2AASWITCH SNAP ACTION SPDT 0.5A 30V |
0 |
|
- |
DH | Bulk | Obsolete | SPDT | On-On | 500mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 90gf | - | 0.220" (5.6mm) | 0.014" (0.35mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -25°C ~ 70°C |
|
|
Z-15GW OMISWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 70gf | 14gf | 0.748" (19.0mm) | - | 0.050" (1.27mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
|
Z-15GW-B OMISWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP00 | - | 70gf | 14gf | 0.748" (19.0mm) | - | 0.050" (1.27mm) | 0.219" (5.6mm) | -25°C ~ 80°C |
|
|
V-16-2C25SWITCH SNAP ACT SPST-NC 16A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 80°C |
|
|
D3V-113-1C4SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 35gf | - | 0.598" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
|
|
D3V-112-1C4SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.063" (1.6mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -25°C ~ 105°C |
|
|
D3V-116-1C4SWITCH SNAP ACT SPST-NO 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.000gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.063" (1.6mm) | -25°C ~ 105°C |
|
|
D3V-113-1A4SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.598" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
|
|
D3V-163-2C5SWITCH SNAP ACT SPST-NC 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 70gf | 6.118gf | 0.598" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 105°C |
|
|
D3V-165-2C5SWITCH SNAP ACT SPST-NC 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -25°C ~ 105°C |
|
|
D3V-6G6-1C3SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 30gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.063" (1.6mm) | -25°C ~ 105°C |
|
|
V-16-3A5SWITCH SNAP ACT SPST-NO 16A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 80°C |
|
|
D3V-115-1A4SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 120gf | 15gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -25°C ~ 105°C |
|
|
D3V-115-1C5SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 6A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -25°C ~ 105°C |
|
E78-30ASWITCH SNAP ACT DPDT 100MA 125V |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83163215SWITCH SNAP UNSEALED |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83123066SWITCH SNAP UNSEALED |
0 |
|
- |
83123 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | 1224gf | 153gf | 0.650" (16.5mm) | - | 0.016" (0.4mm) | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
83242021SWITCH SNAP SEALED |
0 |
|
- |
83240 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 408gf | 133gf | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
