Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZMSL00130T10LLCSWITCH SNAP ACTION SPDT 0.1A 12V |
0 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | - | 195gf | 55gf | 0.441" (11.2mm) | 0.152" (3.85mm) | 0.020" (0.5mm) | 0.084" (2.14mm) | -40°C ~ 85°C |
|
|
ZMSL00130T10PSCSWITCH SNAP ACTION SPDT 0.1A 12V |
0 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Straight | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 195gf | 55gf | 0.441" (11.2mm) | 0.152" (3.85mm) | 0.020" (0.5mm) | 0.084" (2.14mm) | -40°C ~ 85°C |
|
|
ZMSL00130T11JSCSWITCH SNAP ACTION SPDT 0.1A 12V |
0 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 160gf | 45gf | 0.717" (18.2mm) | 0.188" (4.8mm) | 0.027" (0.7mm) | 0.101" (2.57mm) | -40°C ~ 85°C |
|
ZMSH00130P00LLCSWITCH SNAP ACTION SPDT 0.1A 12V |
0 |
|
Datasheet |
ZMS | Tray | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.6mm) | 0.031" (0.8mm) | 0.012" (0.3mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
|
ZMSL00130P00PSCSWITCH SNAP ACTION SPDT 0.1A 12V |
0 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.6mm) | 0.031" (0.8mm) | 0.012" (0.3mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
|
ZMSL03130P00SSCSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZMS | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 130gf | 13gf | 0.415" (10.6mm) | 0.031" (0.8mm) | 0.012" (0.3mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
EA170-31100SWITCH LIMIT DPDT 20A 125V |
0 |
|
Datasheet |
EA170 | Box | Active | DPDT | On-Mom | 20A (AC), 5A (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -20°C ~ 90°C |
|
|
EA170-32100LMSW-CCW-DP-LNG MTG-UL |
0 |
|
Datasheet |
EA170 | Box | Active | DPDT | On-Mom | 20A (AC), 5A (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -20°C ~ 90°C |
|
|
TL8012-S1024SKM-GM1SWITCH SNAP ACTION LOCKING |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TL8012-S1024SKML-GM1SWITCH SNAP ACTION LOCKING |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

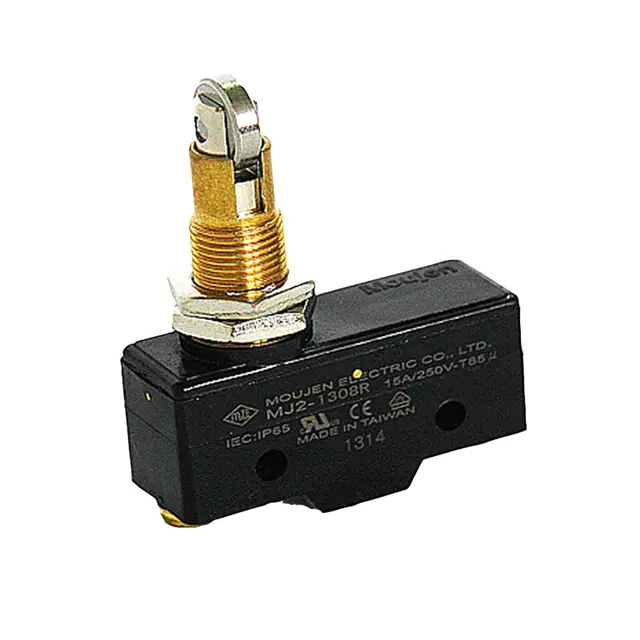

MJ2-1308R-PSPDT Snap-Act Basic Switch |
0 |
|
Datasheet |
MJ2 | Retail Package | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 250 V | 125 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP40 | - | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.141" (3.58mm) | -25°C ~ 80°C |
|
|
BZ-2RQ175-A2SWITCH SNAP ACTION N.O./N.C. SPD |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D443-P4AASWITCH SNAP ACTION SPDT NO/NC BU |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESE-22MH28SWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.110" (2.8mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-22MH27TSWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Datasheet |
ESE22 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.110" (2.8mm) | - | - | - | -10°C ~ 70°C |
|
|
ESE-11MH1SWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount, Right Angle | Gull Wing | - | - | 36gf | - | 0.146" (3.7mm) | - | - | - | -10°C ~ 70°C |
|
DM3AQF1003L00SWITCH SNAP ACT SPST-NO 3A 125V |
0 |
|
Datasheet |
DM3 | Bag | Obsolete | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 100gf | 50gf | 0.217" (5.5mm) | 0.028" (0.7mm) | 0.008" (0.2mm) | 0.004" (0.1mm) | -40°C ~ 85°C |
|
DM3AQF1003L03SWITCH SNAP ACT SPST-NO 3A 125V |
0 |
|
Datasheet |
DM3 | Bag | Obsolete | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 40gf | 15gf | 0.508" (12.9mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
DM3AQF1003L01SWITCH SNAP ACT SPST-NO 3A 125V |
0 |
|
Datasheet |
DM3 | Bag | Obsolete | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 35gf | 15gf | 0.281" (7.15mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
|
DM3AQF1003L04SWITCH SNAP ACT SPST-NO 3A 125V |
0 |
|
Datasheet |
DM3 | Bag | Obsolete | SPST-NO | Off-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 15gf | 0.354" (9.0mm) | 0.071" (1.8mm) | 0.025" (0.6mm) | 0.035" (0.9mm) | -40°C ~ 85°C |
