Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84SN-CC3-201SWITCH KEYPAD 1KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 1 | 1 x 1 | Non-Illuminated | Interchangeable | Rubber Overlay | Independent Switches (SPST) | Blank Buttons | - | - | Panel Mount, Front | Stud | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
86BB2-003SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|
|
86BC2-003SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
86 | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Common Bus | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front or Rear | Pin Header | - | -40°C ~ 80°C | IP40 | - | 0.01A @ 24VDC | - |
|
|
96AB2-102-F-ELSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96AB2-102-FSSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | Shielded |
|
|
96AB2-102-R-ELSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format | Black | White | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96AB2-152-F-ELSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format | Translucent | Black | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96AB2-152-R-ELSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format | Translucent | Black | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 50.80mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96AC2-152-FSWITCH KEYPAD 12KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Common Bus | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96BB2-002-FSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96BB2-006-F-ELSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96BB2-006-FSSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | Shielded |
|
|
96BB2-006-FS-ELSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | Shielded |
|
|
96BB2-006-R-ELSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 63.50mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
|
96BB2-006-RSSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Rear | Pin Header | Rectangular - 68.58mm x 63.50mm | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | Shielded |
|
|
96BB2-008-FSWITCH KEYPAD 16KEY 0.005A 12V |
0 |
|
Datasheet |
96 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black | White | Panel Mount, Front | Pin Header | - | -30°C ~ 80°C | IP40 | - | 0.005A @ 12VDC | - |
|
3KLW041103SWITCH KEYPAD 4KEY 0.05A 24V |
0 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Illuminated - White | Fixed | Polymer | Matrix | Arrows | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|

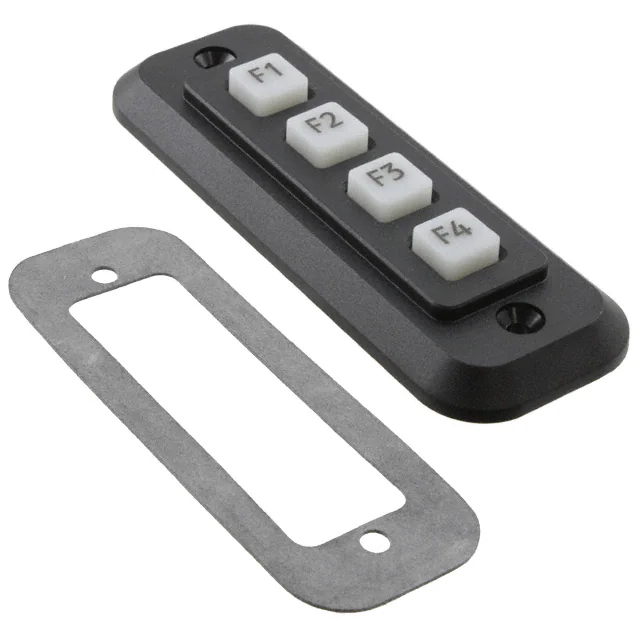

3KLW042103SWITCH KEYPAD 4KEY 0.05A 24V |
0 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Illuminated - White | Fixed | Polymer | Matrix | F1 ~ F4 | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|

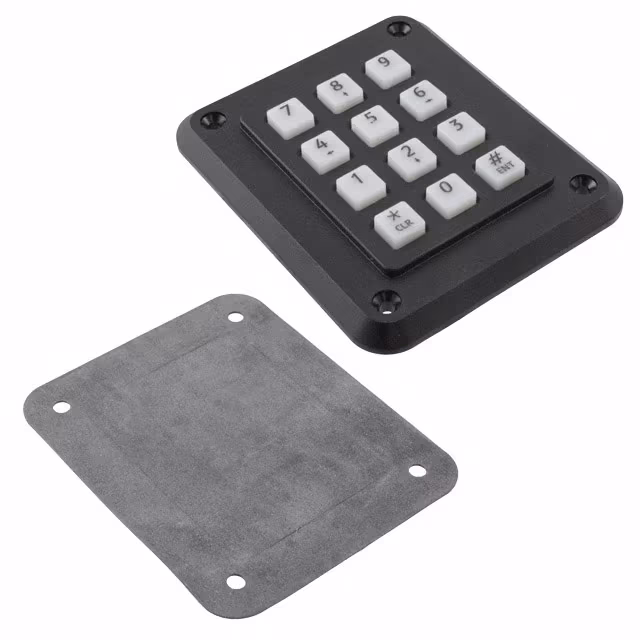

3KLW120103SWITCH KEYPAD 12KEY 0.05A 24V |
0 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated - White | Fixed | Polymer | Matrix | Calculator Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|

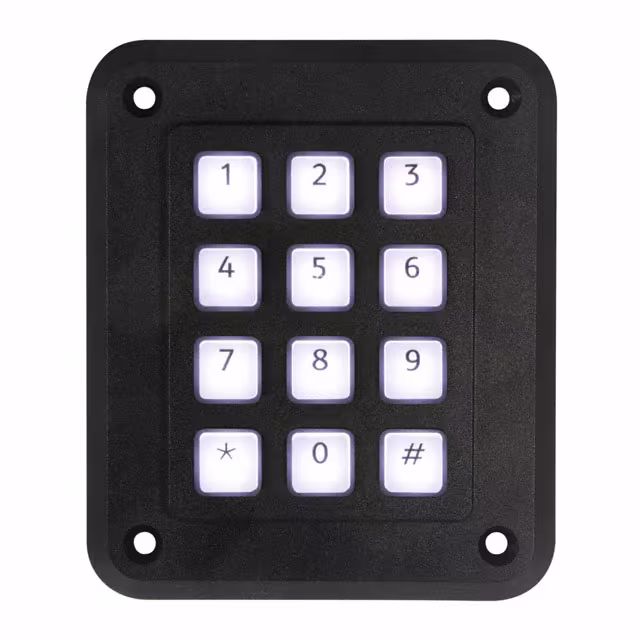

3KLW12T103SWITCH KEYPAD 12KEY 0.05A 24V |
0 |
|
Datasheet |
3000 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated - White | Fixed | Polymer | Matrix | Telephone Format | Gray | Translucent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 85°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
