Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3K015-G2-3RN3AGSWITCH KEYPAD 15KEY ILLUM |
0 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K015-G2-3RC3AGSWITCH KEYPAD 15KEY ILLUM |
0 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K115-G2-3RC3AGSWITCH KEYPAD 15KEY ILLUM |
0 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K115-G2-3RC3AWSWITCH KEYPAD 15KEY ILLUM |
0 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (J1939) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K115-G2-3RN3AWSWITCH KEYPAD 15KEY ILLUM |
0 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Targets | White | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
3K015-G2-3RN3AWSWITCH KEYPAD 15KEY ILLUM |
0 |
|
Datasheet |
3K | Bulk | Active | Snap Dome | 15 | 5 x 3 | Illuminated | Fixed | Rubber Overlay | CAN Bus (CANopen) | Blank Buttons | Black | Black | Panel Mount, Front | Connector | Circular - 57.15mm Dia | -40°C ~ 85°C | IP6K7/IP69K - Dust Tight, Water Resistant, Waterproof | - | - | - |
|
|
4K041103SWITCH KEYPAD 4KEY 0.05A 24V |
0 |
|
- |
4000 | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Arrows | Gray | White | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | 0°C ~ 70°C | - | - | 0.05A @ 24VDC | - |
|
|
4K042103SWITCH KEYPAD 4KEY 0.05A 24V |
0 |
|
- |
4000 | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | F1 ~ F4 | Gray | White | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | 0°C ~ 70°C | - | - | 0.05A @ 24VDC | - |
|
|
4K120103SWITCH KEYPAD 12KEY 0.05A 24V |
0 |
|
- |
4000 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format | Gray | White | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | 0°C ~ 70°C | - | - | 0.05A @ 24VDC | - |
|
|
4K12T103SWITCH KEYPAD 12KEY 0.05A 24V |
0 |
|
- |
4000 | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format | Gray | White | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | 0°C ~ 70°C | - | - | 0.05A @ 24VDC | - |
|
|
4K160103SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
- |
4000 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Calculator Format, A ~ C | Gray | White | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | 0°C ~ 70°C | - | - | 0.05A @ 24VDC | - |
|
4K16T103SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
- |
4000 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, A ~ C | Gray | White | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | 0°C ~ 70°C | - | - | 0.05A @ 24VDC | - |
|
GSRG040203SWITCH KEYPAD 4KEY 0.05A 24V |
0 |
|
Datasheet |
GFX Illuminator | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Illuminated - Red/Green | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -10°C ~ 75°C | IP54 - Dust Protected, Water Resistant | 1.8, 2.2 VDC | 0.05A @ 24VDC | - |
|

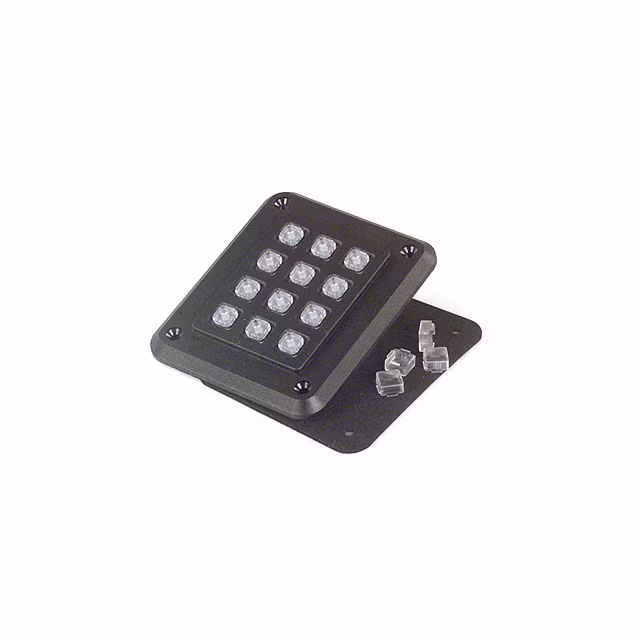

GSRG120203SWITCH KEYPAD 12KEY 0.05A 24V |
0 |
|
Datasheet |
GFX Illuminator | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated - Red/Green | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -10°C ~ 75°C | IP54 - Dust Protected, Water Resistant | 1.8, 2.2 VDC | 0.05A @ 24VDC | - |
|

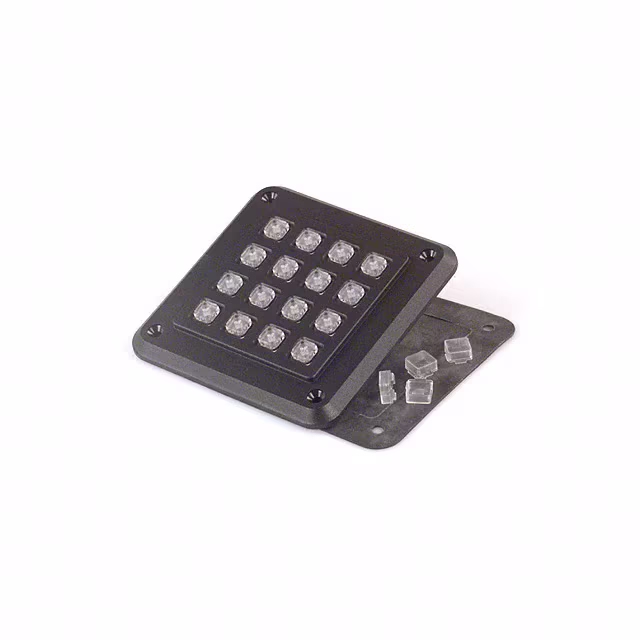

GSRG160203SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
Datasheet |
GFX Illuminator | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Illuminated - Red/Green | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -10°C ~ 75°C | IP54 - Dust Protected, Water Resistant | 1.8, 2.2 VDC | 0.05A @ 24VDC | - |
|
GSLW040203SWITCH KEYPAD 4KEY 0.05A 24V |
0 |
|
Datasheet |
GFX Illuminator | Bulk | Obsolete | Conductive Rubber | 4 | 1 x 4 | Illuminated - White | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Rectangular - 82.50mm x 25.50mm | -10°C ~ 75°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|

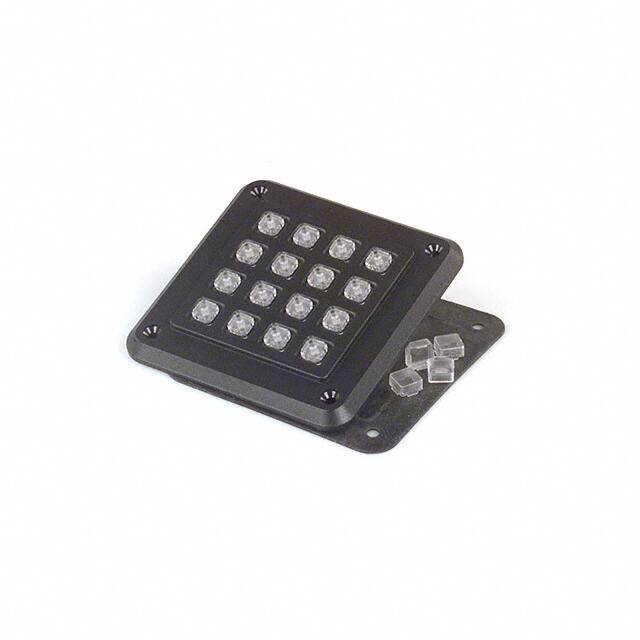

GSLW160203SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
Datasheet |
GFX Illuminator | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Illuminated - White | Interchangeable | Transparent Key Cap | Matrix | Customizable (Sold Separate) | - | Transparent | Panel Mount, Front or Rear | Pin Header | Square - 83.00mm² | -10°C ~ 75°C | IP54 - Dust Protected, Water Resistant | 3.5 VDC | 0.05A @ 24VDC | - |
|
1KL12T103SWITCH KEYPAD 12KEY 0.05A 24V |
0 |
|
Datasheet |
VR Illuminator | - | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated - Red/Green | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front or Rear | Pin Header | Rectangular - 83.00mm x 64.00mm | -40°C ~ 100°C | IP67 - Dust Tight, Waterproof | 1.8, 2.2 VDC | 0.05A @ 24VDC | Anti-Vandal |
|
|
87BC3-201SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
87 | Bulk | Obsolete | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Interchangeable | Transparent Key Cap | Common Bus | Customizable (Sold Separate) | - | White | Panel Mount, Front | Pin Header | - | -40°C ~ 80°C | - | - | 0.01A @ 24VDC | - |
|

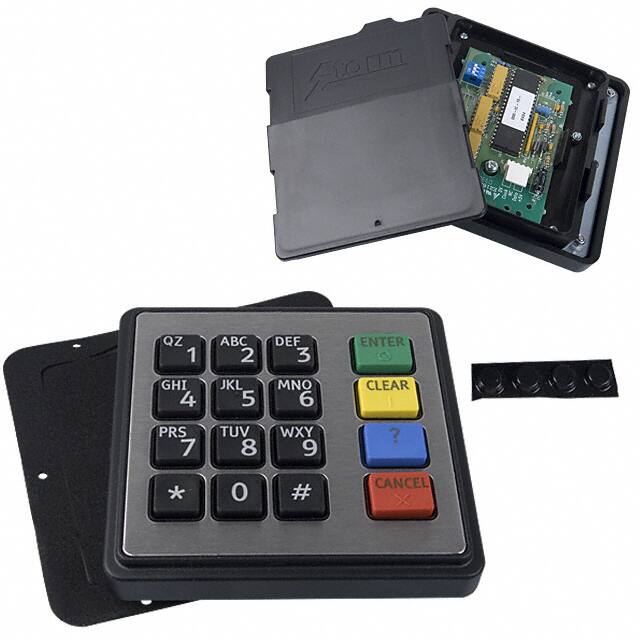

6000-220023SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
Datasheet |
6000 | Bulk | Obsolete | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 115.00mm x 109.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
