Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84LS-BC2-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format, A ~ F | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

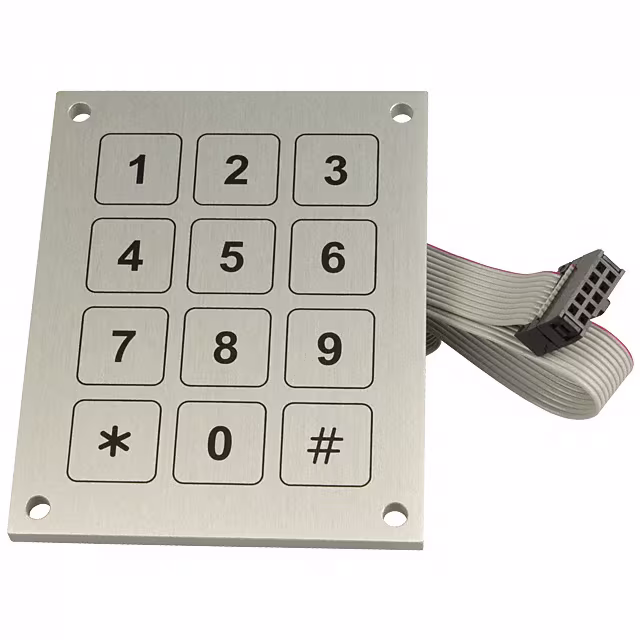

37F1-AB2-AC1SWITCH KEYPAD 12KEY 2A 24V |
0 |
|
Datasheet |
37F | Bulk | Active | Piezo | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front | Cable with Connector | - | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 2A @ 24VAC/DC | Anti-Vandal |
|
|
37F1-AB2-AP1SWITCH KEYPAD 12KEY 2A 24V |
0 |
|
Datasheet |
37F | Bulk | Active | Piezo | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Front | Pin Header | - | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 2A @ 24VAC/DC | Anti-Vandal |
|
|
37F3-AB2-AP1SWITCH KEYPAD 12KEY 2A 24V |
0 |
|
Datasheet |
37F | Bulk | Active | Piezo | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format | Black | Silver | Panel Mount, Rear | Pin Header | - | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 2A @ 24VAC/DC | Anti-Vandal |
|
37F1-BB2-AC1SWITCH KEYPAD 16KEY 2A 24V |
0 |
|
Datasheet |
37F | Bulk | Active | Piezo | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format, A ~ D | Black | Silver | Panel Mount, Front | Cable with Connector | - | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 2A @ 24VAC/DC | Anti-Vandal |
|
|
37F1-AC2-AC1SWITCH KEYPAD 12KEY 2A 24V |
0 |
|
Datasheet |
37F | Bulk | Active | Piezo | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Common Bus | Telephone Format | Black | Silver | Panel Mount, Front | Cable with Connector | - | -40°C ~ 85°C | IP68 - Dust Tight, Waterproof | - | 2A @ 24VAC/DC | Anti-Vandal |
|
TKU016CT-A100SWITCH KEYPAD 16KEY ILLUM |
0 |
|
Datasheet |
FLETAS | Tray | Obsolete | Capacitive | 16 | 4 x 4 | Illuminated - White | Fixed | Tempered Glass | Matrix | Telephone Format, Function Keys | Gray | White | Panel Mount, Front | Connector | Rectangular - 90.00mm x 88.00mm | -40°C ~ 60°C | - | - | - | - |
|

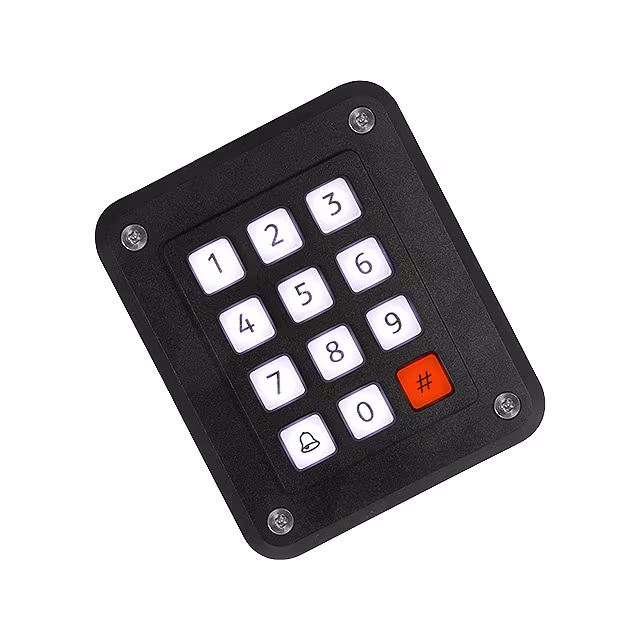

DX2KW203SWITCH KEYPAD 12 KEY 3A 120V |
0 |
|
Datasheet |
StrikeMaster ES | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Illuminated | Fixed | Transparent Key Cap | Non-Standard (Controller Needed) | Telephone Format | Black | White | Panel Mount, Front | Screw Terminal | - | - | IP65 - Dust Tight, Water Resistant | - | 3A @ 120VAC | - |
|
FT4K0903SWITCH KEYPAD 20KEY 0.05A 24V |
0 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Illuminated | Interchangeable | Transparent Key Cap | Matrix | Telephone Format, A ~ D | Black | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | Display |
|
AT02-430H13SWITCH KEYPAD 2KEY ILLUM |
0 |
|
Datasheet |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
AT02-530H13SWITCH KEYPAD 2KEY ILLUM |
0 |
|
Datasheet |
AudioComm | Bulk | Active | Conductive Rubber | 2 | 2 x 1 | Illuminated | - | Polymer | USB | - | - | White | Panel Mount, Front | USB Socket | - | -20°C ~ 70°C | IP65 - Dust Tight, Water Resistant | - | - | Audio Enabled |
|
|
FT1K0503SWITCH KEYPAD 20KEY 0.05A 24V |
0 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format, A ~ C | Black | Silver | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

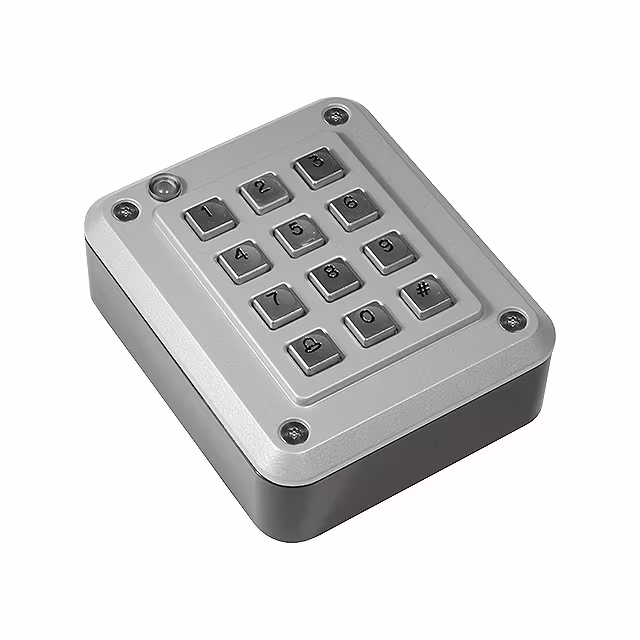

DX1KT203SWITCH KEYPAD 12KEY 3A 120V |
0 |
|
Datasheet |
StrikeMaster ES | Bulk | Obsolete | Conductive Rubber | 12 | 3 x 4 | Non-Illuminated | Fixed | Metal | Non-Standard (Controller Needed) | Telephone Format | Black | Silver | Panel Mount, Front | Screw Terminal | - | - | IP65 - Dust Tight, Water Resistant | - | 3A @ 120VAC | Anti-Vandal |
|
|
84BLN-AB1-112CNSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated - Green | Fixed | Rubber Overlay | Matrix | Telephone Format | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | - |
|
|
84BL-AB1-112BSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated - Yellow | Fixed | Rubber Overlay | Matrix | Telephone Format | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | Shielded |
|
|
84BLN-AB2-112ANSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated - Red | Fixed | Rubber Overlay | Matrix | Telephone Format | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | - |
|
|
84BLN-AB2-113ANSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated - Red | Fixed | Rubber Overlay | Matrix | Telephone Format | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | - |
|
|
84BL-AB1-113CNSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 12 | 3 x 4 | Illuminated - Green | Fixed | Rubber Overlay | Matrix | Telephone Format | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | Shielded |
|
FT1K0803SWITCH KEYPAD 20KEY 0.05A 24V |
0 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Illuminated | Fixed | Metal | Matrix | Telephone Format, A ~ C | Black | Silver | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal, Display |
|
|
84BLN-BB2-016ANSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84BL | Bulk | Active | Snap Dome | 16 | 4 x 4 | Illuminated - Red | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ D | Translucent | Black | Panel Mount, Front | Pin Header | - | - | IP67 - Dust Tight, Waterproof | 1.95 VDC | 0.01A @ 24VDC | - |
