BOM Upload
Keypad Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Type | Number of Keys | Matrix (Columns x Rows) | Illumination | Legend Type | Key Type | Output Type | Legend | Legend Color | Key Color | Mounting Type | Termination Style | Panel Cutout Dimensions | Operating Temperature | Ingress Protection | Illumination Voltage (Nominal) | Contact Rating @ Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84S-BB2-016SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-AC2-101SWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Common Bus | Blank Buttons | - | - | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-BC2-000-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | - | Rubber Overlay | Common Bus | No Buttons | - | - | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84LS-AC2-113-NSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84SN-BB2-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
84S-BB1-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-BB2-016-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Matrix | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-AC2-101-NSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Interchangeable | Rubber Overlay | Common Bus | Blank Buttons | - | - | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84SN-AC2-112-NSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
84S-AC2-112-NSWITCH KEYPAD 12KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 12 | 3 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84LSN-BC2-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format, A ~ F | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
84S-BC2-001SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | No Legend | - | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84LS-BC2-016-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84LS | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format, A ~ D | White | Black | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84S-BC2-016SWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | Telephone Format, A ~ D | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|
|
84SN-BC2-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
* | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | - |
|
|
84S-BC2-014-NSWITCH KEYPAD 16KEY 0.01A 24V |
0 |
|
Datasheet |
84S | Bulk | Active | Snap Dome | 16 | 4 x 4 | Non-Illuminated | Fixed | Rubber Overlay | Common Bus | 0 ~ 9, A ~ F | Black | White | Panel Mount, Front | Pin Header | - | -55°C ~ 85°C | IP67 - Dust Tight, Waterproof | - | 0.01A @ 24VDC | Shielded |
|

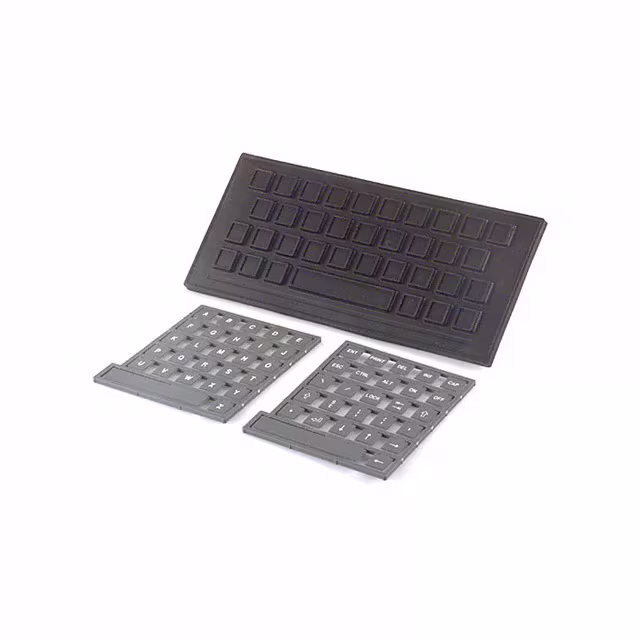

70360203SWITCH KEYPAD 36KEY 0.05A 24V |
0 |
|
Datasheet |
700 | Bulk | Active | Conductive Rubber | 36 | - | Non-Illuminated | Interchangeable | Rubber Overlay | Matrix | Customizable (Included) | White | Gray | Panel Mount, Front or Rear | Pin Header | - | -55°C ~ 125°C | IP67 - Dust Tight, Waterproof | - | 0.05A @ 24VDC | Black Housing |
|
|
FT4K1003SWITCH KEYPAD 20KEY 0.05A 24V |
0 |
|
- |
5000 | Bulk | Active | Conductive Rubber | 20 | 4 x 5 | Non-Illuminated | Interchangeable | Transparent Key Cap | Matrix | Telephone Format, A ~ D | Black | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 169.00mm x 111.00mm | -20°C ~ 60°C | IP54 - Dust Protected, Water Resistant | - | 0.05A @ 24VDC | - |
|

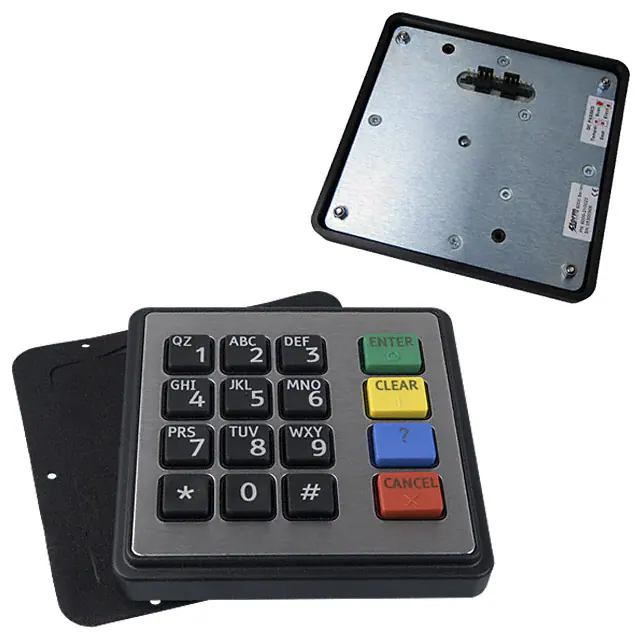

6000-210023SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
Datasheet |
6000 | Bulk | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Polymer | Matrix | Telephone Format, Function Keys | Black, White | Multiple | Panel Mount, Rear | Pin Header | Rectangular - 115.00mm x 109.50mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
|

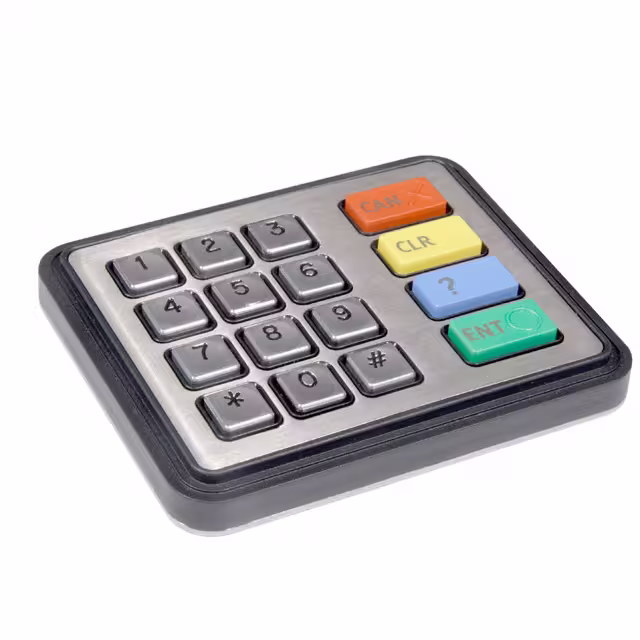

8616-310023SWITCH KEYPAD 16KEY 0.05A 24V |
0 |
|
Datasheet |
SF6000 | Box | Active | Conductive Rubber | 16 | 4 x 4 | Non-Illuminated | Fixed | Metal | Matrix | Telephone Format, Function Keys | Black | Multiple | Panel Mount, Front or Rear | Pin Header | Rectangular - 97.00mm x 79.00mm | -20°C ~ 60°C | IP65 - Dust Tight, Water Resistant | - | 0.05A @ 24VDC | Anti-Vandal |
